Home ProductsCarbide Flat End Mill

High Speed Steel Tungsten Carbide End Mill Cutter

Certification
China Zhuzhou Grewin Tungsten Carbide Tools Cor., Ltd certification
China Zhuzhou Grewin Tungsten Carbide Tools Cor., Ltd certification
I'm Online Chat Now

High Speed Steel Tungsten Carbide End Mill Cutter

High Speed Steel Tungsten Carbide End Mill Cutter
High Speed Steel Tungsten Carbide End Mill Cutter High Speed Steel Tungsten Carbide End Mill Cutter High Speed Steel Tungsten Carbide End Mill Cutter High Speed Steel Tungsten Carbide End Mill Cutter

Large Image :  High Speed Steel Tungsten Carbide End Mill Cutter

Product Details:

Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirement

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Detailed Product Description
Customized: Customized Type: Cutting Tool
Material: Tungsten Steel Coating: Coating
Tooth Form: Spiral Tooth HRC: 50-55, 55-65
Shipment: FedEx, DHL, TNT, UPS, EMS, Etc. Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Delivery Time: 7-15days
High Light:

flat nose end mill

,

flat bottom end mill



High Speed Steel Tungsten Carbide 4 Flute Milling Tools End Mill Cutter



1.Description:

Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7





Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Grinding equipment: WALTER, ANCA, ROLLOMATIC
Testing equipment: ZOLLER





2.Dates:

Specifications of Flat End Mill (mm) Cutting Cutting Length Shank A.O.L Flute
d l D L F
1.0×2.5×4D×50L×4F 1 2.5 4 50 4F
1.5×3.75×4D×50L×4F 1.5 3.75 4 50 4F
2.0×5.0×4D×50L×4F 2 5.0 4 50 4F
2.5×6.25×4D×50L×4F 2.5 6.25 4 50 4F
3.0×7.5×4D×50L×4F 3 7.5 4 50 4F
3.5×8.75×4D×50L×4F 3.5 8.75 4 50 4F
4.0×10×4D×50L×4F 4 10 4 50 4F
5.0×12.5×5D×50L×4F 5 12.5 5 50 4F
5.0×12.5×6D×50L×4F 5 12.5 6 50 4F
6.0×15×6D×50L×4F 6 15 6 50 4F
8.0×20×8D×60L×4F 8 20 8 60 4F
9.0×20×10D×75L×4F 9 20 10 75 4F
10.0×25×10D×75L×4F 10 25 10 75 4F
12.0×30×12D×75L×4F 12 30 12 75 4F
14.0×35×14D×100L×4F 14 35 14 100 4F
16.0×40×16D×100L×4F 16 40 16 100 4F
18.0×45×18D×100L×4F 18 45 18 100 4F
20.0×50×20D×100L×4F 20 50 20 100 4F







3. Payment
T/T, Western Union, Paypal (Choose your convenient way)




4. Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China.
(choose your convenient way)



5. Delivery time
15days




6.Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.

OEM Services Offered

Customized Tools Offered

Free laser marking on tools and boxes Offered

Fast delivery time and Convenient Transportations. We have FedEx,DHL,TNT,UPS,EMS,etc.

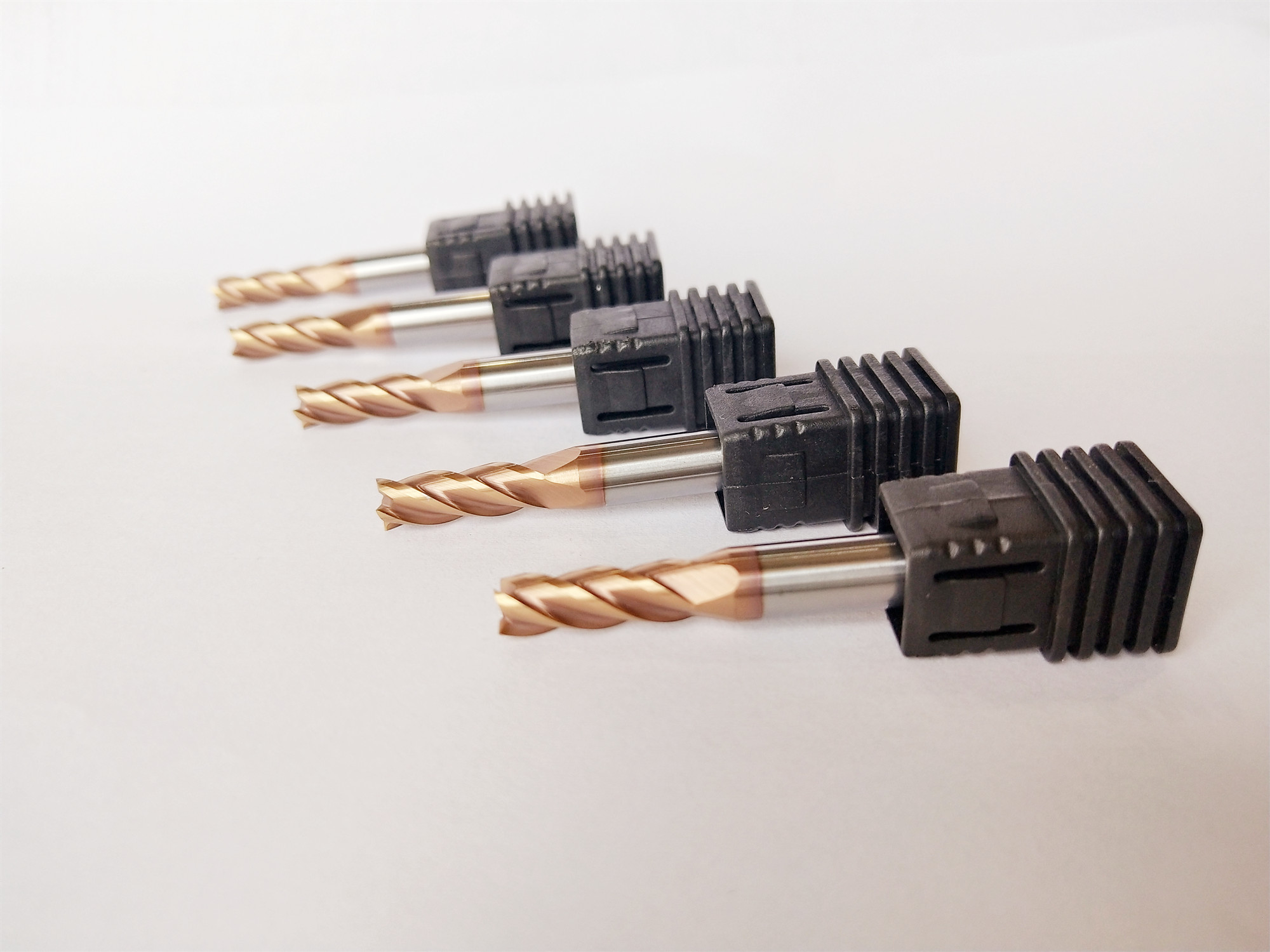

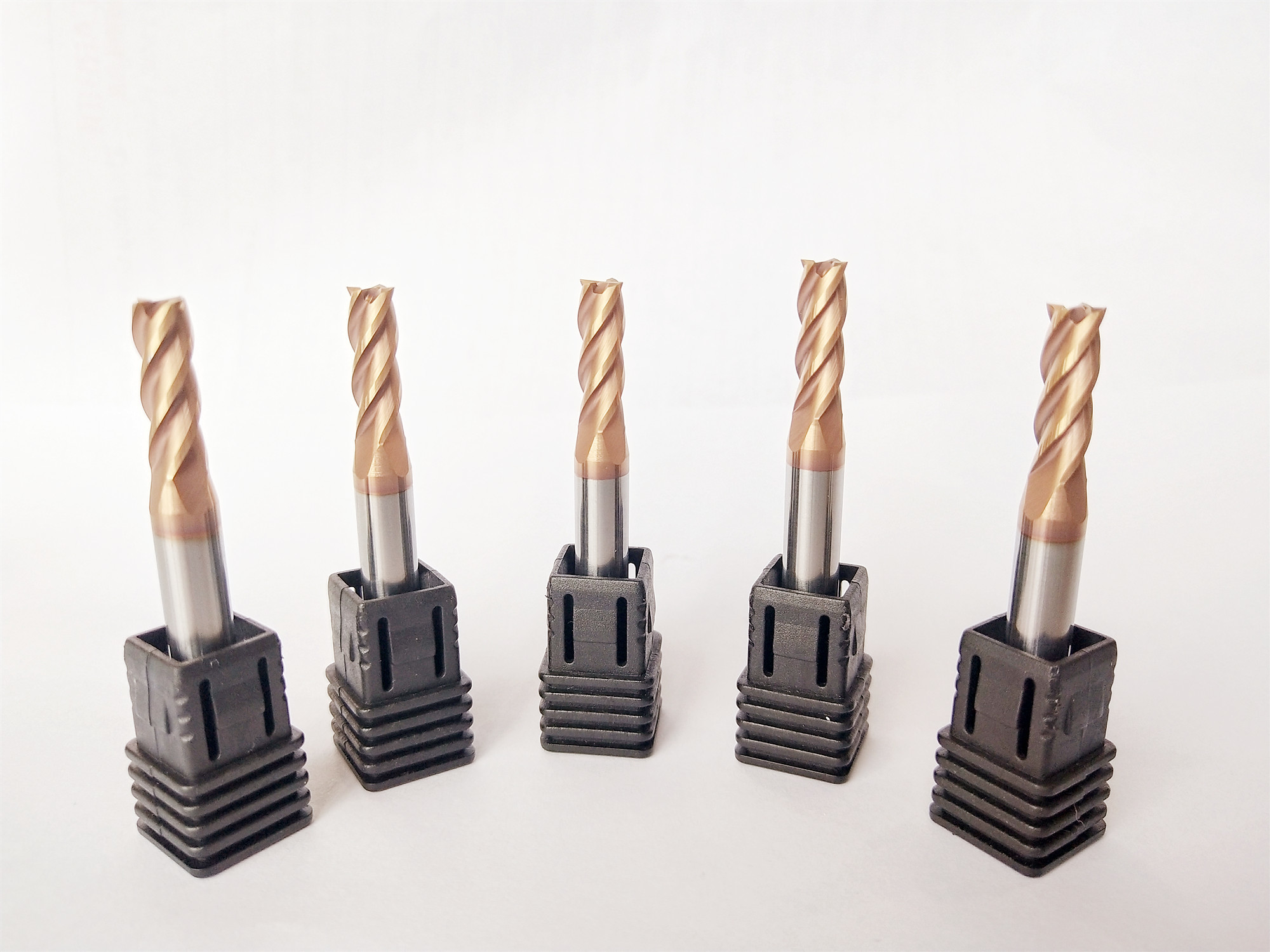

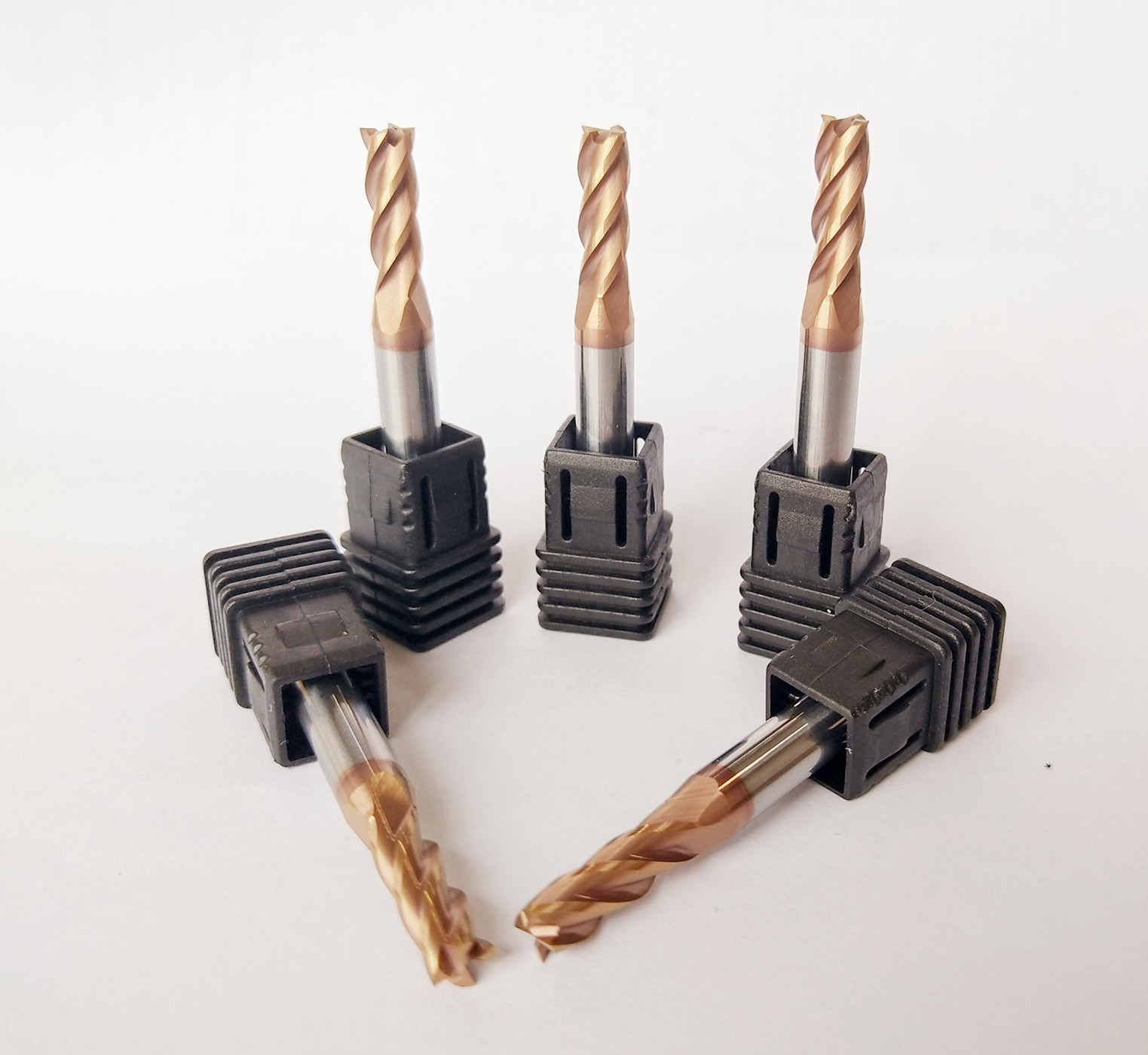

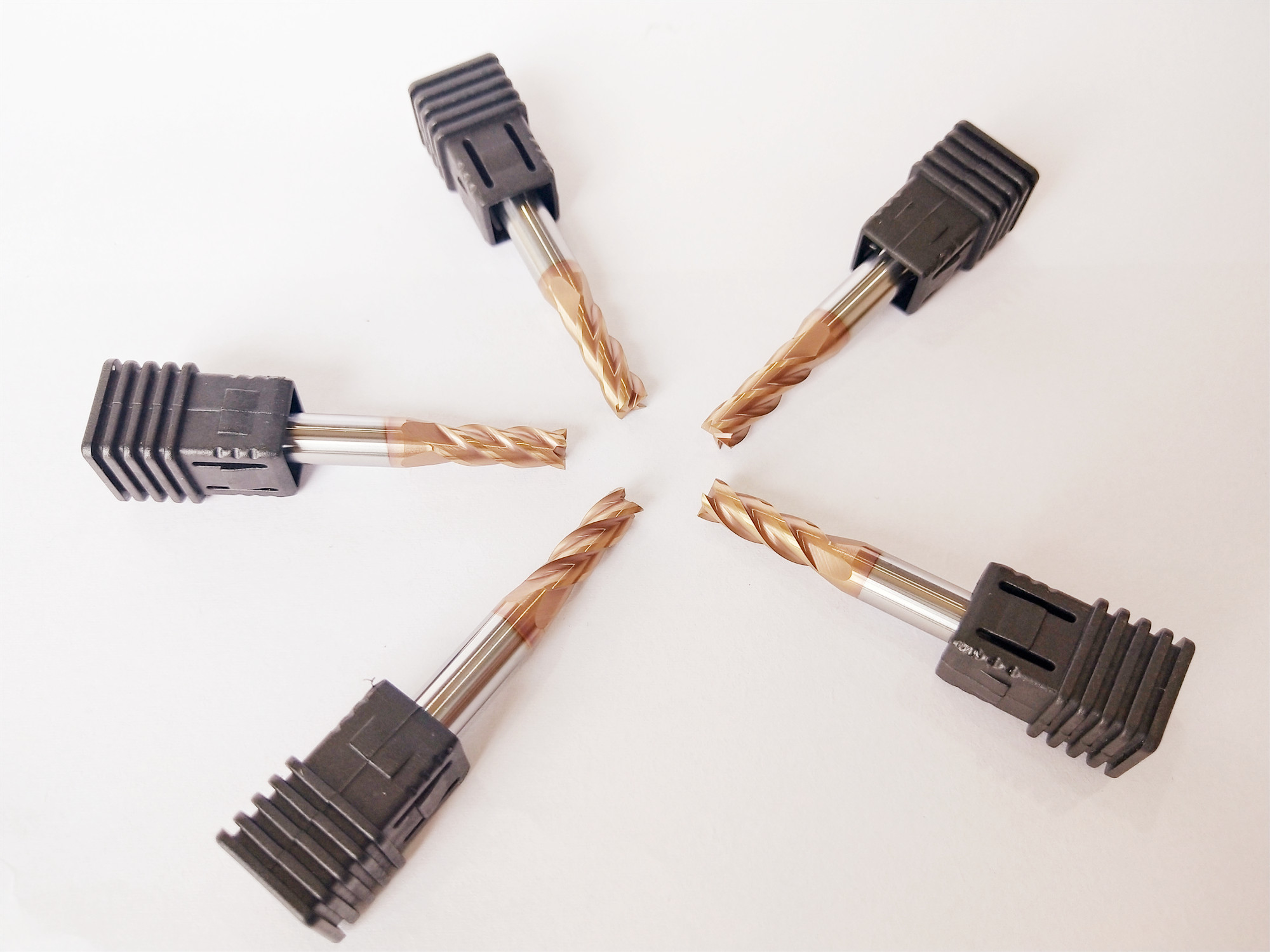

7. Product Show

High Speed Steel Tungsten Carbide End Mill Cutter 0

High Speed Steel Tungsten Carbide End Mill Cutter 1





8. Company Introduction
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
The products we can offer:
Tungsten Carbide products: carbide inserts, tool holders, milling cutters, end mills, drill bits, reamers, wear parts, router bits, and other carbide products.
HSS products: machine taps, drill bits, end mills, gear hobs and other OEM products.
Accessories of CNC toolholders.





Any of your inquiry, we are always welcome!
