|Coating Opitional:||Altin,Tialn,Tisin,Naco,Diamond||Usage:||General High Speed Cutting|
|Flute Diameter:||0.5mm-25mm Or Customized||Length:||50mm-150mm Or Customized|
|HRC:||45-55 55-65,etc||Flutes Number:||2, 3, 4, 5, 6|
|Controlling Model:||CNC||Flexural Strength:||2500-4000n/mm2|
|Trial Order:||Accepted||Transport Package:||Plastic Box|

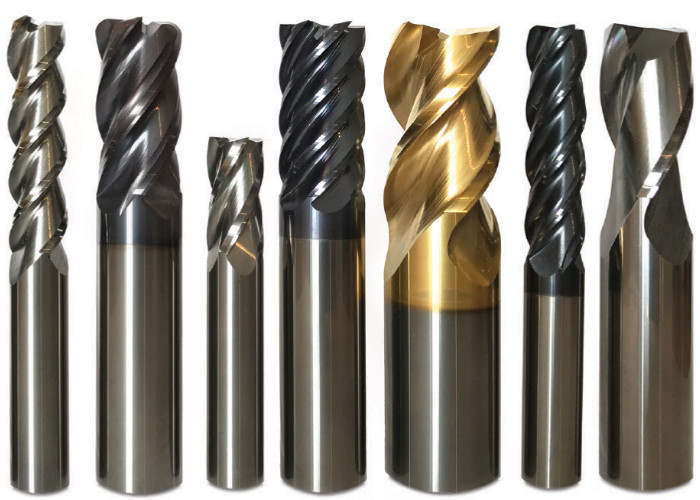

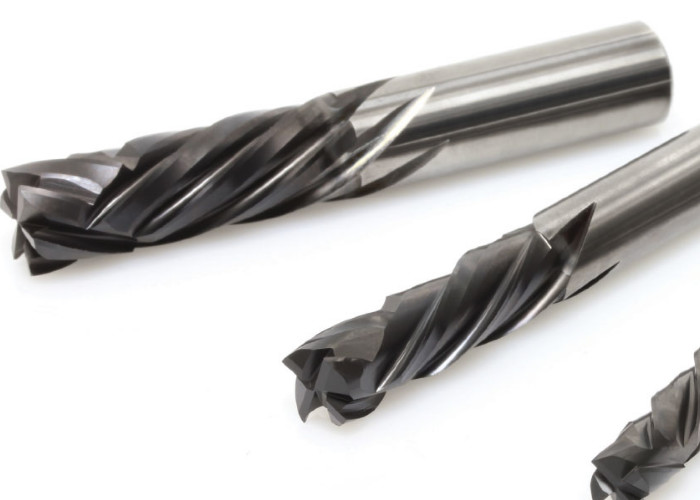

square end mill cutter,
square cutting end mill
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Grinding equipment: WALTER, ANCA, ROLLOMATIC
Testing equipment: ZOLLER
Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 94 HRA;
b. Density greater than or equal to 14.6g/cm³;
c. TRS greater than or equal to 4100 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A00/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;
Universal High Performance Coating AlCrSiN
Characteristics and Function
1,Productivity increase due to significantly higher cutting speed and feed for applications in a wide range of materials.Sighificantly enhanced productivity.
2,Particular design of structure brings good balance between toughness,thermo-shock stability and residual stress.
The structure of Iphone 8 is used 316L stainless steel. This material is more difficult to cut than the 304 stainless steel. Especially the suppliers of Apple Inc. use MIM processing of small accessories, the previous endmills has been unable to meet their needs. Our team has adopted special ultra-fine grain tungsten carbide, special spiral angle, special cutting edge design and Nano AlCrSinN, the product has a perfect sucess, and has won high praise from FOXCNN and MiYa.
Suitable for rough milling, semi-finishing and finishing of stainless steel (<280HB).
Design for the small depth/large width in face milling, large depth/small width in side milling, less than 0.3D in shallow slotting.
Water soluable or oil based are the best cooling methods.
Introduction of the carbide materials of the End mill
|Carbide Grade||Technical Details of tungsten carbide rod|
|10U||Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um|
|12U||Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um|
|K40||Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um|
|K44||Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um|
The materials to be cut
|Carbide Grade||HRC of End mill||Materials to be cut|
|10U||HRC45-50||For cutting the materials under HRC35|
|12U||HRC55-58||For cutting the materials under HRC50|
|K40||HRC60-62||For cutting the materials under HRC55|
|K44||HRC65-70||For cutting the materials under HRC63|
|Carbide Grade||HRC of End mill||Corresponding Coating|
Introduction of carbide materials of the End mill
|Coating||Color||Coating Temperature||Thickness (um)||HV||Application Temperature||Friction coefficient|
|AiCrN||Silver Gray||<480 °C||2-2.5||2500||700 °C||0.3|
More than 2000 products are available. Assembly line production, high standard and strict requirements.?
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
