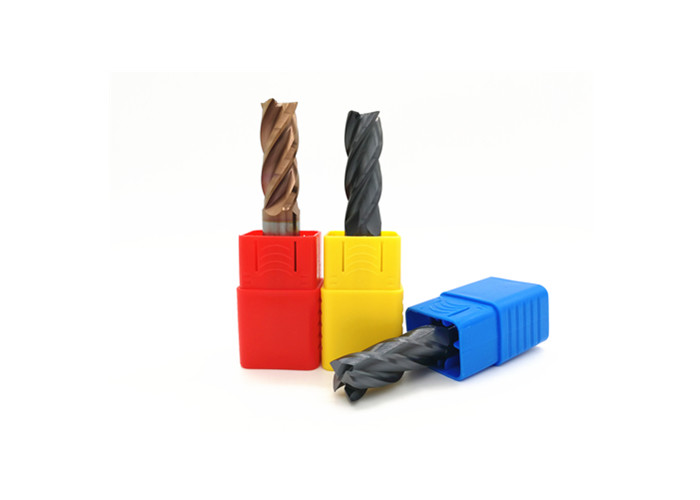

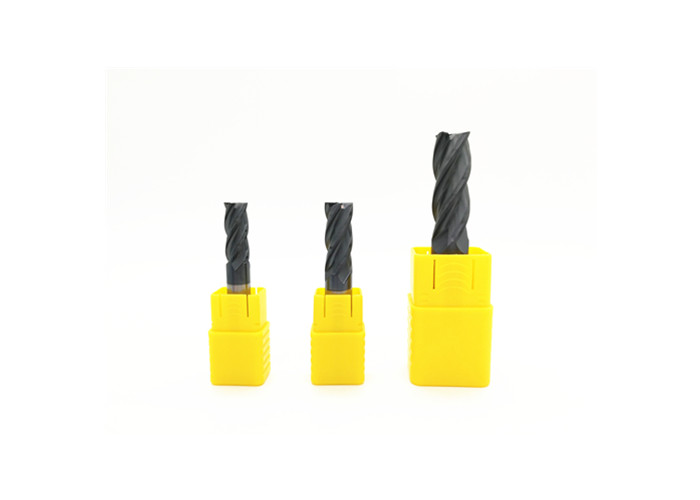

Tungsten Carbide Square And Flat Milling Cutters for Machining Tools
The materials to be cut
Carbide Grade | HRC of End mill | Materials to be cut |
10U | HRC45-50 | For cutting the materials under HRC35 |
12U | HRC55-58 | For cutting the materials under HRC50 |
K40 | HRC60-62 | For cutting the materials under HRC55 |
K44 | HRC65-70 | For cutting the materials under HRC63 |
Corresponding Coating
Carbide Grade | HRC of End mill | Corresponding Coating |
10U | HRC45-50 | AlTiN |
12U | HRC55-58 | TiAlN |
K40 | HRC60-62 | TiSlN |
K44 | HRC65-70 | Nano |
Introduction of carbide materials of the End mill
AlTiN | TiAlN | TiSlN | Nano | |
Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |
