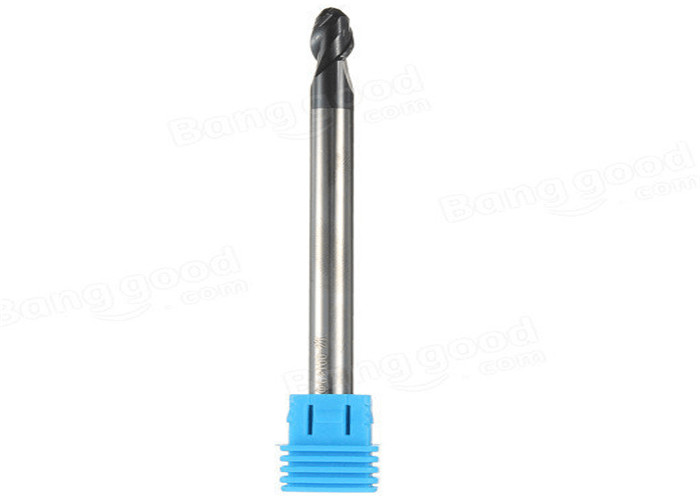

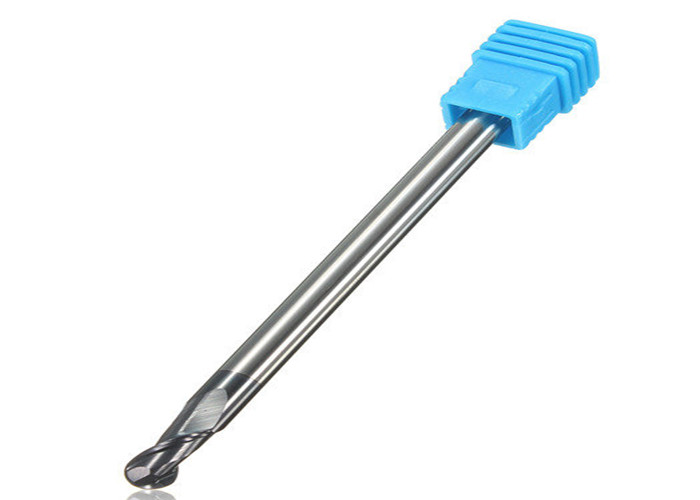

Carbide Solid Ball Nose End Mills Milling Tools Black / Silver / Blue Color
1. Raw Material
(1) We accept Mix coated in the same model number, Also one batch with different coating and types.
(2) AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!
2.Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC70
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7
| HRC45 | HRC55 | HRC60 | HRC65 |
| Grain Size: 0.6um Co: 10 % Flexural strength: 3350N/mm2 |
Grain Size: 0.6um Co: 10 % Flexural strength: 4000N/mm2 |
Grain Size: 0.5um Co: 12 % Flexural strength: 4300N/mm2 |
Grain Size: 0.4um Co: 12.5 % Flexural strength: 4300N/mm2 |
3. Standard Sizes
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
4. Strict quality checking
(1) Check each piece. Guarantee the tolerance -0.02mm
(2) Exact helix angle and finished surface
(3) Goods pass SGS and ISO9001
5. Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)
6. Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days
9.Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
