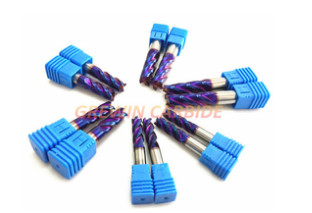

6X10X50mm Carbide Square End Mill For Tungsten Carbide Machine Tools CNC
Product Description
Main products: We have different kinds of solid carbide end mill: 2/3/4/6 flutes, flat/square/plain end mill, ball nose end mill, corner radius end mill, stainless steel end mill, aluminum end mill, roughing end mill, tapered end mill, Micro-dia end mill, non-standard end mill, etc.
Other products: drill, reamer, tool holder, ER collet, boring cutter, carbide insert, cutter head, etc.
Application and usage: Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
2.Our advantages
Good material Grade: HRC45/55/60/65/68.
Workmanship: Made by the latest 5-Axis Grinder Machine imported from Taiwan. Compared with other end mill factories, our products are more sharp and have longer life. We will supply you with high precision standard and non-standard cutters.
Competitive price and good quality: We promise that we only quote a reasonable price, in addition, the quality must make you satisfied.
Short delivery time: We have enough CNC machine imported from abroad, so we can shipment efficiently.
Types: We have square end mill, ball nose end mill, corner radius end mill and aluminum alloy end mill.
Size: Diameter 0.2mm-20mm standard and non-standard 2-4 flutes, deep groove, round head, end angle R, oblique flute (tapered), long flute end mill.
3.Coating Types
| Main Coating Types | ||||
| Item | AITiN | TiAIN | TiSIN | nAcO |
| Hardness (HV) | 3200 | 2800 | 3600 | 42(GAP) |
| Thickness (μm) | 2.5-3.0 | 2.5-3.0 | 3.0 | 3.0 |
| Oxidation (°) | 900 | 800 | 1000 | 1200 |
| Friction | 0.30 | 0.30 | 0.45 | 0.40 |
| Color | Black | Voilet | Copper | Blue |
4.Material
| Item | 6 Flutes Solid Carbide Reamers Straight Reamer Coated Reamer |
| Tolerance | H6 |
| carbide end mill Angle | Helix angle 35 °, 45 ° |
| carbide end mill Suitable for | Mould steel , Cast Iron , Titanium alloy , Copper , and Aluminium etc |
| HRC | HRC45 , HRC50, HRC55 , HRC60 , HRC65 |
| MG Grain size | 0.7um , 0.6um , 0.5um , 0.4um |
| CO | 10% , 10% , 12% , 10% |
