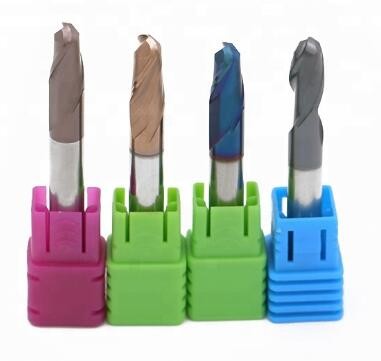

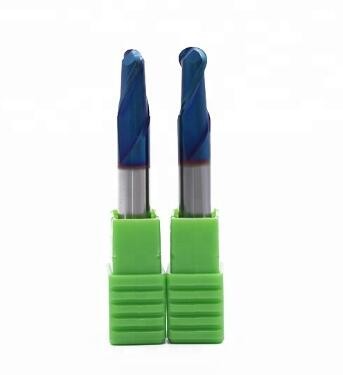

2 Flutes Tungsten Solid Carbide Ball Nose End Mill With HRC 45-68
Ball Nose Carbide End Mill offered allows perfect execution of the work and feature centre cutting straight flutes. With these end mills suitable for slot and form milling applications, these tools and construction material are specially designed for HSC and made available with 2/4 fluted center cutting, CNC grinding and helix angle of 30 degrees. These can be offered with different cutting & shank diameters and feature different flute and overall lengths.
Features:
Allows perfect execution of the work
Featuring centre cutting straight flutes
These Ball nose end mills are suitable for slot and form milling applications
Tools and construction material specially designed for HSC
Can be offered with different cutting & shank diameters
Also featuring different flute lengths and overall lengths
Applications:
For milling of cast iron
Malleable cast iron
Steel & steel casting
Heat resisting steel
Plastics in design & profile manufacturing
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.
|
Code No.
|
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 2GW2-01002050 | 1 | 2 | 50 | 4 | 2 |
| 2GW2-01504050 | 1.5 | 3 | 50 | 4 | 2 |
| 2GW2-02050500 | 2 | 4 | 50 | 4 | 2 |
| 2GW2-02507050 | 2.5 | 5 | 50 | 4 | 2 |
| 2GW2-02008050 | 3 | 6 | 50 | 4 | 2 |
| 2GW2-04010050 | 4 | 8 | 50 | 4 | 2 |
| 2GW2-04015075 | 4 | 8 | 75 | 4 | 2 |
| 2GW2-04020100 | 4 | 8 | 100 | 4 | 2 |
| 2GW2-05012050 | 5 | 10 | 50 | 6 | 2 |
| 2GW2-06015050 | 6 | 12 | 50 | 6 | 2 |
| 2GW2-06020075 | 6 | 12 | 75 | 6 | 2 |
| 2GW2-06020100 | 6 | 12 | 100 | 6 | 2 |
| 2GW2-06020060 | 8 | 16 | 60 | 8 | 2 |
| 2GW2-08025075 | 8 | 16 | 75 | 8 | 2 |
| 2GW2-08025100 | 8 | 16 | 100 | 8 | 2 |
| 2GW2-010025075 | 10 | 20 | 75 | 10 | 2 |
| 2GW2-010040100 | 10 | 20 | 100 | 10 | 2 |
| 2GW2-012020075 | 12 | 24 | 75 | 12 | 2 |
| 2GW2-012040100 | 12 | 24 | 100 | 12 | 2 |
| 2GW2-014020080 | 14 | 28 | 80 | 14 | 2 |
| 2GW2-014100100 | 14 | 28 | 100 | 14 | 2 |
| 2GW2-016040100 | 16 | 32 | 100 | 16 | 2 |
| 2GW2-018040100 | 18 | 36 | 100 | 18 | 2 |
| 2GW2-020040100 | 20 | 40 | 100 | 20 | 2 |
| 2GW2-06040150 | 6 | 12 | 150 | 6 | 2 |
| 2GW2-08050150 | 8 | 16 | 150 | 8 | 2 |
| 2GW2-010050150 | 10 | 20 | 150 | 10 | 2 |
| 2GW2-012050150 | 12 | 24 | 150 | 12 | 2 |
| 2GW2-014060150 | 14 | 28 | 150 | 14 | 2 |
| 2GW2-016060150 | 16 | 32 | 150 | 16 | 2 |
| 2GW2-018060150 | 18 | 36 | 150 | 18 | 2 |
| 2GW2-020060150 | 20 | 40 | 150 | 20 | 2 |
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.
|
Code No.
|
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 2GW2-01002050 | 1 | 2 | 50 | 4 | 2 |
| 2GW2-01504050 | 1.5 | 3 | 50 | 4 | 2 |
| 2GW2-02050500 | 2 | 4 | 50 | 4 | 2 |
| 2GW2-02507050 | 2.5 | 5 | 50 | 4 | 2 |
| 2GW2-02008050 | 3 | 6 | 50 | 4 | 2 |
| 2GW2-04010050 | 4 | 8 | 50 | 4 | 2 |
| 2GW2-04015075 | 4 | 8 | 75 | 4 | 2 |
| 2GW2-04020100 | 4 | 8 | 100 | 4 | 2 |
| 2GW2-05012050 | 5 | 10 | 50 | 6 | 2 |
| 2GW2-06015050 | 6 | 12 | 50 | 6 | 2 |
| 2GW2-06020075 | 6 | 12 | 75 | 6 | 2 |
| 2GW2-06020100 | 6 | 12 | 100 | 6 | 2 |
| 2GW2-06020060 | 8 | 16 | 60 | 8 | 2 |
| 2GW2-08025075 | 8 | 16 | 75 | 8 | 2 |
| 2GW2-08025100 | 8 | 16 | 100 | 8 | 2 |
| 2GW2-010025075 | 10 | 20 | 75 | 10 | 2 |
| 2GW2-010040100 | 10 | 20 | 100 | 10 | 2 |
| 2GW2-012020075 | 12 | 24 | 75 | 12 | 2 |
| 2GW2-012040100 | 12 | 24 | 100 | 12 | 2 |
| 2GW2-014020080 | 14 | 28 | 80 | 14 | 2 |
| 2GW2-014100100 | 14 | 28 | 100 | 14 | 2 |
| 2GW2-016040100 | 16 | 32 | 100 | 16 | 2 |
| 2GW2-018040100 | 18 | 36 | 100 | 18 | 2 |
| 2GW2-020040100 | 20 | 40 | 100 | 20 | 2 |
| 2GW2-06040150 | 6 | 12 | 150 | 6 | 2 |
| 2GW2-08050150 | 8 | 16 | 150 | 8 | 2 |
| 2GW2-010050150 | 10 | 20 | 150 | 10 | 2 |
| 2GW2-012050150 | 12 | 24 | 150 | 12 | 2 |
| 2GW2-014060150 | 14 | 28 | 150 | 14 | 2 |
| 2GW2-016060150 | 16 | 32 | 150 | 16 | 2 |
| 2GW2-018060150 | 18 | 36 | 150 | 18 | 2 |
| 2GW2-020060150 | 20 | 40 | 150 | 20 | 2 |
