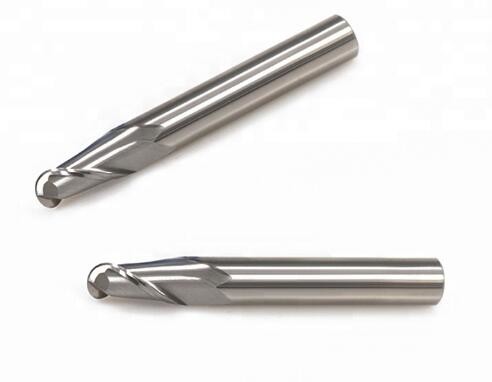

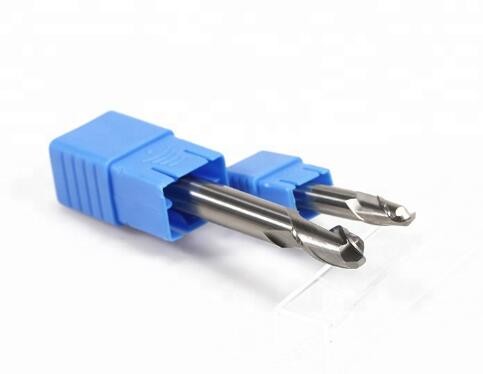

Fishing Lathe Carbide Ball Nose Aluminium Cutting Tool For Milling Machine
Features:
Allows perfect execution of the work
Featuring centre cutting straight flutes
These Ball nose end mills are suitable for slot and form milling applications
Tools and construction material specially designed for HSC
Can be offered with different cutting & shank diameters
Also featuring different flute lengths and overall lengths
Applications:
For milling of cast iron
Malleable cast iron
Steel & steel casting
Heat resisting steel
Plastics in design & profile manufacturing
a, Material: tungsten carbide
b, TRS: >3600 N/mm2
c, HRA: 91.8-92.4, HRC:45/55/60/65
d, Grain size: 0.2-0.6μm
e, Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9mm; 1-20mm
Size: Diameter 1.0mm-20mm standard and non-standard.
Cutting Form: Square,Ball nose, Corner Radius, Taper Flute, etc.
Type of flute: 2/3/4
Other products
Drills,reamer, tool holders, ER collet, boring cutters, carbide inserts, cutter heads,etc.
Application and usage
Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, aluminum alloy steel, non ferrous alloy etc.
Super coating:
| Item | AlTiN | TiAiN | TiSiN | nAcO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp( ° ) | 900 | 800 | 1000 | 1200 |
| Friction | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
| Flute dia | flute length | overall length | shank dia |
| R0.25 | 1.5 | 50 | Φ4 |
| R0.5 | 2 | 50 | Φ4 |
| R0.75 | 3 | 50 | Φ4 |
| R1 | 4 | 50 | Φ4 |
| R1.25 | 5 | 50 | Φ4 |
| R1.5 | 6 | 50 | Φ3 |
| R2 | 8 | 50 | Φ4 |
| R2.5 | 10 | 50 | Φ5 |
| R3 | 12 | 50 | Φ6 |
| R4 | 16 | 60 | Φ8 |
| R5 | 20 | 75 | Φ10 |
| R6 | 24 | 75 | Φ12 |
| R7 | 28 | 100 | Φ14 |
| R8 | 32 | 100 | Φ16 |
| R10 | 40 | 100 | Φ20 |
| R1 | 4 | 100 | Φ4 |
| R1.5 | 6 | 100 | Φ4 |
| R2 | 8 | 100 | Φ4 |
| R2.5 | 10 | 100 | Φ6 |
| R3 | 12 | 100 | Φ6 |
| R4 | 16 | 100 | Φ8 |
| R5 | 20 | 100 | Φ10 |
| R6 | 24 | 100 | Φ12 |
| R8 | 32 | 100 | Φ16 |
| R3 | 12 | 150 | Φ6 |
| R4 | 16 | 150 | Φ8 |
| R5 | 20 | 150 | Φ10 |
| R6 | 24 | 150 | Φ12 |
| R8 | 32 | 150 | Φ16 |
