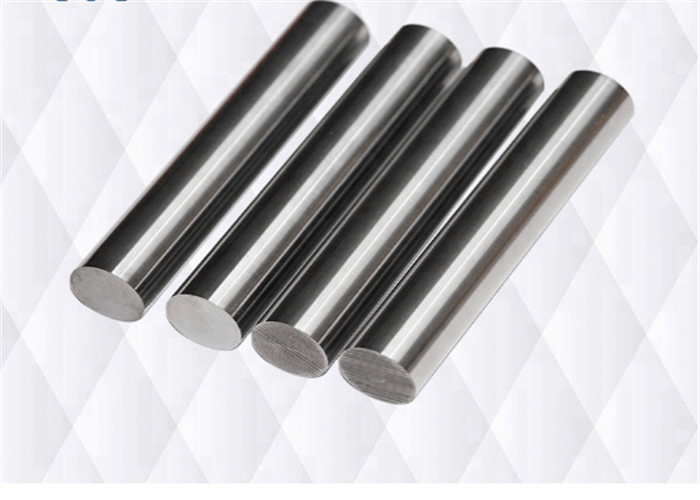

Cemented Tungsten Carbide Rods With Coolant Holes For Mills And Drill Bits
1. Description of tungsten carbide rod
| Size | Diameter 0.6 ~ 35mm Length 330mm |
| Brand | G&W |
| Delivery Time | 7-30 days |
| Port | Guangzhou, Shenzhen, Shanghai, Qingdao, etc |
| Package | 1 pc/ plastic |
| Payment Type | T/T, Western Union, Paypal, etc |
| Main markets | India, Turkey, Israel, Pakistan, Egypt, Germany, USA, Iran ,Brazil etc |
2.Application
Tungsten carbide rods are mostly applied for drill bits, end mills, and reamers with sub-micron grain grade YG10X, for non-ferrous precision cutting and wood cutting with grade YG6X, and for fiberglass reinforced plastics, titanium alloys, hardened steel with ultra-fine grain grade YG8X, etc. Our Carbide rods have a good shock resistance and bending resistance in use.
3.Grade
| GRADE | ISO | DENSITY (g/cm³) |
TRS (N/mm²) |
HARDNESS (HRA) |
APPLICATION |
| TF12 | K40 | 14.05 | 3200 | 91.8 | It is recommended for manufacturing of all types of drills, end mills, reaming, carving tools, suitable for dealing with stainless st- eel, nichrome, titanium alloy, heat-treated steel, cast iron, aluminum alloy, fine alum-inum, iron, plastic, graphite; |
| YG15 | K40 | 14 | 2500 | 86.5 | Excellent impact and shock resistance, su- itable for cemented carbide die blanks mo-ld core, etc; |
| YG6X | K10 | 14.9 | 1750 | 91.5 | Its wear Resistance is higher than YG6, used for processing hard wood, original wood, aluminum section bars, brass rod and cast iron; |
| YG10X | K30 | 14.5 | 2400 | 91 | It is recommended for manufacturing of all types of drills, end mills, burrs, etc, suit-able for the hole machining of steels,gray cast iron, austenitic stainless steel and heat-resistance alloy. |
4. Types available
Tungsten carbide rods diameter from 1mm-45mm, length from 50mm-1000mm

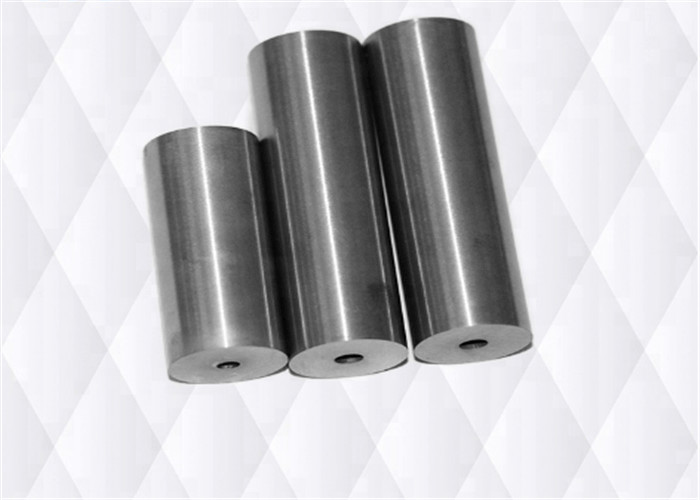

One coolant hole rods diameter from 3mm -30mm, length is 330mm
Two coolant holes rods diameter from 4mm -20mm, length is 330mm
Two spiral coolant hole with 30 degree, diameter from 6mm -20mm, length is 330mm
5. Packing
Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group
6.Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days
7.Company Introduction
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
8.Our advantages
(1).Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high-wearing feature.
(2).Non-standard can be customized according to customer's requirement
(3).We have produce ability to satisfy your orders,another manufacturing bases will be completed in the near month.
(4).100% virgin tungsten carbide powder
(5).10 years professional experience
9.FAQ
A: We are tungsten carbide factory with more than 10 years production experience.
A: Generally it is 3-5 days if the tungsten carbide is in stock. or it is 15-30 days if the tungsten carbide is not in stock, it is according to quantity.
A: Yes, we could offer the tungsten carbide sample for free charge,the cost of freight base on your quantity.
A: Yes,we have been in tungsten carbide field more than 10 years,R&D department,well-known China and USA experts specialize in researching novel tungsten carbide workmanship.
