3.175 Solid Carbide End Mills Tungsten Steel Milling Cutter Processing Circuit Board
10pcs
MOQ
negotiable
Price
3.175 Solid Carbide End Mills Tungsten Steel Milling Cutter Processing Circuit Board
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

square end mill cutter

,

square cutting end mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Material: 100% Tungsten Carbide Raw Material
Surface: Ground Or Unground, Coated Or Uncoated
Processing Range: PCB, Bakelite, Carbon Fiber, Etc.
Quality: Top Quality
Delivery Time: 7-15 Work Days
Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Shipping: By Express, Air,Sea,etc..
HRC: 45-55 55-65
Length: 50mm-150mm, Customized
Flute Diameter: 0.5mm-25mm, Customized
Sample: Free
Product Description



3.175 Solid Carbide End Mills Tungsten Steel Milling Cutter Processing Circuit Board



product description:



1, high wear resistance: carefully selected tungsten steel base material fine grinding, 0.5UM Swedish imported carbide high-precision grinding technology, the cutter head is more wear-resistant, longer life.

2, high quality and raw materials: carefully selected, we strictly control the quality to ensure that every product you use is a high quality product.

3, customized services: receive non-standard acceptance customization, to meet your different personality needs.

4, high sharpness: has a patented process, Germany mirror sharpening process, milling surface is more smooth and burr-free.

5, the overall design: integrated blade, the tip is more durable, the body structure is more sturdy.







detailed description:



1, tungsten steel overall: German equipment is made by fine grinding, the concentricity is accurately controlled within 0.002mm, and the cutting edge is sharp and wear-resistant.

2, the blade: the use of advanced nano-grinding process, milling to be more sharp than other processes, improve processing efficiency.

3, large flutes: mirror polishing, high gloss, is conducive to chip removal, improve work efficiency.

4, shank fine grinding: tungsten carbide, a perfect material with strength and toughness.

5, the bottom processing: smooth and delicate, with 3D stereo effect, embossed round carving processing tool quality choice.

Corn milling cutter is suitable for processing; bakelite synthetic stone epoxy board insulation board glass soldering board.

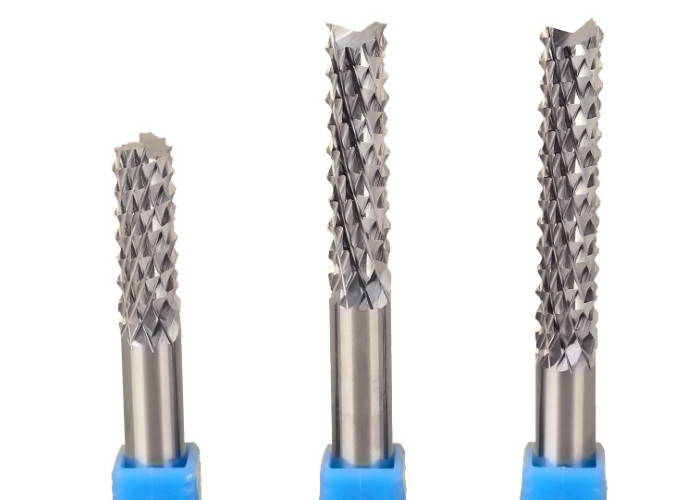

3.175 Solid Carbide End Mills Tungsten Steel Milling Cutter Processing Circuit Board 0



Product Size:



      UNIT(MM)
Blade diameter Cutting Length Shank diameter Total length
0.3 1.2 3.175 38
0.4 2 3.175 38
0.5 2.5 3.175 38
0.6 3 3.175 38
0.7 4 3.175 38
0.8 5.5 3.175 38
0.9 6 3.175 38
1.00-1.20 7 3.175 38
1.30-1.40 7.5 3.175 38
1.50-1.60 8.5 3.175 38
1.70-2.00 9.5 3.175 38
2.10-2.50 10.5 3.175 38
2.60-3.175 12 3.175 38
3.175 15 3.175 38
3.175 16 3.175 38
3.175 22 3.175 45
3.175 25 3.175 45
4 12 4 45
4 17 4 45
4 22 4 45
4 25 4 50
4 25 4 50
4 28 4 50
4 32 4 55
6 22 6 50
6 25 6 50
6 32 6 55
6 42 6 70
6 52 6 80




3.175 Solid Carbide End Mills Tungsten Steel Milling Cutter Processing Circuit Board 1



Coated corn milling cutters are suitable for processing; titanium alloys, copper alloys, cast irons, stainless steel, copper, die steels, etc.



It is specially used for high-speed cutting, milling and milling of CNC milling machines, which can increase the smoothness and reduce the wear coefficient.



Complete specifications, can also be customized according to customer requirements non-standard corn milling cutter.



Our Services:


More than 2000 products are available. Assembly line production, high standard and strict requirements.?
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.







Waiting for your kindly inquiry.
