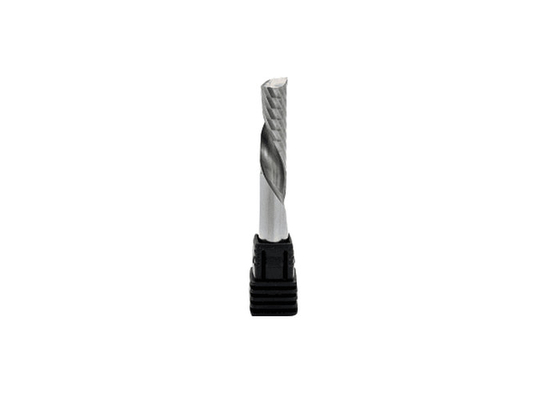

Long Life 3.175mm Single Flute Spiral Bit Carbide Milling Cutter For Acrylic
Product details
Product Name | One Flute Spiral End Mill |
Suitable for | Acrylic, PVC, MDF, wood, plastic plate, double color sheet |
Transport | Express |
Advantages | at stocks |
MOQ | 1pc |
Coating | TiN,TiCN,TiAIN |
Product Keywords | 3.175*1.5*4MM Single Flute Bit Carbide End Mill Set CNC Router End Mills for Wood Cutter Milling Acrylic Cutting Bits |
| Standard Carbide End Mill Specification | |||
| (HRC:45/50/65) | |||
| Diameter | Flute Length | Overall Length | Shank Diameter |
| 1 | 2.5 | 50 | 4 |
| 2 | 5 | 50 | 4 |
| 4 | 10 | 50 | 4 |
| 5 | 12.5 | 50 | 6 |
| 6 | 15 | 50 | 6 |
| 8 | 20 | 60 | 8 |
| 10 | 25 | 75 | 10 |
| 12 | 30 | 75 | 12 |
| 14 | 35 | 80 | 14 |
| 18 | 45 | 100 | 18 |
| 20 | 45 | 100 | 20 |
Application:
1. Single flute aluminum end mills,applicable to Stainless Steel,Cast iron,Aluminum,Copper,Graphite,Plastics,Composite Material,Titanium,Nickel,Heat-resistant Steel,Non-alloyed,Low-alloyed Steel...
2. Can be used for emulsion and micro-lubrication and dry processing.
3. Can be applied to general machinery industry, automobile industry and energy industry.
Advantage:
1.Single flute carbide end mill flat end mill, AlTiN coating provides wear resistance improvement as well as avoid edge stress in various applications. .
2, Minimize chattering by inequal flute spacing design.
3. Excellent work surface finish by 4 flute and deep chip pocket .
4. Minimize fracturing at high speed by high TRS ultra fine WC grade.
5. Imported material ,AF,,KENNA,CB,etc.
6. Facility: the latest 5-axis tools grinding machines
7, 100% inspection.
8, Both OEM and ODM for end mills and package are available.
9, Coating for this single flute end mill flat end mill is optional.
10, Short lead time.
Specification:
Part name: One flute spiral bits Solid carbide single flute end mill,Single flute aluminum end mills
Workpiece Hardness: HRC45,HRC50,HRC55,HRC60,HRC65
End mill diameter:0.5-20 mm
End mill length:50-200mm

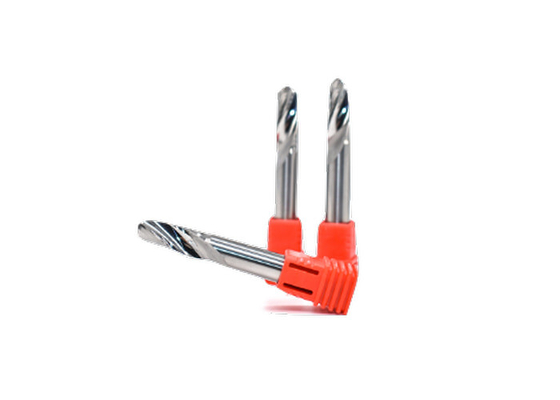

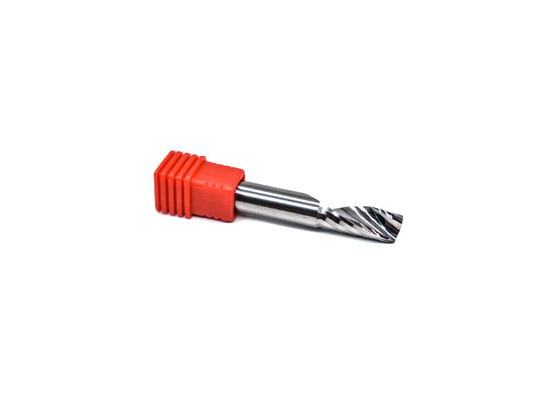

Product Show
Grewin Carbide Team Are Waiting For Your Inquiry !
