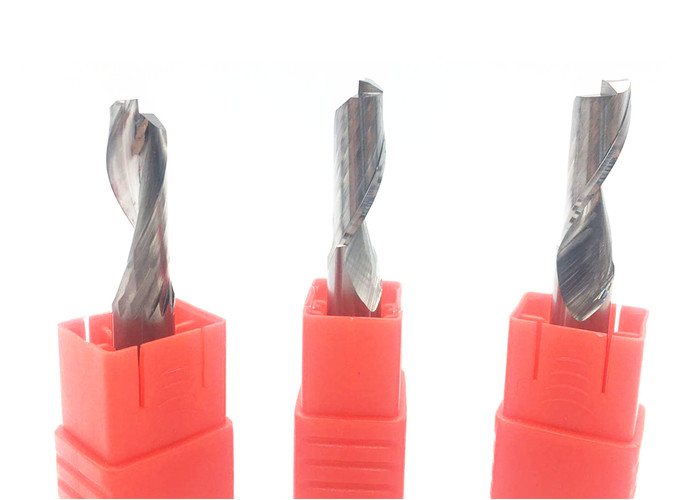

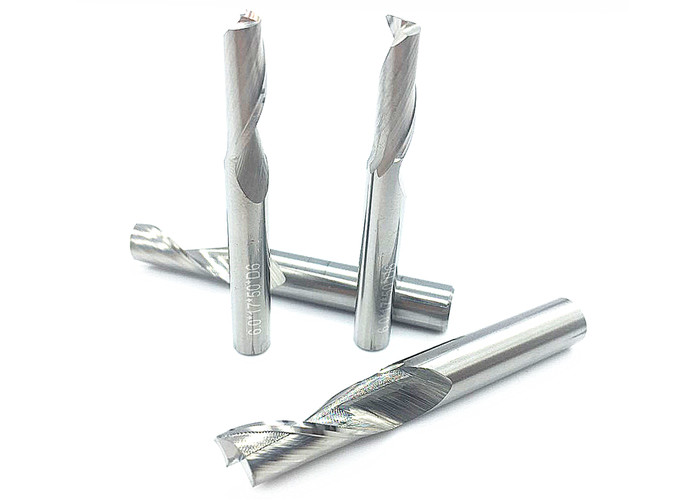

3.175mm One Single Flute Spiral Router Bits CNC Engraving Bit Tools
Products Description:
1, Mirror surface grinding to reduce friction during cutting.
2, High quality materials, reduced wear, not easy to break, long service life.
3, Large flutes, high gloss and no residue, smooth chip removal, high efficiency.
4, Rotating cutter head, sharp wear resistance, good drawing effect in the groove.
5, Suitable for acrylic, MDF, PVC, circuit boards, aluminum sheets, wood.
Product size:
| ONE FLUTE SPIRAL BITS FOR ALUMINUM | ||||
| Applicable: Aluminium Alloy, Copper Alloy, Magnesium Alloy. Low power spindle,high speed rotation above 16000 per minute processing. Features: The cutter is specifically designed for high-speed cutting of aluminium, copper and gold, etc, with excellent finish. |
||||
| NO | SHK | CED | CEL | OVL |
| 1fal3.103 | 3.175 | 1 | 3 | 38 |
| 1fal3.1.505 | 3.175 | 1.5 | 5 | 38 |
| 1fal3.204 | 3.175 | 2 | 4 | 38 |
| 1fal3.206 | 3.175 | 2 | 6 | 38 |
| 1fal3.208 | 3.175 | 2 | 8 | 38 |
| 1fal3.2.504 | 3.175 | 2.5 | 4 | 38 |
| 1fal3.2.506 | 3.175 | 2.5 | 6 | 38 |
| 1fal3.2.508 | 3.175 | 2.5 | 8 | 38 |
| 1fal3.06 | 3.175 | 3.175 | 6 | 38 |
| 1fal3.07 | 3.175 | 3.175 | 7 | 38 |
| 1fal3.12 | 3.175 | 3.175 | 12 | 38 |
| 1fal3.17 | 3.175 | 3.175 | 17 | 38 |
| 1fal410 | 4 | 4 | 8 | 45 |
| 1fal412 | 4 | 4 | 12 | 45 |
| 1fal412 | 4 | 4 | 15 | 45 |
| 1fal417 | 4 | 4 | 17 | 45 |
| 1fal422 | 4 | 4 | 22 | 45 |
| 1fal612 | 6 | 6 | 12 | 50 |
| 1fal617 | 6 | 6 | 17 | 50 |
| 1fal622 | 6 | 6 | 22 | 50 |
| 1fal822 | 8 | 8 | 22 | 60 |
| 1fal825 | 8 | 8 | 25 | 60 |
| 1fal1025 | 10 | 10 | 25 | 75 |
| 1fal1032 | 10 | 10 | 32 | 75 |
| 1fal1042 | 10 | 10 | 42 | 85 |
| 1fal1232 | 12 | 12 | 35 | 75 |
| 1fal1242 | 12 | 12 | 42 | 80 |
