Boron Cemented Tungsten Carbide Sandblasting Nozzle

Boron Cemented Tungsten Carbide Sandblasting Nozzle
Boron Cemented Tungsten Carbide Sandblasting Nozzle Boron Cemented Tungsten Carbide Sandblasting Nozzle Boron Cemented Tungsten Carbide Sandblasting Nozzle

Large Image :  Boron Cemented Tungsten Carbide Sandblasting Nozzle

Product Details:

Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Detailed Product Description
Surface: Polish Or Unpolish, Grinding Or Ungrinding Material: 100% Raw Material
Quality: Hip-Sintered, Micro Grain Precision: High Precision
Delivery Time: 15-20 Work Days
High Light:

Cemented Tungsten Carbide Sandblasting Nozzle

,

Boron Tungsten Carbide Sandblasting Nozzle

,

polish Carbide Sandblasting Nozzles

Advantages on Tungsten carbide sand blasting nozzles :
1. very high hardness.
2. stable working effort during blasting.
3. long sizes are accetable.
4. very good prices with quite fast delivery.
5. special sizes with drawing are acceptable.

Grewin supply sandblast nozzles with regular types of straight bore and venturI bore, such as boron carbide nozzles, silicon carbide nozzles, tungsten carbide nozzles and ceramic ones.

1. Boron carbide sand blasting nozzles, they have a service life 4-7times of sintered tungsten carbide nozzles, but their shock resistance is not as that of sintered carbide nozzles, so are suitable to serve under wear, stable atmospheric pressure and medium shock.
Specification:
Grind resistant, do not active with acid, low & high temperature resistance,
The density> =2.46g/cm3;
Hardness> =3500kgf/sqm, bending resistance: ≥ 400Mpa
Melting point: 2450degree
And now boron carbide nozzle is instead of hardness alloy, Tungsten carbide nozzle, silicon carbide sandblasting nozzle.
The working life of boron carbide nozzle is 500-1000H
The size can be customized as per drawing

2. Sintered tungsten carbide, products including various sand blasting nozzle, high-pressure water spray nozzle, high-pressure water cutting nozzle, bars, sheets, sealing rings, punching die blocks, glass cutters, etc.
We are able to produce tubes with diameter of 200mm and length of 300mm, for rings, size can be diameter up to 320mm and length to be 200mm.



3. Silicon carbide sand blasting nozzles have middle wear resistance and anti-shock ability compared with boron carbide and tungsten carbide, and much lighter than tungsten carbides.

Estimated service life of nozzles(In hours)


Nozzle Material


Steel Grit/Shot


Sand


Aluminum Oxide


Alumina


20-40


10-30


1-4


Tungsten Carbide


500-800


300-400


20-40


Silicon Carbide


600-1000


400-600


50-100


Boron Carbide


1500-2500


750-1500


200-1000




Product Show:

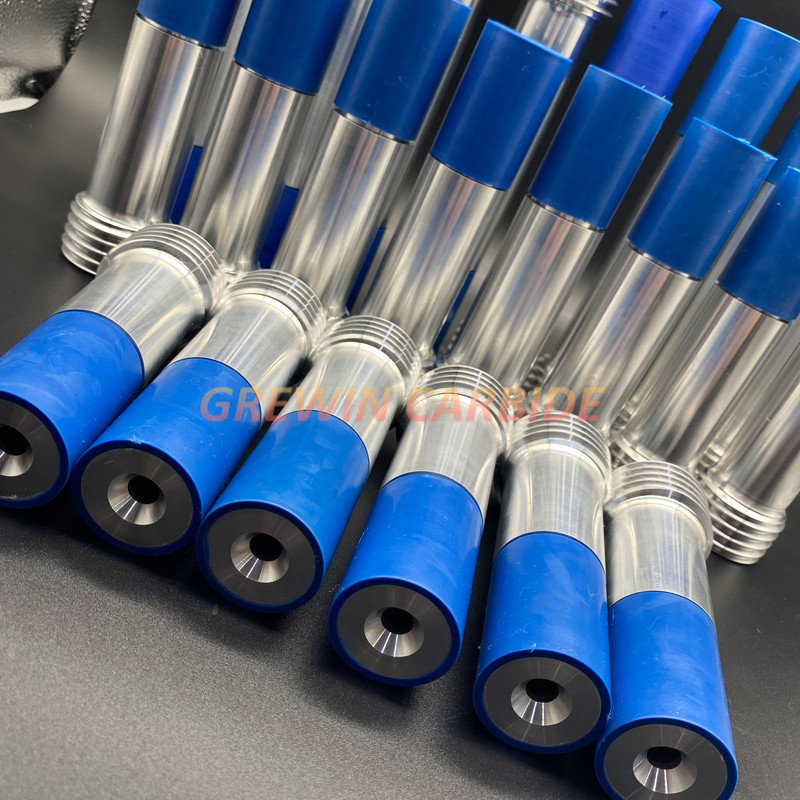

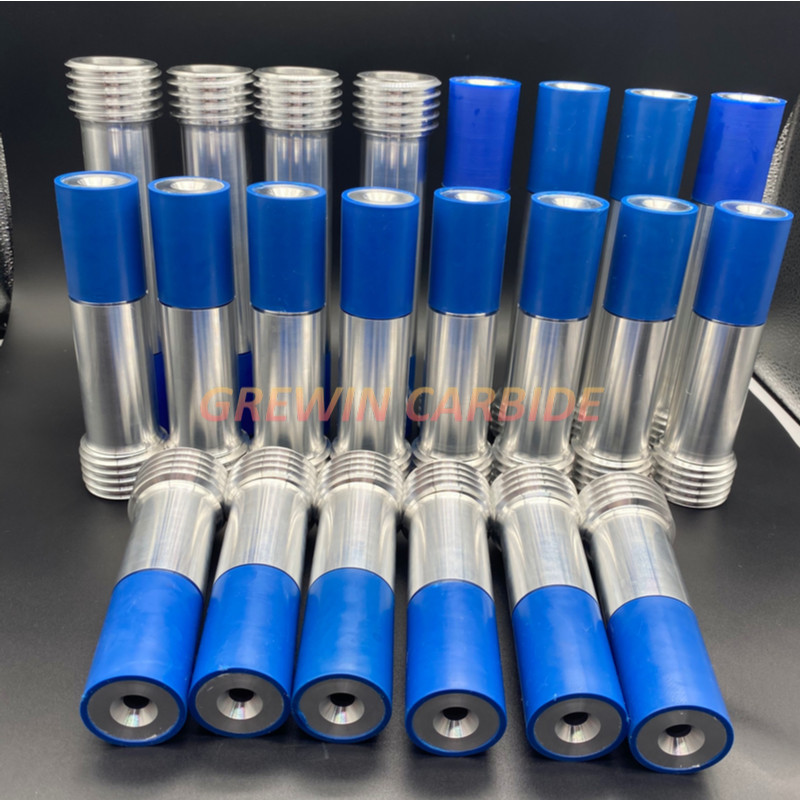

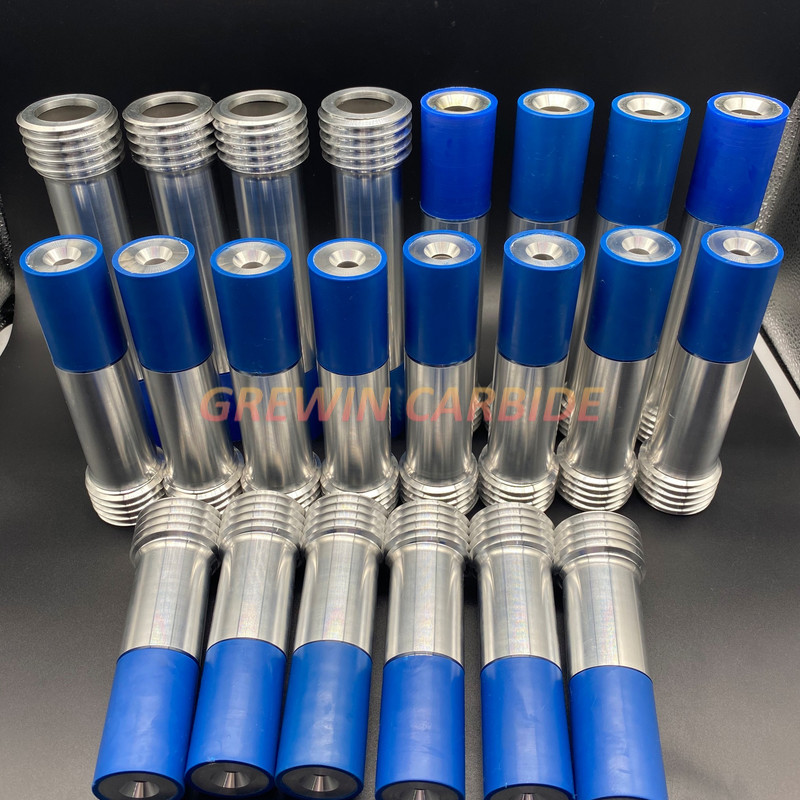

Boron Cemented Tungsten Carbide Sandblasting Nozzle 0Boron Cemented Tungsten Carbide Sandblasting Nozzle 1Boron Cemented Tungsten Carbide Sandblasting Nozzle 2
