1. Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7
| HRC45 | HRC55 | HRC60 | HRC65 |
| Grain Size:0.6um Co:10 % Flexural strength:3350N/mm2 |
Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 |
Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 |
Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2 |
2. Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
3. Coating
Coating |
Color |
Coating Temperature |
Thickness (um) |
HV |
Application Temperature |
Friction coefficient |
TiAlN |
Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
| AlTiN | Black | <600 °C | 3-5 | 3500 | 900 °C | 0.3 |
| TiSiN | Copper | <600 °C | 3-5 | 3500 | 1500 °C | 0.4 |
| NaNo | Blue | <600 °C | 3-5 | 3800 | 1200 °C | 0.4 |
| CrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
4. Packing

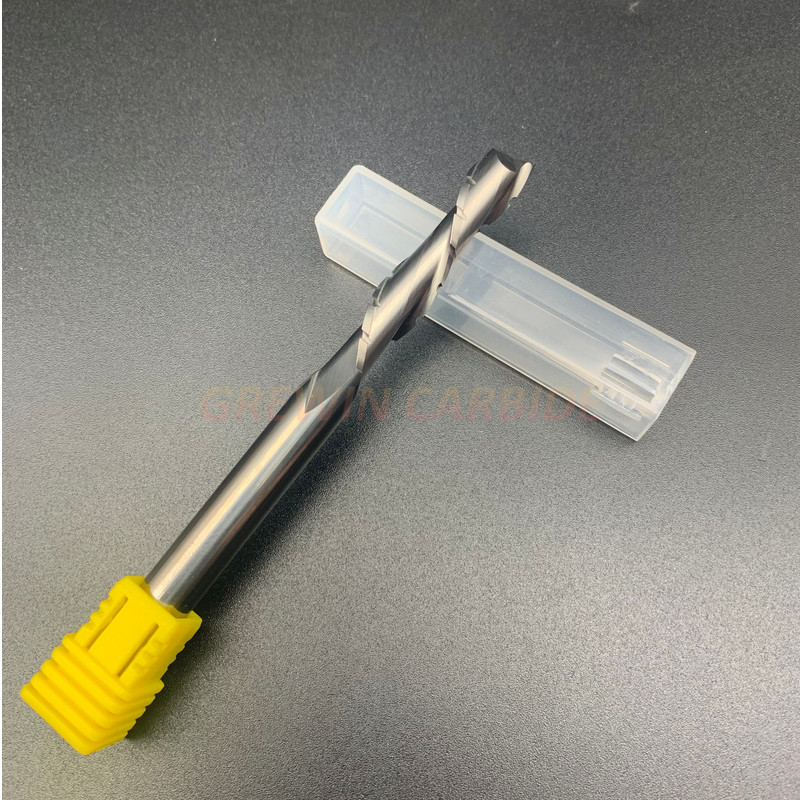

Brand Laser printed on cutter shank, 1 pcs in a plastic tube, 10 pcs a group
5. Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days
Standard Sizes:
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
| 25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |
2 flutes Ballnose End Mill
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.
| Code No. |
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 2GW2-01002050 | 1 | 2 | 50 | 4 | 2 |
| 2GW2-01504050 | 1.5 | 3 | 50 | 4 | 2 |
| 2GW2-02050500 | 2 | 4 | 50 | 4 | 2 |
| 2GW2-02507050 | 2.5 | 5 | 50 | 4 | 2 |
| 2GW2-02008050 | 3 | 6 | 50 | 4 | 2 |
| 2GW2-04010050 | 4 | 8 | 50 | 4 | 2 |
| 2GW2-04015075 | 4 | 8 | 75 | 4 | 2 |
| 2GW2-04020100 | 4 | 8 | 100 | 4 | 2 |
| 2GW2-05012050 | 5 | 10 | 50 | 6 | 2 |
| 2GW2-06015050 | 6 | 12 | 50 | 6 | 2 |
| 2GW2-06020075 | 6 | 12 | 75 | 6 | 2 |
| 2GW2-06020100 | 6 | 12 | 100 | 6 | 2 |
| 2GW2-06020060 | 8 | 16 | 60 | 8 | 2 |
| 2GW2-08025075 | 8 | 16 | 75 | 8 | 2 |
| 2GW2-08025100 | 8 | 16 | 100 | 8 | 2 |
| 2GW2-010025075 | 10 | 20 | 75 | 10 | 2 |
| 2GW2-010040100 | 10 | 20 | 100 | 10 | 2 |
| 2GW2-012020075 | 12 | 24 | 75 | 12 | 2 |
| 2GW2-012040100 | 12 | 24 | 100 | 12 | 2 |
| 2GW2-014020080 | 14 | 28 | 80 | 14 | 2 |
| 2GW2-014100100 | 14 | 28 | 100 | 14 | 2 |
| 2GW2-016040100 | 16 | 32 | 100 | 16 | 2 |
| 2GW2-018040100 | 18 | 36 | 100 | 18 | 2 |
| 2GW2-020040100 | 20 | 40 | 100 | 20 | 2 |
| 2GW2-06040150 | 6 | 12 | 150 | 6 | 2 |
| 2GW2-08050150 | 8 | 16 | 150 | 8 | 2 |
| 2GW2-010050150 | 10 | 20 | 150 | 10 | 2 |
| 2GW2-012050150 | 12 | 24 | 150 | 12 | 2 |
| 2GW2-014060150 | 14 | 28 | 150 | 14 | 2 |
| 2GW2-016060150 | 16 | 32 | 150 | 16 | 2 |
| 2GW2-018060150 | 18 | 36 | 150 | 18 | 2 |
| 2GW2-020060150 | 20 | 40 | 150 | 20 | 2 |
4 flutes Ballnose End Mill
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.
| Code No. |
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 4GW2-0103050 | 1 | 2 | 50 | 4 | 4 |
| 4GW2-0205050 | 2 | 4 | 50 | 4 | 4 |
| 4GW2-0308050 | 3 | 6 | 50 | 4 | 4 |
| 4GW2-04010050 | 4 | 8 | 50 | 4 | 4 |
| 4GW2-05013050 | 5 | 10 | 50 | 5 | 4 |
| 4GW2-06015050 | 6 | 12 | 50 | 6 | 4 |
| 4GW2-08020060 | 8 | 16 | 60 | 8 | 4 |
| 4GW2-01020075 | 10 | 20 | 75 | 10 | 4 |
| 4GW2-012030075 | 12 | 24 | 75 | 12 | 4 |
| 4GW2-06030100 | 6 | 12 | 100 | 6 | 4 |
| 4GW2-08030100 | 8 | 16 | 100 | 8 | 4 |
| 4GW2-010040100 | 10 | 20 | 100 | 10 | 4 |
| 4GW2-012040100 | 12 | 24 | 100 | 12 | 4 |
