1. 100% Virgin raw material
2. Advanced production equipment/test equipment (With HIP sintering).
3. With production experience over 10 years. We can make extruded tungsten carbide rod or die pressing tungsten carbide tube.
4. Standard length 100mm and 330mm, dia. from 0.5mm to 60mm, also can produce according to customers' request.
5. Competitive price and fast delivery
Application:
Used in welding/ making the drill bits/ endmills / reamers .automobile special cutters, printed circuit board special cutters, engine special cutters, Horologe processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can bu used for making of cemented carbide stamping head, Core bar and perforation tools.
The Specification Range of extruded Grounded Tungsten Carbide Rod :
WC Grain size range: 0.3~0.5μ.m; 0.5~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.
Length range:3mm-600mm; (General Length: 100mm,300mm,320mm,330mm)
Diameter Grade: h4(H4), h5(H5), h6(H6), h7(H7), h8(H8), h9(H9), etc.
Good grinding machine to ensure the sphencity & the Linearity of rod at higher level standard;
Sphericity tolerance range: 0.001mm ~ 0.005mm;
Linearity tolerance range: 0.001mm~0.1mm;
Surface Roughness can be reached to: RA0.04.(reach a mirror effect surface after fine grinding)
| Grades | ||||
| Density(g/cm³) | Hardness(HRA) | T·R·S(N/mm2) | Application | |
| YG4C | 15 | 89.5 | 1800 | Maily used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG6 | 14.8 | 89.5 | 1700 | Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8 | 14.7 | 88.5 | 2300 | Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8C | 14.7 | 88 | 2300 | Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG9C | 14.5 | 87 | 2400 | Maily used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG11C | 14.4 | 86.5 | 2450 | Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG13C | 14.3 | 86 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
| YG15 | 14 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
| YG20 | 13.40-13.70 | 85 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |

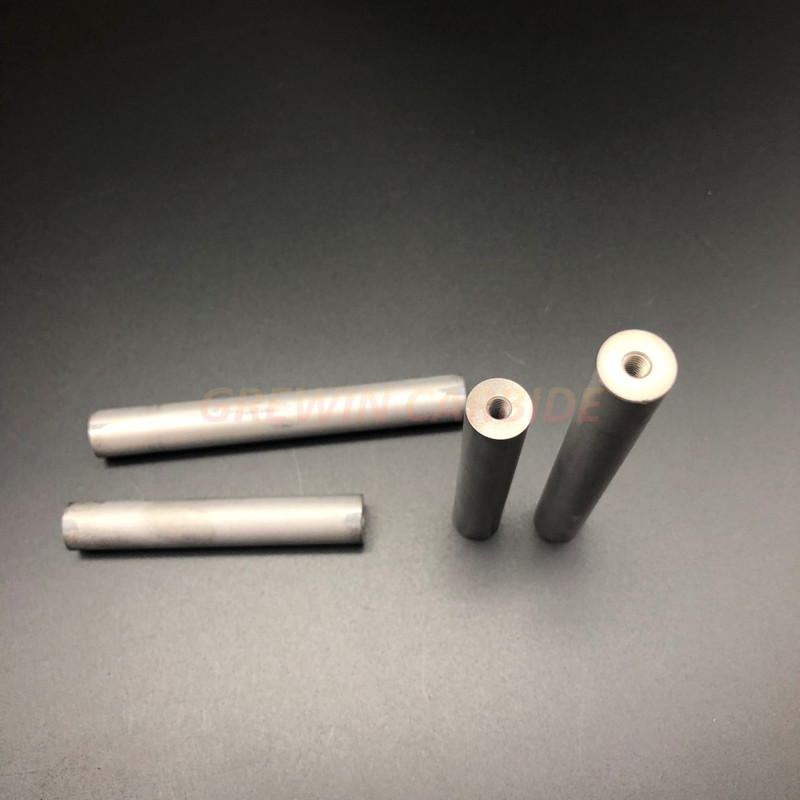

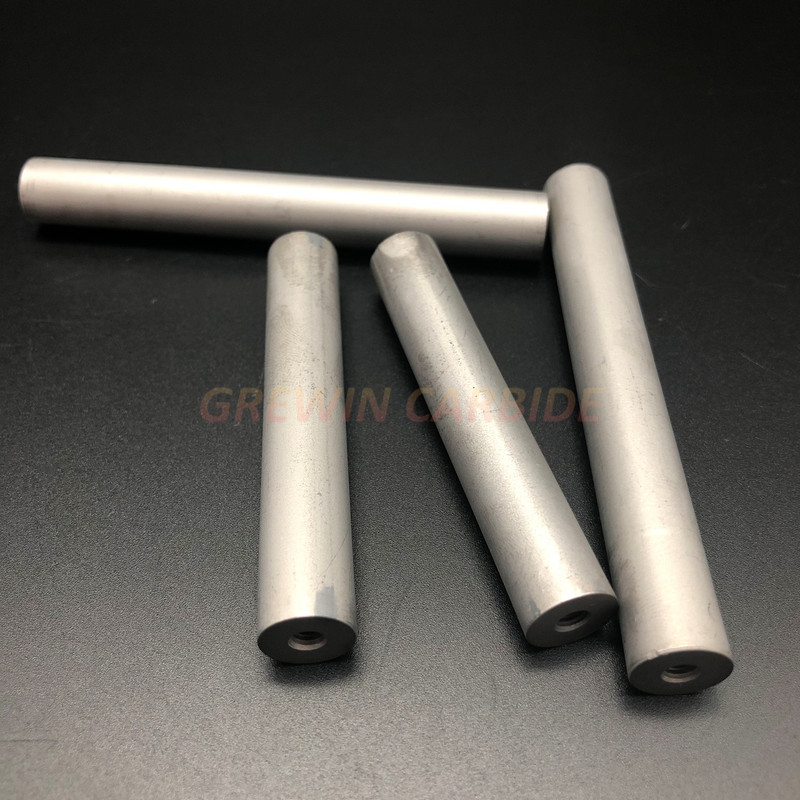

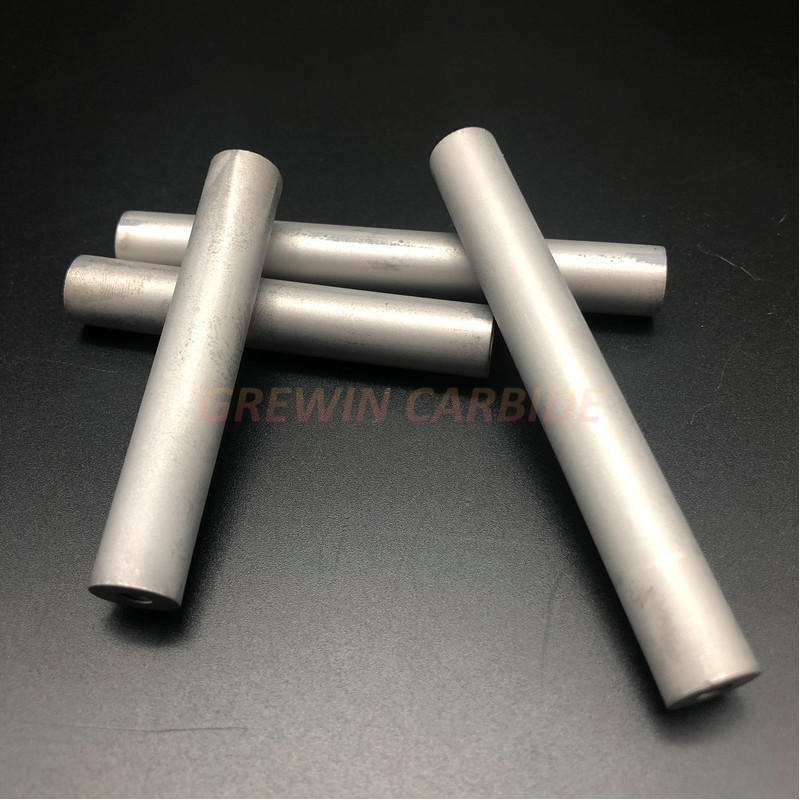

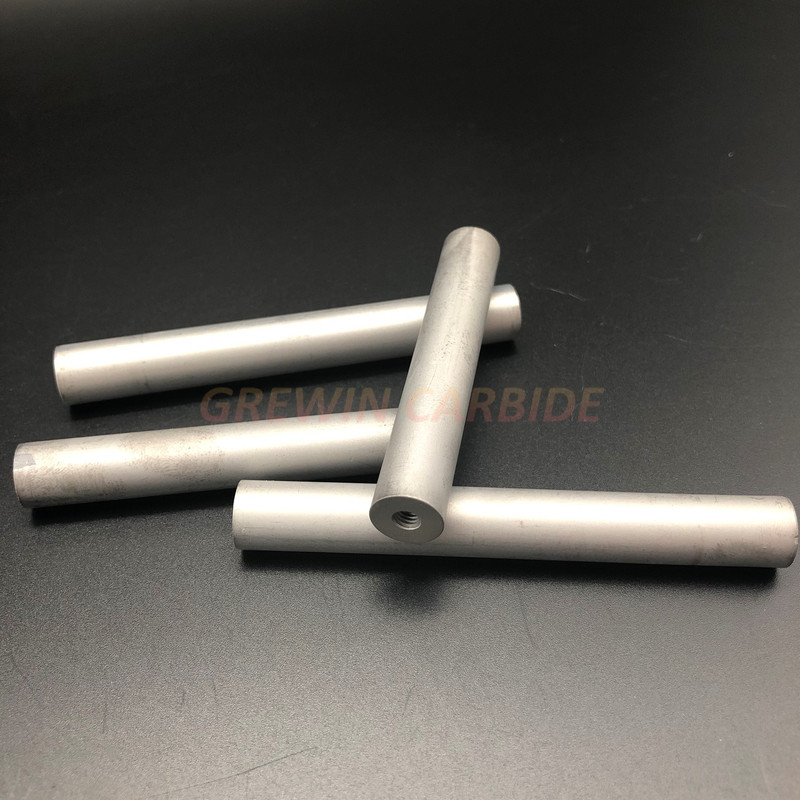

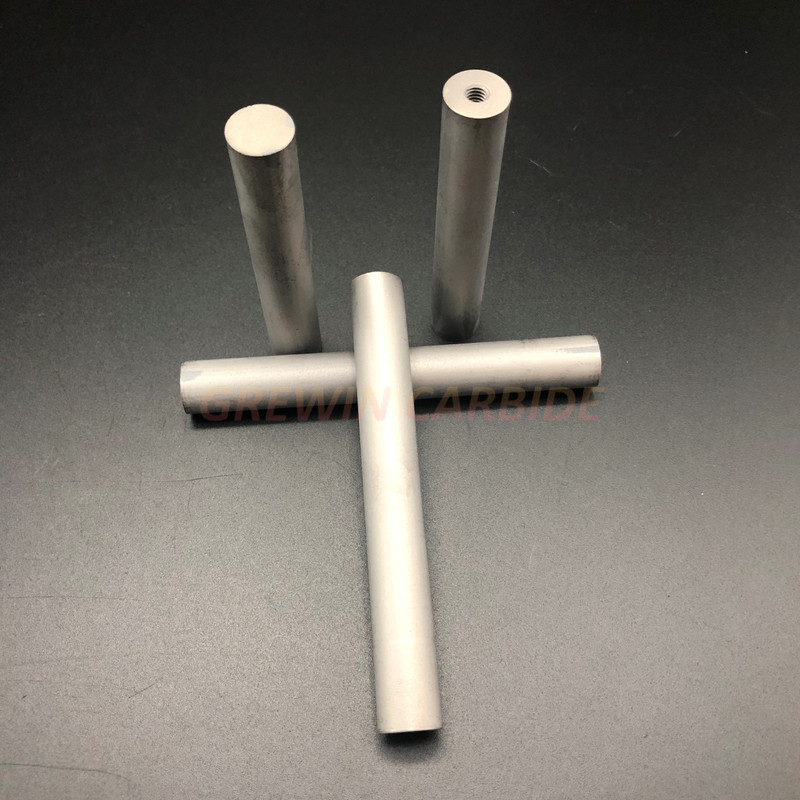

Product show:
Waiting for your kindly inquiry !
