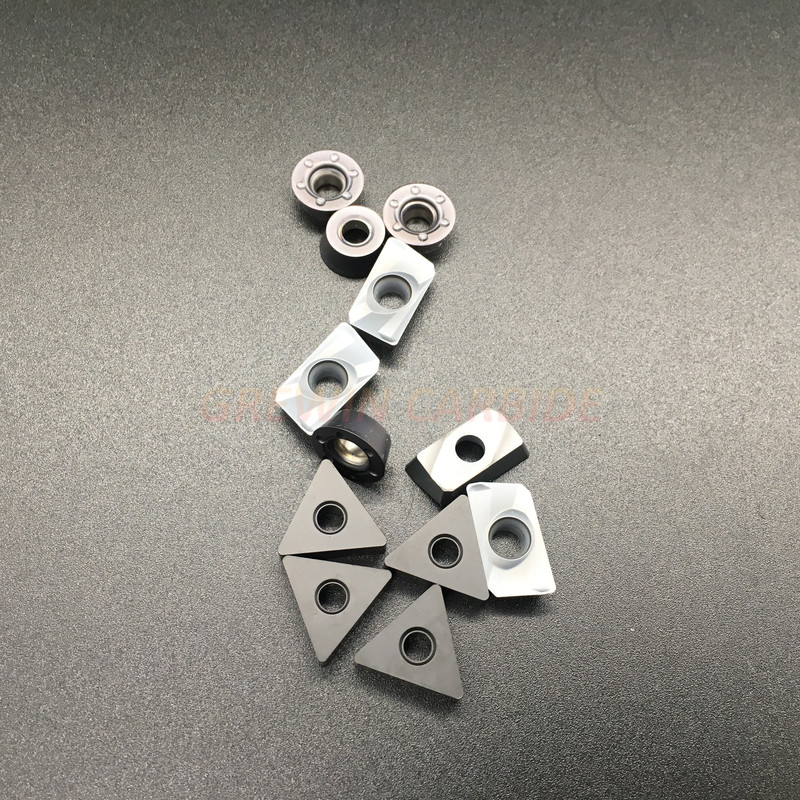

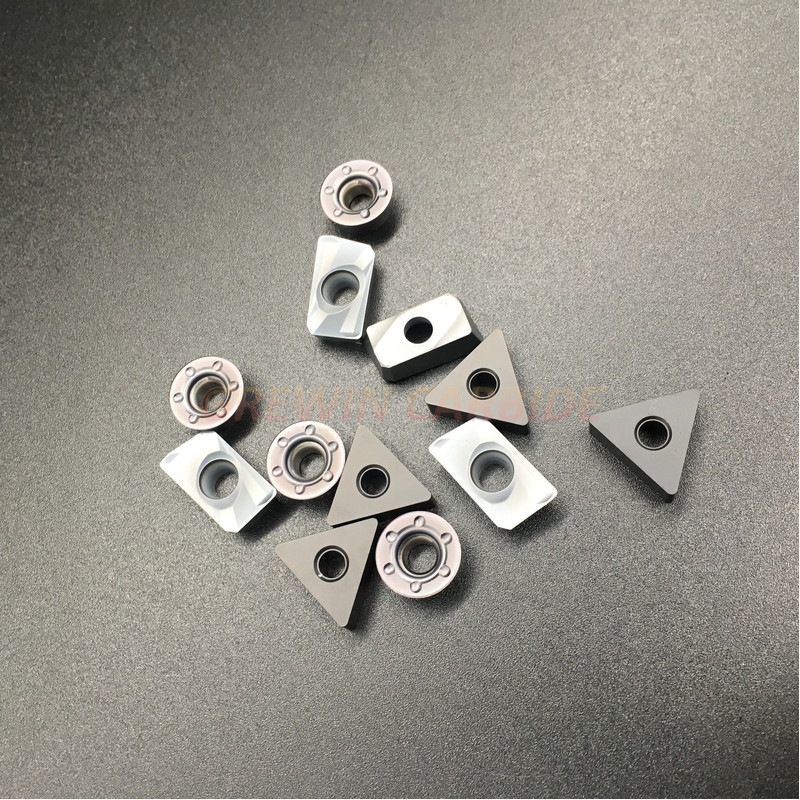

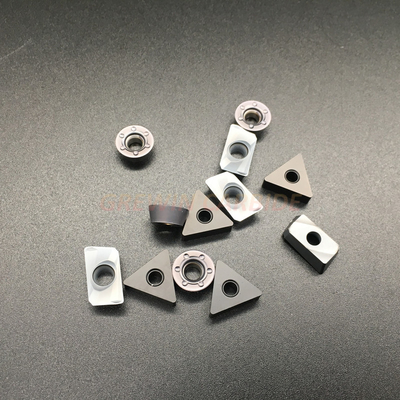

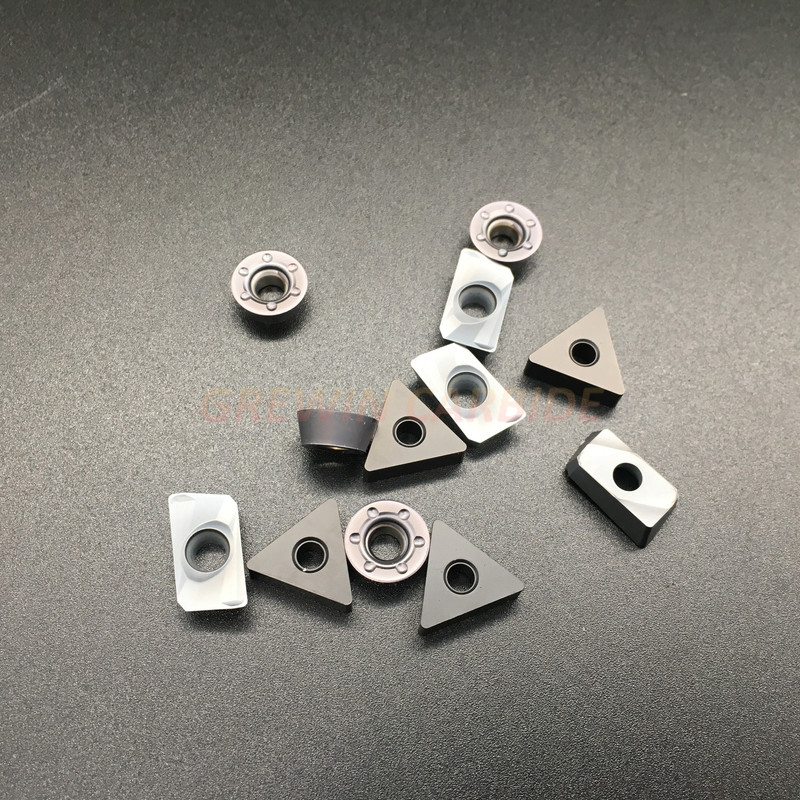

1. Tungsten carbide tools for Turning inserts
CNMG/TNMG/WNMG/DNMG/SNMG/VNMG/CCMT/DCMT/SCMT/TCMT/VBMT/KNUX
2. Tungsten carbide tools for milling inserts
APKT/APMT/RPKW/RDKW/RCMT/SPKN/TPKN
3. Tungsten carbide tools for Aluminium inserts cutting
CCGT/DCGX/SCGX/TCGX/VCGX
4. PCD &PCBN Tungsten carbide tools turning for inserts
CNGA/DNGA/SNGA/TNGA/VNGA/CCGW/DCGW/TCGW/VBGWCarbide inserts are usually indexable, they can be exchanged, and rotated or flipped, without disturbing tool effective diameter, tool length offset, etc. This saves time and increased efficiency in manufacturing.
| Type | ISO Range | Grade | Color | Application | |||||||
| Turning | M15-35 P15-P35 K15-K35 S05-S25 | AP0025 | Yellow | *PVD Coating – TiN+TiALN *Superior universal turning grade to cover all kinds of work piece like SUS, HRSA, alloy steel and casting iron for both continuous & interrupted cutting | |||||||
| Turning | P15-P35 | AP5025 | Black | *PVD Coating – Advanced TiALN Powerful turning grade due to the coating with high hardness and oxidation resistance at all kinds of milling and turning | |||||||
| Grooving & Drilling | M15-M35 P15-P35 K15-K35 S05-S25 | AP0525 | Black | *PVD Coating – Advanced AlTiN Optimization for grooving and drilling due to combining the substrate of superior wear resistance and toughness with the coating of excellent oxidation, chipping resistance | |||||||
| Grooving & Drilling | M15-M35 P15-P35 K15-K35 S05-S25 | AC5525P | Black | *PVD Coating – Advanced AlTiN Optimization for the interrupted grooving and drilling due to combining the substrate of superior wear resistance and toughness with the coating of excellent oxidation, chipping resistance | |||||||
| Grooving | M15-M35 | AP6525P | Black | *PVD Coating – Advanced AlTiN Optimization for grooving due to combining the premium substrate of superior wear resistance and toughness with the coating of excellent oxidation, chipping resistance | |||||||
Milling carbide inserts play a key role in milling processing, Suitable milling inserts could help more productivity, milling has been evolved into a method that machines a very broad range of operations. As an important part of milling, in addition to all the conventional applications, milling is a strong alternative for producing holes, threads, cavities, and surfaces that used to be turned, drilled, or tapped.
GREWIN milling carbide inserts range includes planer type milling inserts (TPKN/SPKN/SEKN and etc), Fast feed milling inserts(SDMT/LNMG/WNMU/LNMU/HNMG/SNMX/SNMU/ENMU/SOMT/LOGU/PNMU and etc) of heavy cutting and basic milling inserts of shoulder milling and face milling(APMT/APKT AND R series. for the application area of steel, stainless steel, hardened steel, nickel-based alloys, and aluminum.
More details:
Why choose us?
We can manufacture and supply literally hundreds of both standard and custom-size solid carbide end mills and HSS end mills for most applications. Whether you need standard or non-standard end mills with flat, ball nose, or corner radius forms, or even micro end mills forms, We can turn your design into an end mill in just days.
