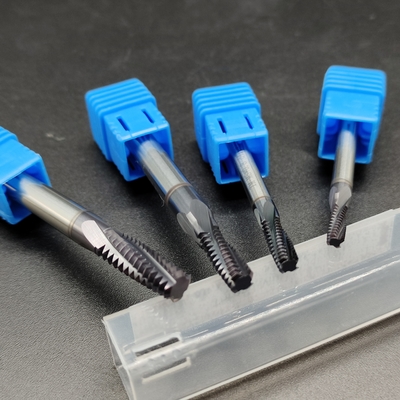

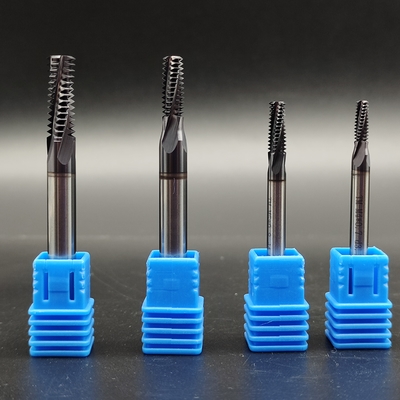

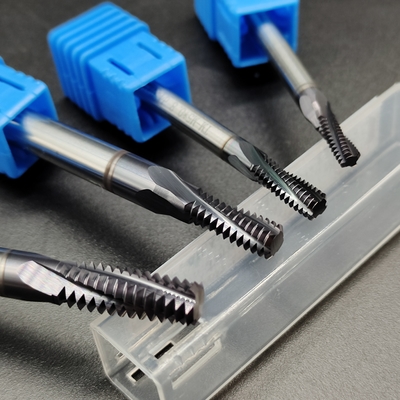

Gw Carbide -Tialn Coating Solid Carbide All Teeth Thread End Mill M2 M3 M4 M5 M6 M8 M10 Carbide Thread Mill For Metal
1. Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7
| HRC45 | HRC55 | HRC60 | HRC65 |
| Grain Size:0.6um Co:10 % Flexural strength:3350N/mm2 |
Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 |
Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 |
Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2 |
2. Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Coating |
Color |
Coating Temperature |
Thickness (um) |
HV |
Application Temperature |
Friction coefficient |
TiAlN |
Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
| AlTiN | Black | <600 °C | 3-5 | 3500 | 900 °C | 0.3 |
| TiSiN | Copper | <600 °C | 3-5 | 3500 | 1500 °C | 0.4 |
| NaNo | Blue | <600 °C | 3-5 | 3800 | 1200 °C | 0.4 |
| CrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
| Coated thread milling cutter for tungsten steel single tooth steel (60°) | |
| Size | diad1*cutting length L1*shankD*OVLL |
| M0.8*0.2 | 0.55d1*1.5L1*4D*50L |
| M0.9*0.225 | 0.625d1*1.8L1*4D*50L |
| M1.0*0.25 | 0.7d1*3.0L1*4D*50L |
| M1.2*0.25 | 0.9d1*3.6L1*4D*50L |
| M1.4*0.3 | 1.05d1*4.0L1*4D*50L |
| M1.6*0.35 | 1.2d1*4.5L1*4D*50L |
| M2.0*0.4 | 1.55d1*6.0L1*4D*50L |
| M2.5*0.45 | 1.96d1*6.5L1*4D*50L |
| M3.0*0.5 | 2.35d1*8.0L1*4D*50L |
| M4.0*0.7 | 3.15d1*10L1*4D*50L |
| M5.0*0.8 | 3.9d1*12L1*4D*50L |
| M6.0*1.0 | 4.8d1*15L1*6D*50L |
| M8.0*1.25 | 6.0d1*20L1*6D*60L |
| M10*1.5 | 7.7d1*25L1*8D*60L |
| M12*1.75 | 9.6d1*30L*10D*75L |
| M14*2.0 | 10d1*36L1*10D*75L |
| M18*2.5 | 12d1*38L1*12D*75L |
| M24*3.0 | 14d1*48L1*14D*100L |
| M30*3.5 | 16d1*50L1*16D*100L |
| Coated thread milling cutter for tungsten steel three-row tooth steel (60°) | |
| Size | diad1*cutting length L1*shankD*OVLL |
| M1.0*0.25 | 0.73d1*2.0L1*4D*50L |
| M1.2*0.25 | 0.92d1*2.4L1*4D*50L |
| M1.4*0.3 | 1.05d1*2.8L1*4D*50L |
| M1.6*0.35 | 1.2d1*3.2L1*4D*50L |
| M2.0*0.4 | 1.55d1*4.0L1*4D*50L |
| M2.2*0.45 | 1.7d1*5.0L1*4D*50L |
| M2.5*0.45 | 2.0d1*5.0L1*4D*50L |
| M3.0*0.5 | 2.4d1*6.0L1*4D*50L |
| M3.5*0.6 | 2.75d1*8.0L1*4D*50L |
| M4.0*0.7 | 3.15d1*8.0L1*4D*50L |
| M4.5*0.75 | 3.5d1*9.0L1*4D*50L |
| M5.0*0.8 | 4.0d1*10L1*4D*50L |
| M6.0*1.0 | 4.8d1*12L1*6D*50L |
| M8*1.0 | 6.0d1*16L1*6D*50L |
| Tungsten steel metric full tooth thread milling cutter (60°) | |
| size | diad1*cutting length L1*shankD*OVLL |
| M3*0.5 | 2.35d1*6.0L1*D4*50L |
| M4*0.7 | 3.15d1*8.0L1*D4*50L |
| M5*0.5 | 4.0d1*10L1*4D*50L |
| M5*0.75 | 4.0d1*10L1*4D*50L |
| M5*0.8 | 4.0d1*10L1*4D*50L |
| M6*0.75 | 4.8d1*12L1*6D*50L |
| M6*1.0 | 4.8d1*12L1*6D*50L |
| M8*0.5 | 6.0d1*16L1*6D*60L |
| M8*0.75 | 6.0d1*16L1*6D*60L |
| M8*1.0 | 6.0d1*16L1*6D*60L |
| M8*1.25 | 6.0d1*16L1*6D*60L |
| M10*1.0 | 8.0d1*21L1*8D*60L |
| M10*1.25 | 8.0d1*21L1*8D*60L |
| M10*1.5 | 8.0d1*21L1*8D*60L |
| M12*0.5 | 10d1*24L1*10D*75L |
| M12*0.75 | 10d1*24L1*10D*75L |
| M12*1.0 | 10d1*24L1*10D*75L |
| M12*1.5 | 10d1*24L1*10D*75L |
| M12*1.75 | 10d1*24L1*10D*75L |
| M14*1.0 | 12d1*28L1*12D*75L |
| M14*1.5 | 12d1*28L1*12D*75L |
| M14*2.0 | 11.6d1*28L1*12D*75L |
| M16*1.5 | 14d1*32L1*14D*100L |
| M16*2.0 | 13d1*32L1*14D*100L |
| M18*2.5 | 14.8d1*38L1*16D*100L |
| M20*1.5 | 16d1*38L1*16D*100L |
| M24*3.0 | 16d1*42L1*16D*100L |
