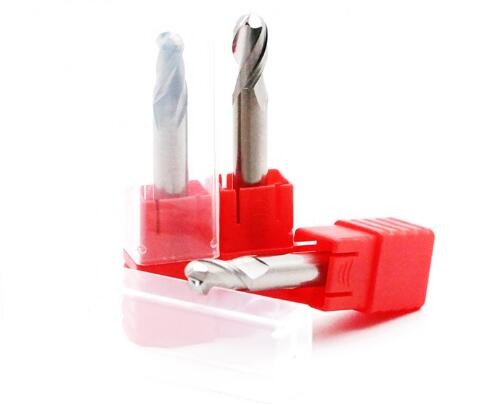

Cnc Machine Tool Ball Nose Cutter Aluminum Ball Mill With 2 Flutes
10pcs
MOQ
negotiable
Price
Cnc Machine Tool Ball Nose Cutter Aluminum Ball Mill With 2 Flutes
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

tungsten carbide tools

,

tungsten carbide cutting tools

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Controlling Mode: CNC Tooling System
Precision: 0.005-0.01mm
Flute Diameter: 0.5mm-20mm,Customized
Helix Angle: 35°, 45°
Scope Of Business: OEM, Customization
Certificate: ISO9001
Testing Equipment: ZOLLER
Machine Type: WALTER, ROLLOMATIC, ANCA
Product Description

Cnc Machine Tool Ball Nose Cutter Aluminum Ball Mill With 2 Flutes



Introduction of the carbide materials of the End mill

Carbide Grade Technical Details of tungsten carbide rod
10U Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44 Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um



The materials to be cut

Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63



Corresponding Coating

Carbide Grade HRC of End mill Corresponding Coating
10U HRC45-50 AlTiN
12U HRC55-58 TiAlN
K40 HRC60-62 TiSlN
K44 HRC65-70 Nano



Introduction of carbide materials of the End mill

  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue





Size

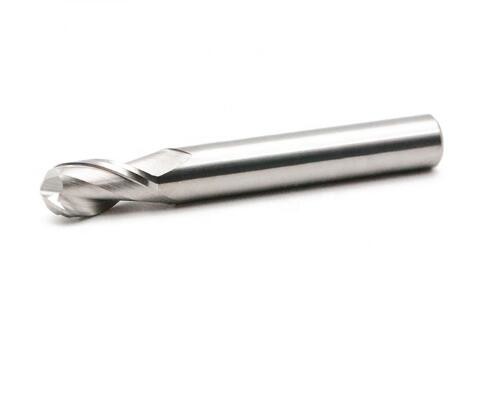

2 flutes Ballnose End Mill

Cnc Machine Tool Ball Nose Cutter Aluminum Ball Mill With 2 Flutes 0



HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70

Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE

Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,

Titanium , alloy, harden steel, stainless steel, HSS etc.

Code No.



Diamter

d

Cutting length

l

Total length

L

Shank

D

Flutes

Z


2GW2-01002050 1 2 50 4 2
2GW2-01504050 1.5 3 50 4 2
2GW2-02050500 2 4 50 4 2
2GW2-02507050 2.5 5 50 4 2
2GW2-02008050 3 6 50 4 2
2GW2-04010050 4 8 50 4 2
2GW2-04015075 4 8 75 4 2
2GW2-04020100 4 8 100 4 2
2GW2-05012050 5 10 50 6 2
2GW2-06015050 6 12 50 6 2
2GW2-06020075 6 12 75 6 2
2GW2-06020100 6 12 100 6 2
2GW2-06020060 8 16 60 8 2
2GW2-08025075 8 16 75 8 2
2GW2-08025100 8 16 100 8 2
2GW2-010025075 10 20 75 10 2
2GW2-010040100 10 20 100 10 2
2GW2-012020075 12 24 75 12 2
2GW2-012040100 12 24 100 12 2
2GW2-014020080 14 28 80 14 2
2GW2-014100100 14 28 100 14 2
2GW2-016040100 16 32 100 16 2
2GW2-018040100 18 36 100 18 2
2GW2-020040100 20 40 100 20 2
2GW2-06040150 6 12 150 6 2
2GW2-08050150 8 16 150 8 2
2GW2-010050150 10 20 150 10 2
2GW2-012050150 12 24 150 12 2
2GW2-014060150 14 28 150 14 2
2GW2-016060150 16 32 150 16 2
2GW2-018060150 18 36 150 18 2
2GW2-020060150 20 40 150 20 2
