End Mill Tungsten Carbide Rod D8 *330mm Carbide Cutting Tools
10pcs
MOQ
negotiable
Price
End Mill Tungsten Carbide Rod D8 *330mm Carbide Cutting Tools
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

End Mill Tungsten Carbide Rod

,

Yg15 Tungsten Carbide Rod

,

D8 *330mm Carbide Cutting Tools

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Tolerance: H6 Finish Grind / Blank
Quality: Hip-Sintered, Micro Grain
Sizes: Diameter 1~ Diameter 32, Length 330
Types: Solid Carbide Rods, Rods With Coolant Holes
Raw Material: 100%
Grade: Yg6, Yg8, Yg10, Yl10.2, Yg12,Yg15
Precision: High Precision
Product Description

1. HIP sintering to ensure good performance.
2. various grades and types available according to different working environment request.
3. very good price, discount for large quantity.
4. fast delivery time.
5. high precision ground, such as h6.



Product Introduction
1.Tungsten carbide rod are mostly applied for drill bits, end mills, and reamers with sub-micron grain grade YG10X, for non-ferrous precision cutting and wood cutting with grade YG6X, and for fiberglass reinforced plastics, titanium alloys, hardened steel with ultra-fine grain grade YG8X, etc.
2. The tungsten carbide rods we can manufacture and supply are varied in different sizes as well as tungsten carbide grades.
3. Following is a detailed description of one kind specification of tungsten carbide rod:

  • Main function: Diameter:1.5 mm x 330mm
  • Surface Condition: Sintered blank
  • Chemical Composition: WC :88.5% + Co: 10% + Others: 1.5%
  • Density: 14.2~14.6 g/cm3
  • Hardness: HRA91.5 min.
  • T.R.S.: 3200N/mm2 min.

4. Tungsten carbide rods include rods with the shapes of round, rectangular and square, solid rods and rods with one or more straight or coolants. The grades are mostly fine and super fine grain with high performance.
5. Tungsten carbide rod applications include drill bits, end mills, and reamers. Custom diameters and length are also available in these grades as well as metric sizes.

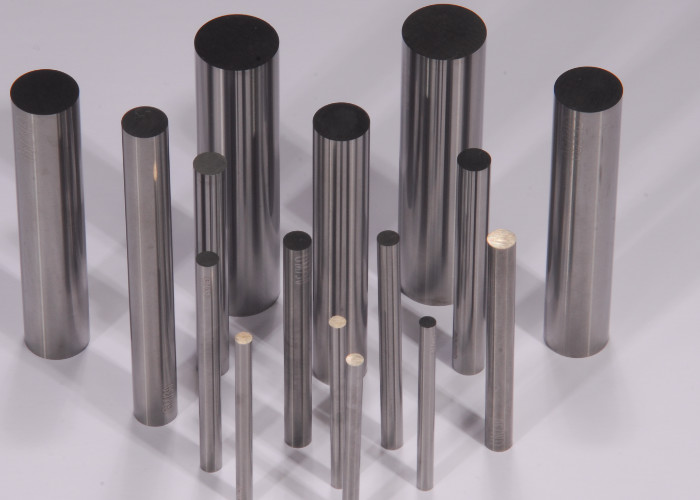

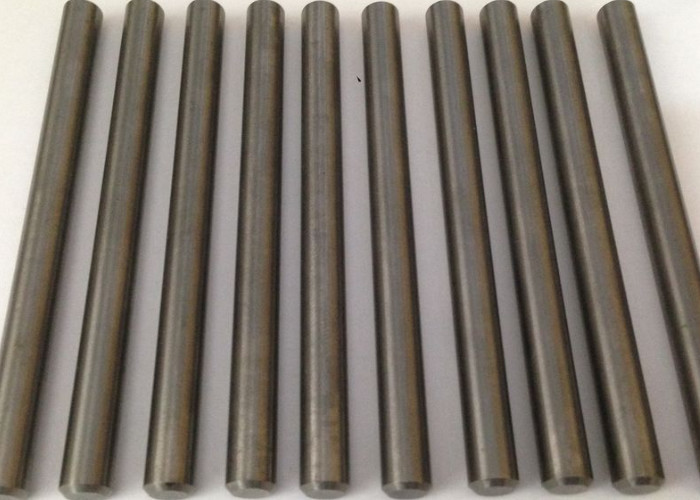

Product picture

End Mill Tungsten Carbide Rod D8 *330mm Carbide Cutting Tools 0

End Mill Tungsten Carbide Rod D8 *330mm Carbide Cutting Tools 1



Grade ISO range Cobalt % Density
g/cm3
Hardness
HRA
TRS
N/mm2
YG8 K30 8 14.80 89.5 2200
YG6 K20 6 14.95 90.5 1900
YG6X K10 6 14.95 91.5 1800
YL10.2 K30 10 14.50 91.8 2400
YG13X K30-K40 13 14.30 89.5 2600
YG15 K40 15 14.00 87.5 2800




Solid Rods (Metric) 330mm



Unground
h6

L

Tol.
Unground
h6

L

Tol.
D Tol. D Tol.
Ø2.2 +0.3/+0 2.0 330 +5/+0 Ø17.2 +0.3/+0 17 330 +5/+0
Ø3.2 +0.3/+0 3.0 330 +5/+0 Ø18.2 +0.3/+0 18 330 +5/+0
Ø4.2 +0.3/+0 4.0 330 +5/+0 Ø19.2 +0.3/+0 19 330 +5/+0
Ø5.2 +0.3/+0 5.0 330 +5/+0 Ø20.2 +0.3/+0 20 330 +5/+0
Ø6.2 +0.3/+0 6.0 330 +5/+0 Ø21.2 +0.3/+0 21 330 +5/+0
Ø7.2 +0.3/+0 7.0 330 +5/+0 Ø22.2 +0.3/+0 22 330 +5/+0
Ø8.2 +0.3/+0 8.0 330 +5/+0 Ø23.2 +0.3/+0 23 330 +5/+0
Ø9.2 +0.3/+0 9.0 330 +5/+0 Ø24.2 +0.3/+0 24 330 +5/+0
Ø10.2 +0.3/+0 10.0 330 +5/+0 Ø25.2 +0.3/+0 25 330 +5/+0
Ø11.2 +0.3/+0 11.0 330 +5/+0 Ø26.2 +0.3/+0 26 330 +5/+0
Ø12.2 +0.3/+0 12.0 330 +5/+0 Ø27.2 +0.3/+0 27 330 +5/+0
Ø13.2 +0.3/+0 13.0 330 +5/+0 Ø28.2 +0.3/+0 28 330 +5/+0
Ø14.2 +0.3/+0 14.0 330 +5/+0 Ø29.2 +0.3/+0 29 330 +5/+0
Ø15.2 +0.3/+0 15.0 330 +5/+0 Ø30.2 +0.3/+0 30 330 +5/+0
Ø16.2 +0.3/+0 16.0 330 +5/+0





Waiting for your kindly reply!
