Hrc65 2 4 Flute Ball Nose End Mill With Blue Nano Coating
10pcs
MOQ
negotiable
Price
Hrc65 2 4 Flute Ball Nose End Mill With Blue Nano Coating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Hrc65 4 Flute Ball Nose End Mill

,

Nano 4 Flute Ball Nose End Mill

,

Coating 2 Flute Ball Nose End Mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Model NO.: Ball Nose
Helix Angel:: 30° /35°/ 45°
Material: Tungsten Carbide,Carbide,HSS
CNC Machine: Anca
Suitable For:: Mould Steel,Stainless Steel,
Testing Equipment: ZOLLER
Product Description

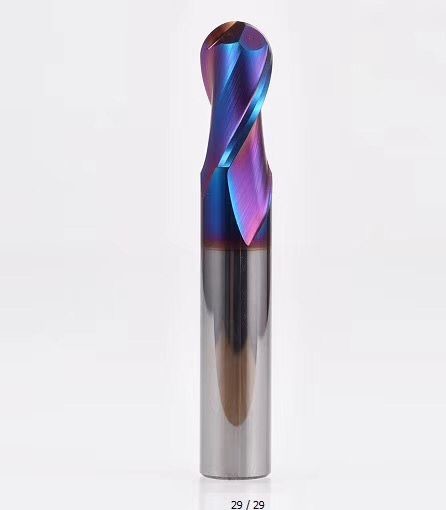

High Performance HRC65 Ball Nose End Mill With Blue Nano Coating





Standard Sizes





Code No.



Diamter

d

Cutting length

l

Total length

L

Shank

D

Flutes

Z


2GW4-01002050 1 3 50 4 2
2GW4-01504050 1.5 4 50 4 2
2GW4-02050500 2 5 50 4 2
2GW4-02507050 2.5 7 50 4 2
2GW4-03008050 3 8 50 4 2
2GW4-04010050 4 10 50 4 2
2GW4-04015075 4 15 75 4 2
2GW4-04020100 4 20 100 4 2
2GW4-05012050 5 13 50 6 2
2GW4-06015050 6 15 50 6 2
2GW4-06020075 6 20 75 6 2
2GW4-06020100 6 30 100 6 2
2GW4-06020060 8 20 60 8 2
2GW4-08025075 8 25 75 8 2
2GW4-08025100 8 35 100 8 2
2GW4-010025075 10 25 75 10 2
2GW4-010040100 10 40 100 10 2
2GW4-012020075 12 30 75 12 2
2GW4-012040100 12 40 100 12 2
2GW4-014020080 14 30 80 14 2
2GW4-014100100 14 30 100 14 2
2GW4-016040100 16 40 100 16 2
2GW4-018040100 18 40 100 18 2
2GW4-020040100 20 40 100 20 2
2GW4-06040150 6 40 150 6 2
2GW4-08050150 8 50 150 8 2
2GW4-010050150 10 50 150 10 2
2GW4-012050150 12 50 150 12 2
2GW4-014060150 14 60 150 14 2
2GW4-016060150 16 60 150 16 2
2GW4-018060150 18 60 150 18 2
2GW4-020060150 20 60 150 20 2
Hrc65 2 4 Flute Ball Nose End Mill With Blue Nano Coating 0


Specification:





1. Products Description

Products Name Carbide endmill cutter
Work piece HRC45 , HRC55 , HRC60 , HRC65 , HRC68
Coating Type ALTIN , TiAIN ,Ticn ,Tin ,Tialn ,Uncoated
Size Standard sizes or customized sizes
Logo According your requests
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Length 50,60-100 mm
Flutes No. 2/3/4/5/6,etc
Cutting Form Flat, Square, Ball nose, Corner Radius, Long neck,Roughing,etc
MOQ 1pc
Samples time 7 dyas
OEM Acceptable
Stock Rich
Certification Available ISO 90001
Production Capacity 50000 pcs per month
Payment terms T/T, PAYPAL, WESTERN UNION
Packing Details Plastic pipe in carton box with full of bubble paper and foam with 33cm*23cm*19cm





Why Choose Grewin Tools?


(1) The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products
(2) High precision CNC machines, high standard and strict inspection
(3) Strong R&D center and QC teams meet your special demands
(4) The company has passed ISO 9001: 2008 quality system
(5) Possesses advanced production equipments, complete testing instruments
(6) Fast delivery time and Convenient Transportations
(7) More than 1000 products are available
(8) For your suggestions or complaints, We will handle them Soonest
(9)Nonstandard products are available according to customer's drawing or customer's sample.
(10)We olso design and manufacture products, according to the request of customer's.
(11)If you have any questions, please cantact me anytime, Grewin will warmly welcome your inquiry.
