Groung Or Unground Tungsten Carbide Rod With Two Straight Coolant Holes

Groung Or Unground Tungsten Carbide Rod With Two Straight Coolant Holes
Groung Or Unground Tungsten Carbide Rod With Two Straight Coolant Holes Groung Or Unground Tungsten Carbide Rod With Two Straight Coolant Holes Groung Or Unground Tungsten Carbide Rod With Two Straight Coolant Holes Groung Or Unground Tungsten Carbide Rod With Two Straight Coolant Holes

Large Image :  Groung Or Unground Tungsten Carbide Rod With Two Straight Coolant Holes

Product Details:

Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Detailed Product Description
Grade: Yg6, Yg8, Yg10, Yl10.2, Yg12, Yg15 Tolerance: H6 Finish Grind / Blank
Surface Treatment: Unground, Ground Quality: Hip-Sintered, Micro Grain
Size: Diameter 1~ Diameter 32, Length 330 Types: Solid Carbide Rods, Rods With Coolant Holes
Precision: High Precision Raw Material: 100%
Delivery Time: 10-15 Days Hardness: 90.5/89.5/91.8/87.5/87.5-90.5 HRC
High Light:

tungsten metal rod

,

carbide drill rod



Grewin Carbide Polished Grinding Rods With High-Quality Raw Materials



Application

UF09--High Speed Milling; Chilled steel; Plastic; Fiber reinforced material; Aluminium alloy; Graphite; etc.
UF10N--High Speed Milling & Drilling; Wood and Paper; Titanium alloy; Fiber reinforced material; Aluminium alloy; etc.
UF12-- High Speed Milling; Carbon steel; Stainless steel; Titanium alloy; Nickle base alloy; etc.
UF10-- High Speed Milling; hardened steel;Plastic; Fiber reinforced material; Aluminium alloy;
UF1-- High Speed Milling; hardened steel;Plastic; Fiber reinforced material; Aluminium alloy;
YG6X-- High Speed Drilling & reaming;Chilled cast iron, Alloy steel
YL10.2--Medium Speed Milling; Carbon steel, alloy steel; Stainless steel; Nickle base alloy; Cast iron; etc.





1. Material: 100% virgin raw material with submicron grain size;
2. Grade: Various grades for choice;
3. With strict tolerance extent control, the tolerance can reach +/-0.01mm;
4. Precision Ground and polished;
5. Product Types available: Blank rods, ground rods, thread rods, rod with one/two/three holes;
6. High wear resistance,high hardness and impact toughness;
7. Advanced technology , automatic pressing , HIP sintering and precision grinding;
8. Having very good mechanical &chemical stability;
9. High quality & reasonable price & fast delivery & best service.





Main grades for solid carbide welding Rod:
Grade ISO grade Density Hardness TRS
    (g/cm3) (HRA) (Mpa)
KR20 K20 14.95 91 1800
SS10 K40 14.5 88 2500
YKM6A K10 14.95 92.5 1800
KR30 K30 14.7-14.8 90 1950





Types available
Tungsten carbide rods diameter from 1mm-45mm, length from 50mm-1000mm
One coolant hole rods diameter from 3mm -30mm, length is 330mm
Two coolant holes rods diameter from 4mm -20mm, length is 330mm
Two spiral coolant hole with 30 degree, diameter from 6mm -20mm, length is 330mm



Payment
T/T, Western Union, Paypal (Choose your convenient way)




Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)




Delivery time
15days




Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.

OEM Services Offered

Customized Tools Offered

Free laser marking on tools and boxes Offered

Fast delivery time and Convenient Transportations. We have FedEx,DHL,TNT,UPS,EMS,etc.




Product Show

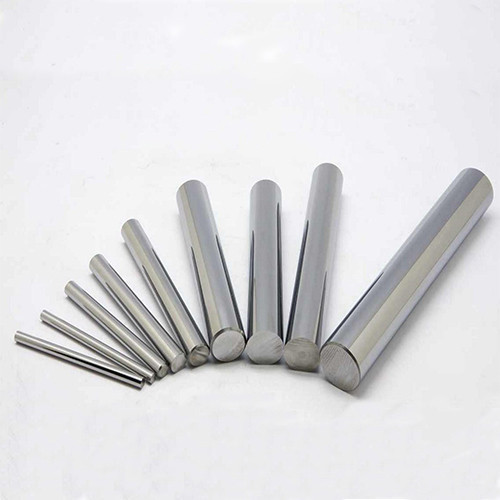

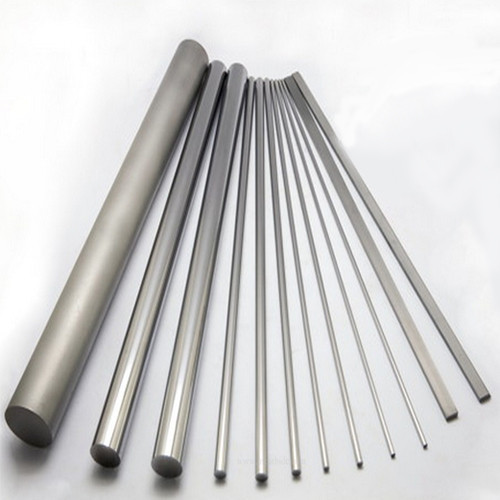

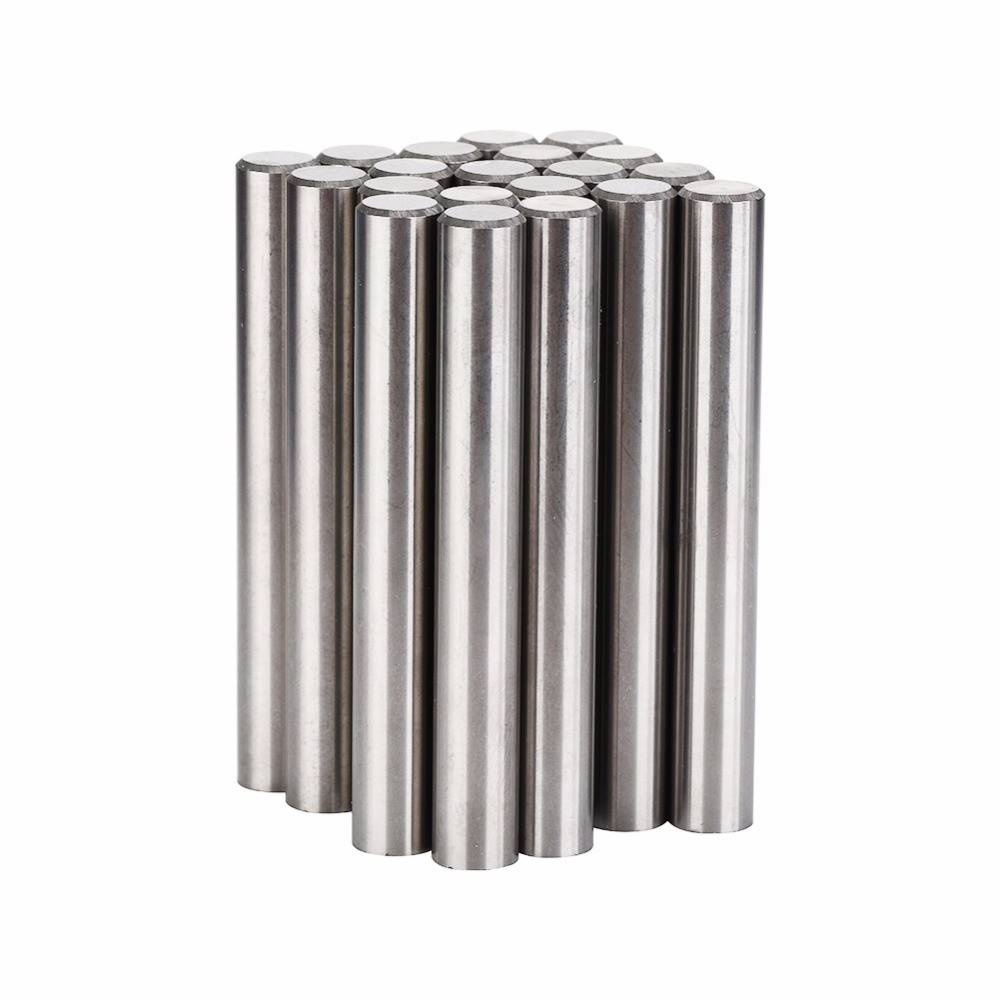

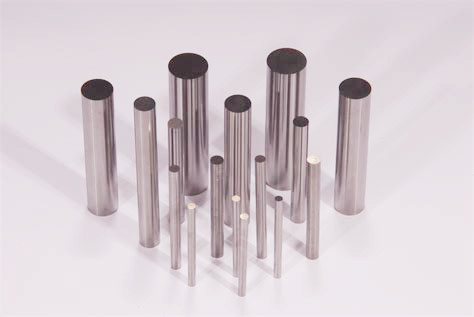

Groung Or Unground Tungsten Carbide Rod With Two Straight Coolant Holes 0

Groung Or Unground Tungsten Carbide Rod With Two Straight Coolant Holes 1
