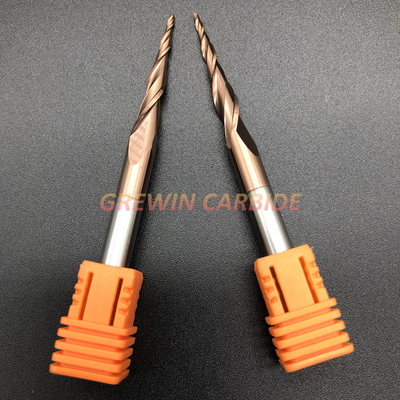

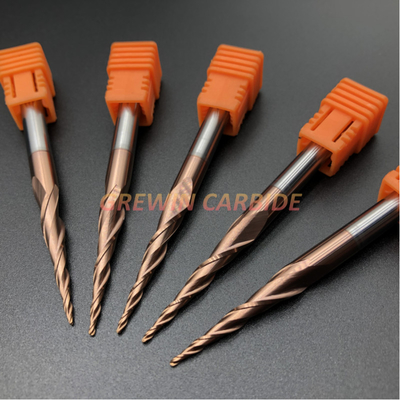

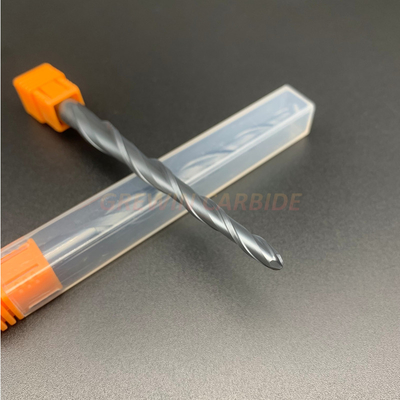

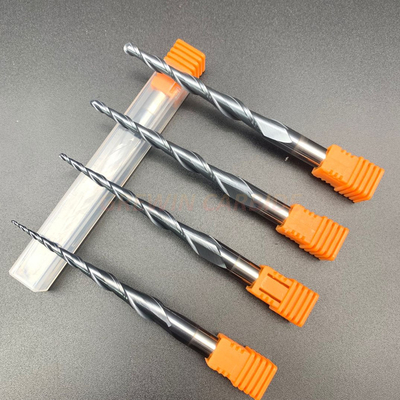

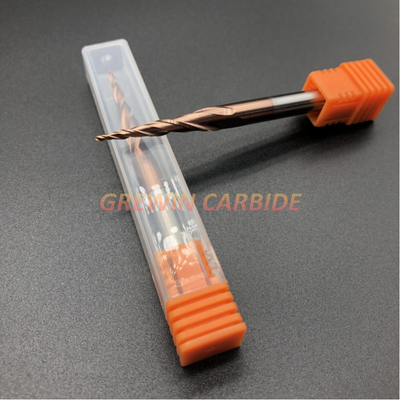

Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating

Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating
Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating

Large Image :  Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating

Product Details:

Place of Origin: hunan,china
Brand Name: gw
Certification: iso9001
Model Number: R2.0*D10*70*110L

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: STANDARD BOX
Delivery Time: 7DAYS
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS PER MONTH
Detailed Product Description
Coating: AlTiN Material: Carbide
Type: End Mill Diameter: 1-20mm
Overall Length: 50-150mm Suitable For: Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel
Machine Type: Milling Machine Usage: Metal
Hrc: 50/55 Processing Type: Cutting And Engraving

Description:

High quality and extra long service life

Made of: Imported ultrafine particles of tungsten steel.

Suitable Materials: Hard steel, like carbon steel, alloy steel, tool steel, hardened and tempered steel, cast iron, stainless-steel, etc

Shank Diameter: 10mm

Cutting Edge Diameter: 4.0mm

Cutting Edge Length: 70mm

Overall Length: about 110mm

Package includes:

1pc R2.0*D10*70*110L HRC55 2F tapered ball nose CNC router End Milling bits



Size List:

R0.25*15*D4*50
R0.5 *15*D4*50
R0.75*15*D4*50
R1.0* 15*D4*50
R0.25*20.5*D4*50
R0.5 *20.5*D4*50
R0.75*20.5*D4*50
R1.0*20.5*D4*50
R0.25*20*D6*50
R0.5 *20*D6*50
R0.75*20*D6*50
R1.0 *20*D6*50
R0.25*30.5*D6*75
R0.5 *30.5*D6*75
R0.75*30.5*D6*75
R1.0 *30.5*D6*75
R1.5 *30.5*D6*75
R2.0 *30.5*D6*75
R2.0*60*D6*100
R0.5*47*D8*85
R1.0*47*D8*85
R1.5*47*D8*85
R2.0*47*D8*85
R0.5 *60*D8*100
R1.0*60*D8*100
R1.5 *60*D8*100
R2.0*60*D8*100
R2.0*70*D10*110
R2.0 *70*D12*120
R0.25*15*3.175*38
R0.5*15*3.175*38
R0.75*15*3.175*38
R1.0*15*3.175*38



Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating 0Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating 1Tungsten Carbide 2 Flute Taper Ball Nose End Mill CNC Machine Tool With Coating 2
