Tungsten Ball Nose HRC65 Carbide Square End Mill
10pcs
MOQ
negotiable
Price
Tungsten Ball Nose HRC65 Carbide Square End Mill
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

NANO Carbide End Mill

,

6mm carbide end mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Coating: TiAIN,AlTiN,TiN, NANO
Material: Carbide
Type: End Mill
Diameter: 1-20mm,Customized Or Standard
Overall Length: 50-150mm,50~150mm / Customized
Suitable For: Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel
Flute: 2/3/4 Flutes
Machine Type: Milling Machine
Usage: General High Speed Cutting,Metal,etc,Cutting Machine
Hrc: 45/55/60/65
Application: CNC Process,milling,Solid Carbide End Mills
Precision: High Precision
Processing Type: Metal Cutting Tools,cutting And Engraving
Color: Blue
Delivery Time: 15-25 Days
Product Description

HRC 65 Solid Carbide Ball Nose End Mill





1.Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-12

HRC45 HRC55 HRC60 HRC65
Grain Size: 0.6um
Co: 10 %
Flexural strength: 3350N/mm2
Grain Size: 0.6um
Co: 10 %
Flexural strength: 4000N/mm2
Grain Size: 0.5um
Co: 12 %
Flexural strength: 4300N/mm2
Grain Size: 0.4um
Co: 12.5 %
Flexural strength: 4300N/mm2


2. Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Grinding equipment: WALTER, ANCA, ROLLOMATIC
Testing equipment: ZOLLER

3. Coating

Coating Color Coating Temperature Thickness (um) HV Application Temperature Friction coefficient
TiAlN Purple-Gray <600°C 3-5 3300 800 °C 0.3
AiTiN Black <600°C 3-5 3500 900 °C 0.3
TiXco Copper <600°C 3-5 3500 1500 °C 0.4
NaNo Blue <600°C 3-5 3800 1200 °C 0.4
AiCrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3






 Product size:

Order No. Flute dia (d)

Cutting length

( L)

Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12 30 12 75
13.0×33×16D×100L 13 33 16 100
14.0×40×16D×100L 14 40 16 100
15.0×40×16D×100L 15 40 16 100
16.0×40×16D×100L 16 40 16 100
17.0×40×20D×100L 17 40 20 100
18.0×40×20D×100L 18 40 20 100
19.0×40×20D×100L 19 40 20 100
20.0×40×20D×100L 20 40 20 100
25.0×40×25D×100L 25 40 25 100

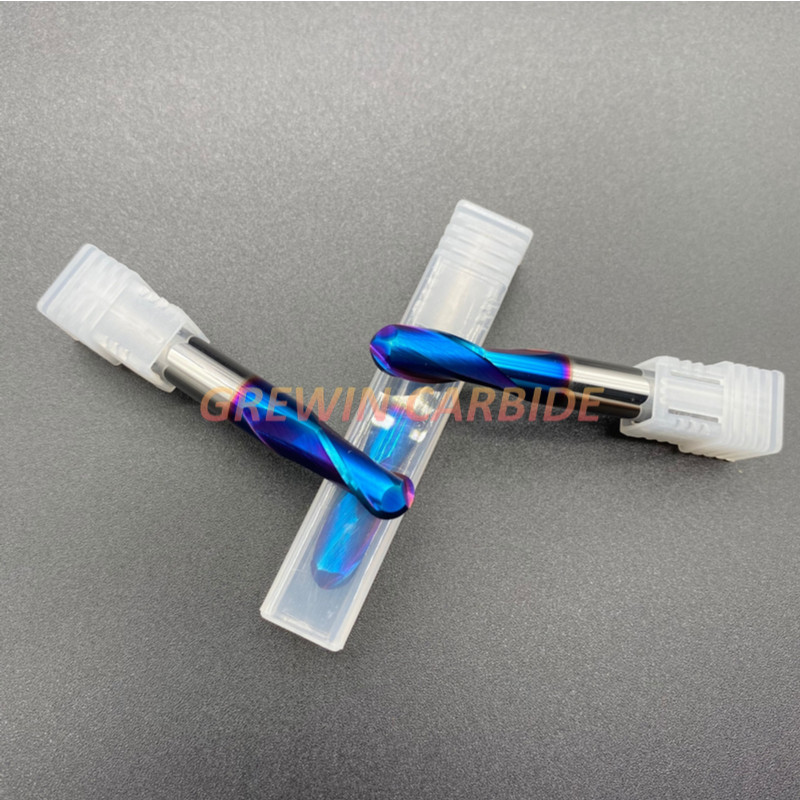

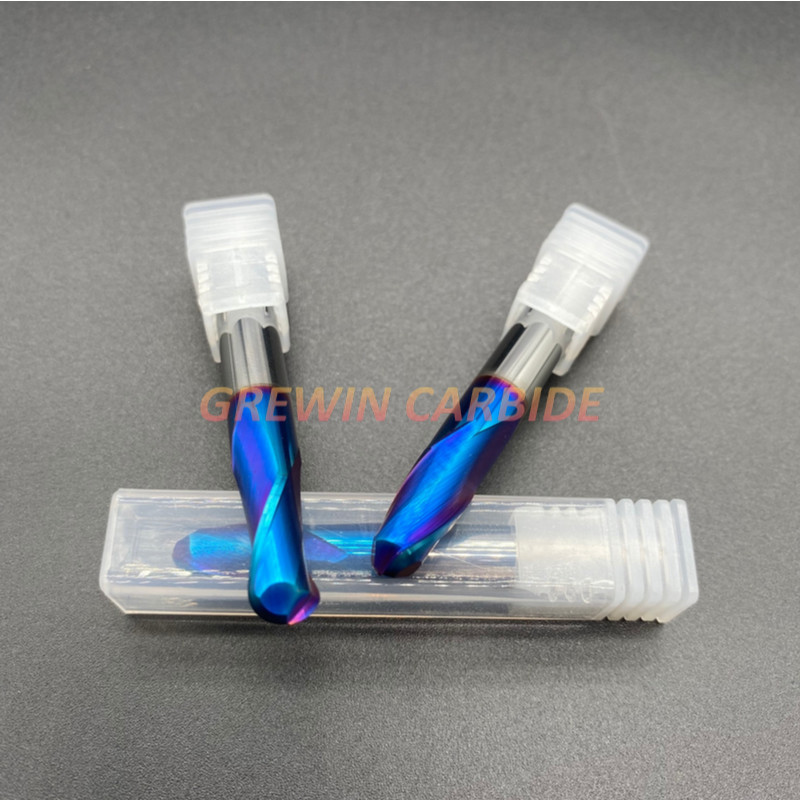

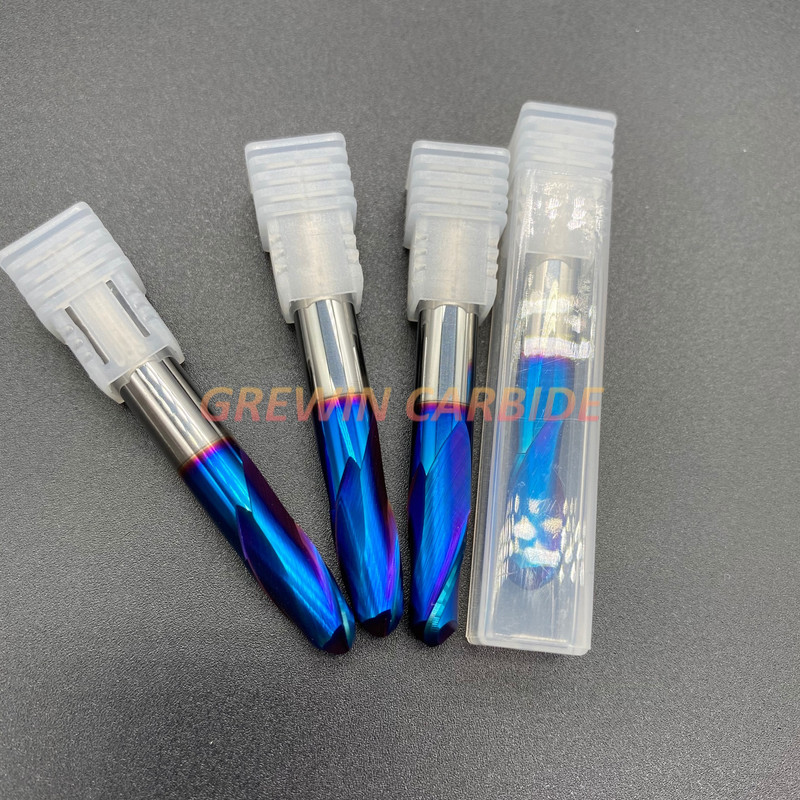

Product Show:

Tungsten Ball Nose HRC65 Carbide Square End Mill 0

Tungsten Ball Nose HRC65 Carbide Square End Mill 1

Waiting for your kindly iqnuiry.



Best regards
