CNC Machines Solid Carbide Ball Nose End Mills 5 / 6 Flutes HRC45
10pcs
MOQ
negotiable
Price
CNC Machines Solid Carbide Ball Nose End Mills 5 / 6 Flutes HRC45
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

indexable ball nose end mill

,

ball nose end mill cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Origin Place: Hunan Province Zhuzhou City
OEM: Customized
Coating: ALTIN,TIALN,TISIN,NANO Etc
Helix Angle: 30,35,45, Etc
Flutes Number: 2,3,4,6etc
Shape Of Cuttiing Edge: Flat,ballnose, Corner Radius Etc
Shank Type: Straight Shank, Groove Shank Etc
Grade: HRC45,HRC50,HRC60 Etc
Product Description



CNC Machines Solid Carbide Ball Nose End Mills 2/3/4/5/6 Flutes HRC45





1. Products Description

Grain size: 0.4-0.6um
Co : 10%, 12%
TRS : >3600 N/mm2
Hardness: HRA 91.8-92.5
Work piece: HRC45-50 HRC55-58 HRC60-62 HRC65-60
Helix angle: 30°-60°
Dia of cutting edge : 0.2-0.9 mm; 1-20 mm
Diameter of rods: 4-20 mm
Length: 50-100 mm
Cutting Form: Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. : 1-7 flutes

HRC45 HRC55 HRC60 HRC65
Grain Size:0.6um
Co:10 %
Flexural strength:3350N/mm2
Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2
Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2
Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2





2. Coating



Coating

Color

Coating Temperature

Thickness (um)

HV

Application Temperature

Friction coefficient

TiAlN
Purple-Gray <600°C 3-5 3300 800 °C 0.3
AlTiN Black <600 °C 3-5 3500 900 °C 0.3
TiSiN Copper <600 °C 3-5 3500 1500 °C 0.4
NaNo Blue <600 °C 3-5 3800 1200 °C 0.4
CrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3



3.Application

Used for cutting: Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Grinding equipment: , ANCA, ROLLOMATIC etc
Testing equipment: ZOLLER


4. Products Description

Grain size: 0.4-0.6um
Co : 10%, 12%
TRS : >3600 N/mm2
Hardness: HRA 91.8-92.5
Work piece: HRC45-50 HRC55-58 HRC60-62 HRC65-60
Helix angle: 30°-60°
Dia of cutting edge : 0.2-0.9 mm; 1-20 mm
Diameter of rods: 4-20 mm
Length: 50-100 mm
Cutting Form: Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. : 1-7 flutes

HRC45 HRC55 HRC60 HRC65
Grain Size:0.6um
Co:10 %
Flexural strength:3350N/mm2
Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2
Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2
Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2



5.Packing

Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group



6.Delivery time

Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days


7.Standard Sizes

Model No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100


8.Company Information

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc. With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.

The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.





CNC Machines Solid Carbide Ball Nose End Mills 5 / 6 Flutes HRC45 0

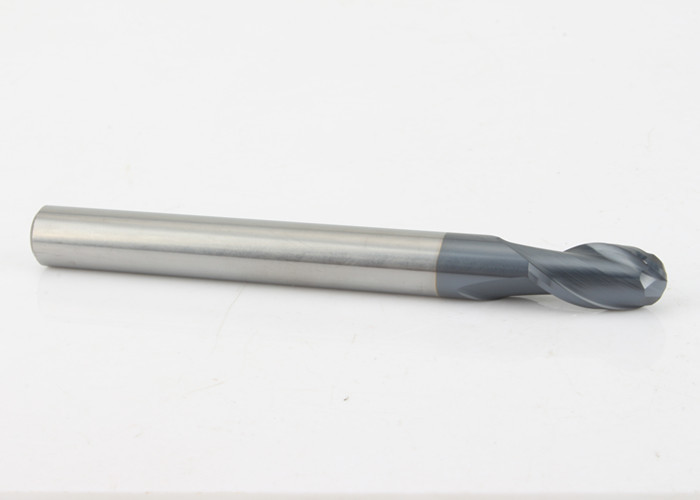

CNC Machines Solid Carbide Ball Nose End Mills 5 / 6 Flutes HRC45 1
