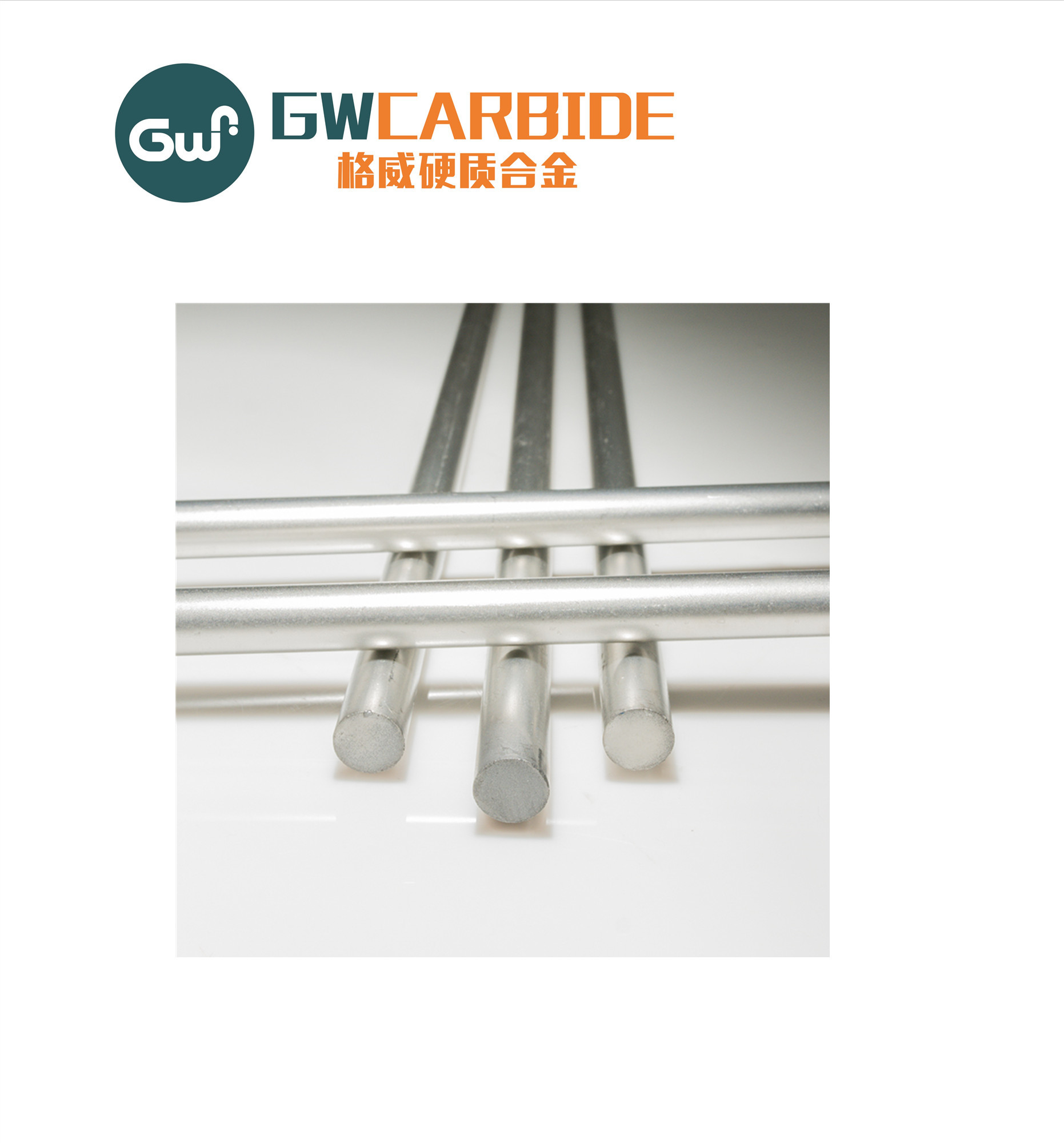

H6 Grinding Tungsten Carbide Rod Saw Blanks For End Mills Drills
10pcs
MOQ
negotiable
Price
H6 Grinding Tungsten Carbide Rod Saw Blanks For End Mills Drills
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

H6 Tungsten Carbide Rod

,

Grinding Tungsten Carbide Rod

,

Drill carbide rod saw

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Material: Tungsten Carbide And Cobalt Powders
Surface: Blank And H6 Grinding
Application: End Mills, Drills, Reamers, Taps
Grade: GW10.1, GW6, GW8, GW12
Cobalt Percent: 10%,6%,8%,12%
Production Method: Extrusion
Product Description

Tungsten Carbide Rods / Carbide Rod Blanks For Making End Mills And Drills







The range covers:

  • Carbide rods (sintered or h6 ground; with fixed lengths or customised)
  • Carbide rods with cooling channels (raw sintered or h6 ground; straight or twisted)
  • Flat and square rods

In addition:

  • Ground Cermet rods
  • Carbide blanks in any shape, based on customer drawings
  • Development of carbide components to customer specifications



Possible alternative dimensions:

  • External diameters.
  • Fixed lengths.
  • Diameter coolant hole ø di
  • Reference diameter ø dT
  • Additional carbide grades
  • Cermet rods, only fixed lengths
  • Sintered or ground (h5, h6)

Carbide blanks for rotating solid carbide tools

  • Tapered bars for stepped tools
  • Rods with hemispherical, dome, peak, roof- or pin-shape
  • Carbide blanks internal or external centering
  • Carbide blanks for milling tools, drills, reamers or threading tools



Grade Information:



Grade Grain size Cobalt Content
(%)
Density
g/cm3
Hardness
HRA
TRS
N/Mm2
GW8 Medium 8 14.7 89.5 2200
GW10.1 Extrafine 10 14.42 91.8 4000
GW6 Submicron 6 14.9 93.5 3800
GW12 Submicron 12 14.05 92.5 4000



Size range:



H6 Grinding Tungsten Carbide Rod Saw Blanks For End Mills Drills 0







Carbide blanks in accordance to customer drawings (accepted in most file formats).
