Tungsten carbide square end mills :
1. Made in high quality tungsten carbide material;
2. Made by full grinding process;
3. Precise dimension, high accuracy;
4. 100% inspection;
5. Special design for perfect cutting performance and effciency;
6. Super long tool life;
7. Customized tool design, marking, packing are available.
GRADE | ISO | DENSITY (g/cm³) |
TRS (N/mm²) |
HARDNESS (HRA) |
APPLICATION |
TF12 | K40 | 14.05 | 3200 | 91.8 | It is recommended for manufacturing of all types of drills, end mills, reaming, carving tools, suitable for dealing with stainless st- eel, nichrome, titanium alloy, heat-treated steel, cast iron, aluminum alloy, fine alum-inum, iron, plastic, graphite; |
YG15 | K40 | 14 | 2500 | 86.5 | Excellent impact and shock resistance, su- itable for cemented carbide die blanks mo-ld core, etc; |
YG6X | K10 | 14.9 | 1750 | 91.5 | Its wear Resistance is higher than YG6, used for processing hard wood, original wood, aluminum section bars, brass rod and cast iron; |
YG10X | K30 | 14.5 | 2400 | 91 | It is recommended for manufacturing of all types of drills, end mills, burrs, etc, suit-able for the hole machining of steels,gray cast iron, austenitic stainless steel and heat-resistance alloy. |
YG8 | K20 | 14.7 | 1900 | 89 | Good wear Resistance, excellent anti- impact and antiknocking properties, sui-table for the manufaturing of wood working blade and machining ferr-ous |
Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
SPECIFICATION | d1 | L1 | D | L | |
D4*12*D4*50L | 4mm | 12mm | 4mm | 50mm | |
D4*16*D4*75L | 4mm | 16mm | 4mm | 75mm | |
D4*20*D4*100L | 4mm | 20mm | 4mm | 100mm | |
D5*15*D5*50L | 5mm | 15mm | 5mm | 50mm | |
D5*20*D5*75L | 5mm | 20mm | 5mm | 75mm | |
D5*25*D5*100L | 5mm | 25mm | 5mm | 100mm | |
D6*18*D6*50L | 6mm | 18mm | 6mm | 50mm | |
D6*24*D6*75L | 6mm | 24mm | 6mm | 75mm | |
D6*30*D6*100L | 6mm | 30mm | 6mm | 100mm | |
D8*24*D8*60L | 8mm | 24mm | 8mm | 60mm | |
D8*30*D8*75L | 8mm | 30mm | 8mm | 75mm | |
D8*35*D8*100L | 8mm | 35mm | 8mm | 100mm | |
D10*30*D10*75L | 10mm | 30mm | 10mm | 75mm | |
D10*45*D10*100L | 10mm | 45mm | 10mm | 100mm | |
D12*35*D12*75L | 12mm | 35mm | 12mm | 75mm | |
D12*45*D12*100L | 12mm | 45mm | 12mm | 100mm | |
D14*45*D14*100L | 14mm | 45mm | 14mm | 100mm | |
D16*45*D16*100L | 16mm | 45mm | 16mm | 100mm | |
D18*45*D18*100L | 18mm | 45mm | 18mm | 100mm | |
D20*45*D20*100L | 20mm | 45mm | 20mm | 100mm | |
D6*45*D6*150L | 6mm | 45mm | 6mm | 150mm | |
D8*50*D8*150L | 8mm | 50mm | 8mm | 150mm | |
D10*60*D10*150L | 10mm | 60mm | 10mm | 150mm | |
D12*60*D12*150L | 12mm | 60mm | 12mm | 150mm | |
D14*70*D14*150L | 14mm | 70mm | 14mm | 150mm | |
D16*75*D16*150L | 16mm | 75mm | 16mm | 150mm | |
D18*75*D18*150L | 18mm | 75mm | 18mm | 150mm | |
D20*75*D20*150L | 20mm | 75mm | 20mm | 150mm |
1.According to your drawings paper supply product for you ;
2.Professional suggestion of product;
3.Could accept all payment terms of T/T,western union ,Paypal;
4.Professional technical for you service the product.
5.Delivery:within 25-30 days upon confirm the prepaid.
Packing:

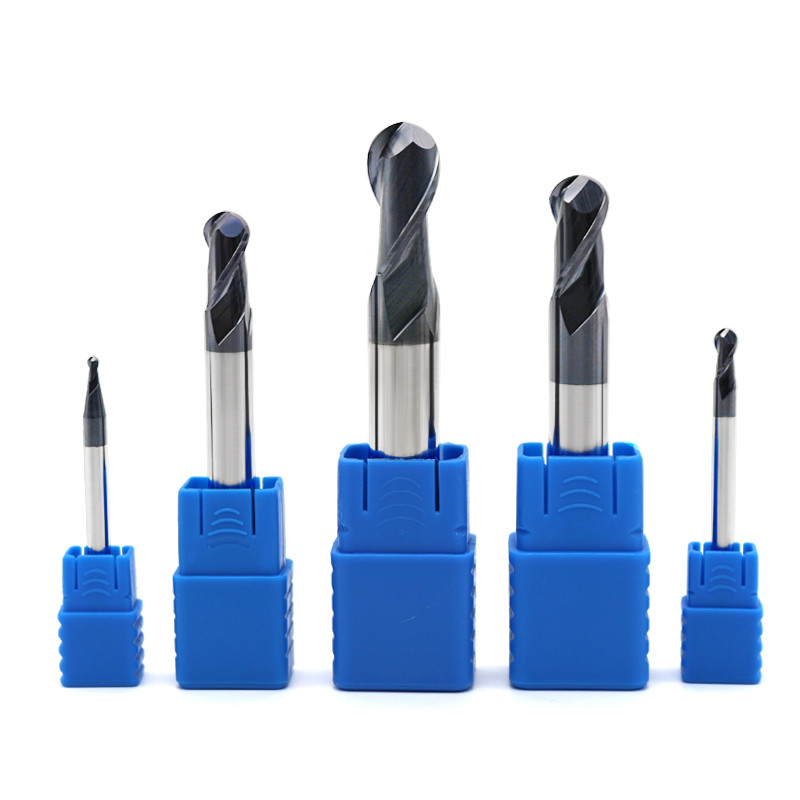

1. First packed in plastic boxes sperately
2. Then in paper box, the type can be seen from the special designed part
3. Last in cartons for final shipment
