0.5mm 2 Flute Carbide End Mill RadiusTungsten Steel Coated Cutter
10pcs
MOQ
0.5mm 2 Flute Carbide End Mill RadiusTungsten Steel Coated Cutter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Radius 2 flute carbide end mill

,

Tungsten 2 flute carbide end mill

,

0.5mm End Mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Material: Carbide
Coating: Copper Coating
Flute: 2 Flutes Ball Nose
Highest Cutting Hardness: HRC58
Usage: General Steel, Alloy Steel, Mold Steel Etc.
Design: Ball Nose
Type: End Mill
Suitable For: Cooper.Cast Iron.Carbon Steel.Mould Steel
Diameter: 1-20mm
Machine Type: CNC Milling Maching
Product Description

2 Flutes Radius 0.5mm Tungsten Ball Nose End Mill Steel Coated Cutter



Features:

* Made of high quality cemented carbide material,used in high speed M/C high speed high hardness cutting,can directly process the heat treatment mold.
* The surface with tungsten coating , longer service life.
* Sharp cutting reasonable matched with high strength of cutter.
* Arc relief angle makes tool better wear-resistance.


Package Included:
1x End Mill



Description:
2 Flutes Radius 0.5mm Tungsten Steel Coated Ball Nose End Mill Cutter


Specification:

Material Cemented carbide
Coating Tungsten steel
Flute 2 Flutes
Cutting material hardness HRC≤55
Cutting Radius R=0.5 mm
Cutting Diameter d=1mm
Shank Diameter D=4 mm
Blade length L1=2.5mm
Overall length L=50mm
Applicable materials carbon steel, die steel, alloy steel, tool steel, hardened and tempered steel, cast iron, stainless steel, steel heat treatment

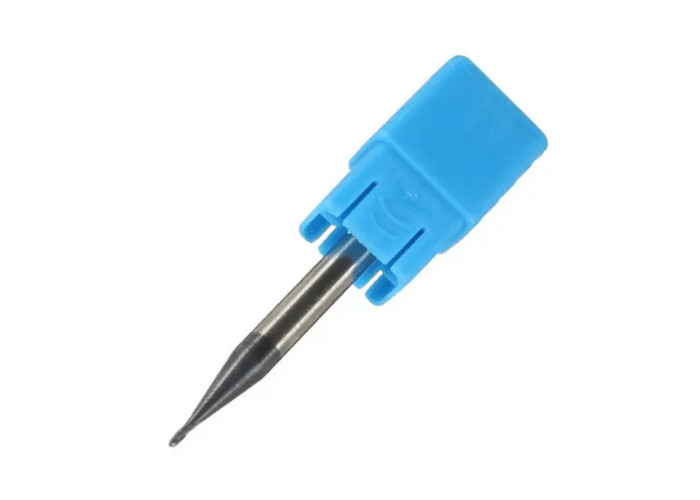

0.5mm 2 Flute Carbide End Mill RadiusTungsten Steel Coated Cutter 0

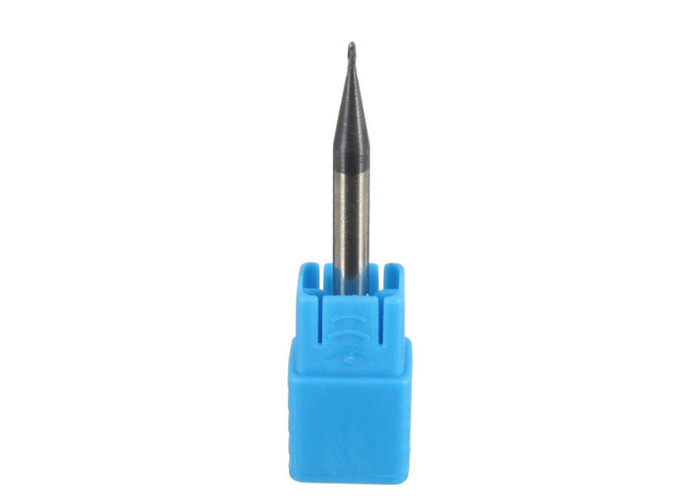

0.5mm 2 Flute Carbide End Mill RadiusTungsten Steel Coated Cutter 1

Welcome for your inquiry~

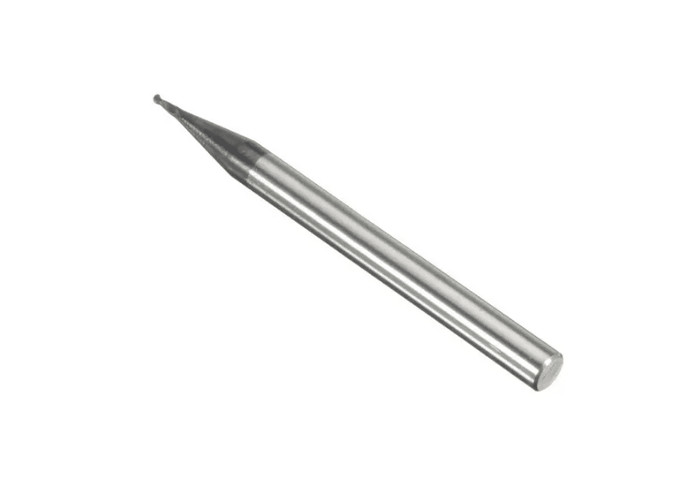

0.5mm 2 Flute Carbide End Mill RadiusTungsten Steel Coated Cutter 2
