HRC65 Solid Carbide Corner Radius 4 Flute End Mill With Blue Nano Coating
1. Product
(1) Optimized for titanium alloys,inconel, nickel alloys,and other high-temperature materials with outstanding performance in difficult- to-machine steels,stainless steels, and tool steels;
(2) Variable helix design(approx . 34°) reduces chatter and harmonics and increases materialremoval rate;
(3) Latest generation BLUE Nano coatingoffers superior hardnessand heat resistance;
(4) h6 shanktolerance for high precision tool holders;
(5) Suitable for steels up to 55Rc.
Suitable Machine:
Milling Machine, CNC processing center and so on.
Applications for:
Tool/Mould/Alloy/Carbon steel high speed processing engraved and cutting.
Advantages:
1.Imported Tungsten Carbide rod.
2.Using Import ANCA Machine high precision grinding, polish processing.
3.Sharpen edge, big chips drain, wear resistance.
4.Nano blue color coating and cut high hardness materials
Attention:
Please add cutting fluid in the milling process.
2.Standard Sizes:
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×3×4D×50L | 1.0 | 3 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×6×4D×50L | 2.0 | 6 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×11×4D×50L | 4 | 11 | 4 | 50 |
| 4.5×13×6D×50L | 4.5 | 13 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×23×10D×75L | 8.5 | 23 | 10 | 75 |
| 9.0×23×10D×75L | 9.0 | 23 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×28×12D×75L | 10.5 | 28 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×35×16D×100L | 14.0 | 35 | 16 | 100 |
| 15.0×38×16D×100L | 15.0 | 38 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
| 25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |

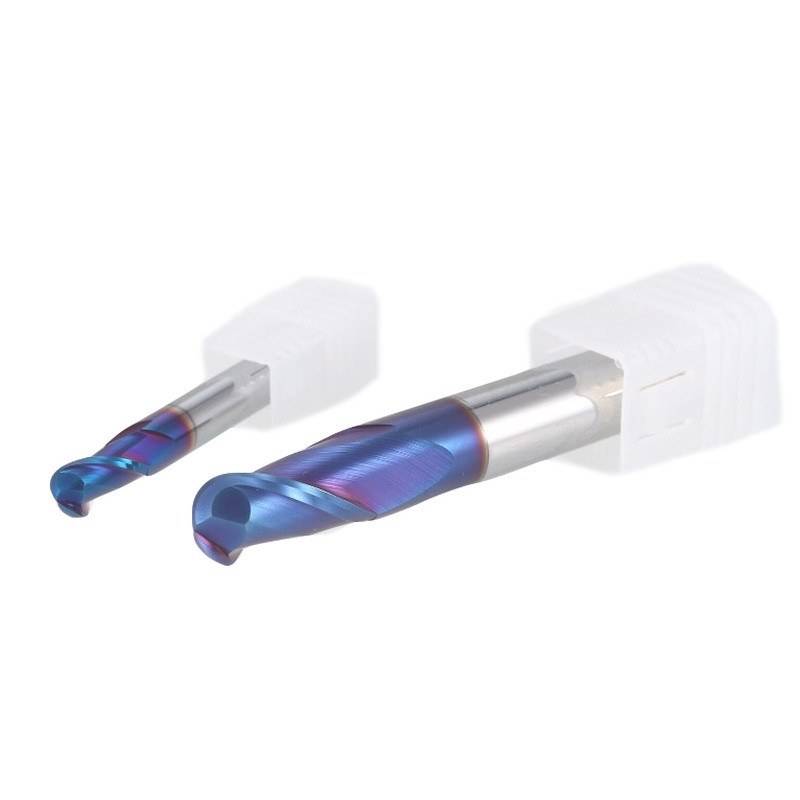

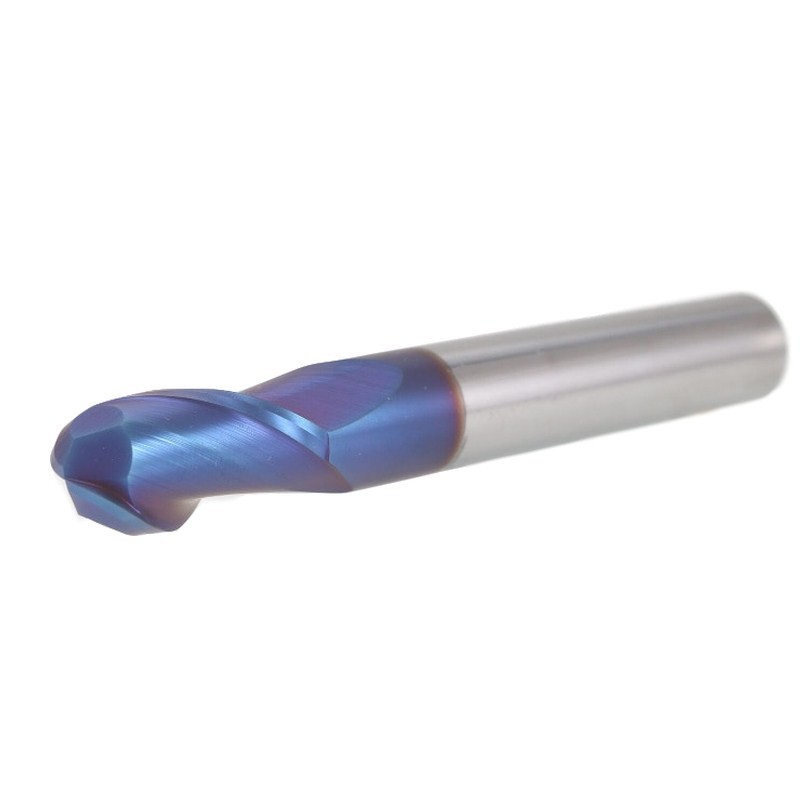

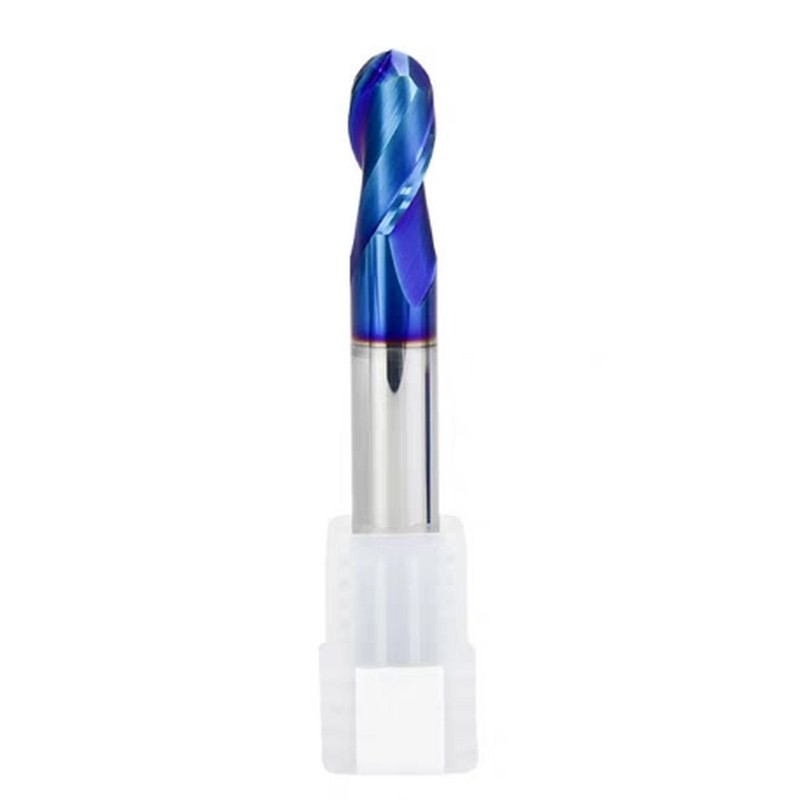

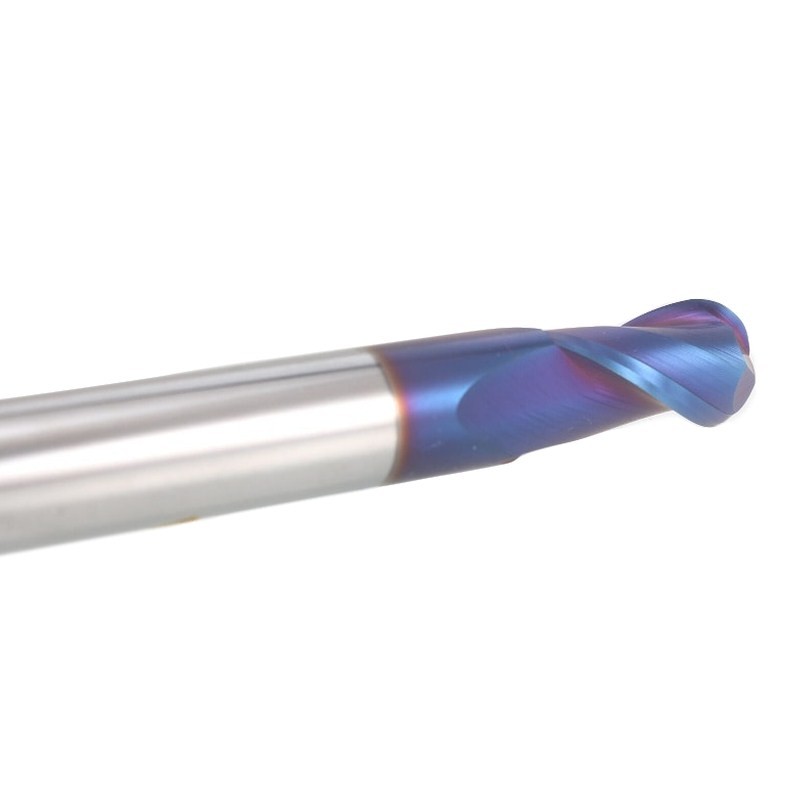

3. Products Show
4. Packing
Brand Laser printed on cutter shank, 1 PCS in a plastic tube, 10 PCS a group
5. Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days
6.Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
7.Company Introduction
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
The products we can offer:
Tungsten Carbide products: carbide inserts, tool holders, milling cutters, end mills, drill bits, reamers, wear parts, router bits, and other carbide products.
HSS products: machine taps, drill bits, end mills, gear hobs and other OEM products.
Accessories of CNC toolholders.
Any of your inquiry, we are always welcome!
