End Mills offered are solid carbide mill finish that is suitable for metal options like aluminum, non-ferrous, non-metallic metal. Featuring precision engineered flute design that provides for superior chip removal at high feed rates, these end mills also allows for achieving lower cutting forces as well as enhanced balance and finish support. These also help in providing enhanced functional control as well as in bringing reduction in chatter.
High efficient profile milling tools
1. The center design of ball cutting edge combines high strength and sharpness, and properly manages the chips generated during machining
2. Ball nose end mills can achieve distinct grooves with low roughness and high surface quality
3. Ultra fine cemented carbide substrate with excellent wear resistance
4. High-rigidity tool structure reduces vibration
5. Nano coating guarantees excellent wear resistance and high temperature stability
Product Details
1.Original raw micro grain material, high hardness and T.R.S.
a, Co: 10%,Wc:90%
b, TRS: >3600 N/mm2
c, HRA: 91.8-92.4, HRC:45/55/60/65
d, Grain size: 0.4-0.6μm
e, Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9mm; 1-20mm
Diameter of rods: 4-20mm
Length: 50-100mm
Cutting Form: Square,Ball nose, Corner Radius, Taper Flute, etc.
2.Other products: drills,reamer,tool holders, ER collet, boring cutters,carbide inserts,cutter heads,etc.
3.Application and usage:
Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic,etc.
4. Super Coating:
TiSiN TiAlN AlTiN TiCN or Blue Nano Coating
We also supply:
Carbide Two Flutes Ball Nose End Mill
Carbide Four Flutes Ball Nose End Mill
Carbide Two Flutes High Hardness Ball Nose End Mill
Carbide Taper Ball Nose End Mill
Super Micro Grain Carbide Two Flutes Ball Nose End Mill
Raw material grade: HRC 45/55/60/65.
HRC |
Use Material |
Grain Size |
Hardness (HRA) |
Bending strength |
Performance & Applications recommended |
HRC45 |
YG25 |
0.7 |
90°-91° |
2500-2800 |
Good Wear resistance, suitable for alloy, cast iron, copper, common mould steel(A3 steel). |
HRC55 |
YL10.2 |
0.6 |
91°-91.5° |
3800-4000 |
suitable for processing alloy, cast iron, copper, harden mould steel. stainless steel without harden |
HRC58 |
Taegu Tec |
0.6 |
>91.5° |
4000-4300 |
suitable for processing alloy, copper, harden mould steel. stainless steel. heat treat materials. |
HRC60 |
Kenna2210 |
<0.6 |
>91.5° |
4000-4300 |
suitable for processing alloy, copper, harden mould steel. stainless steel. heat treat materials. |
HRC65 |
AF k34 |
0.4 |
94° |
5000-6000 |
Good grain size, Fine carbide, high wear resistance ,high bending strength, suitable for finishing processing. |

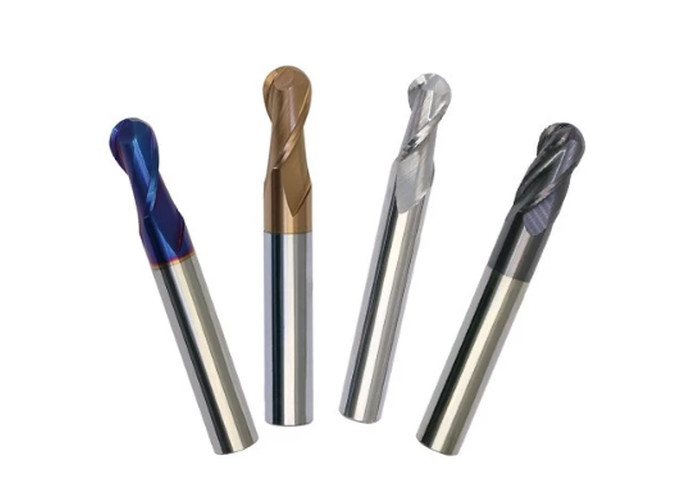

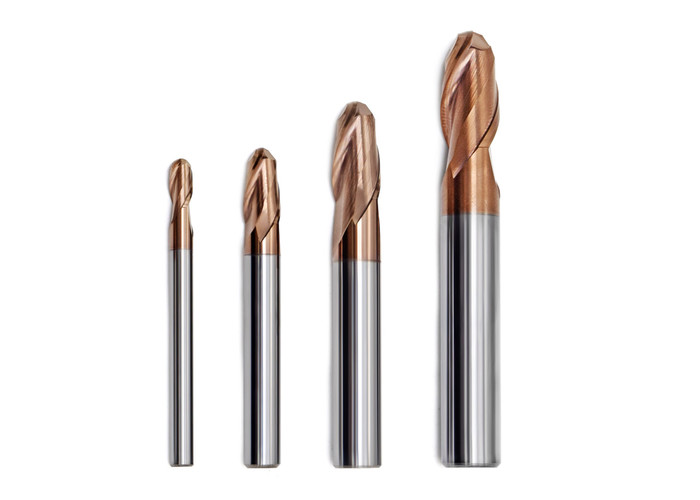

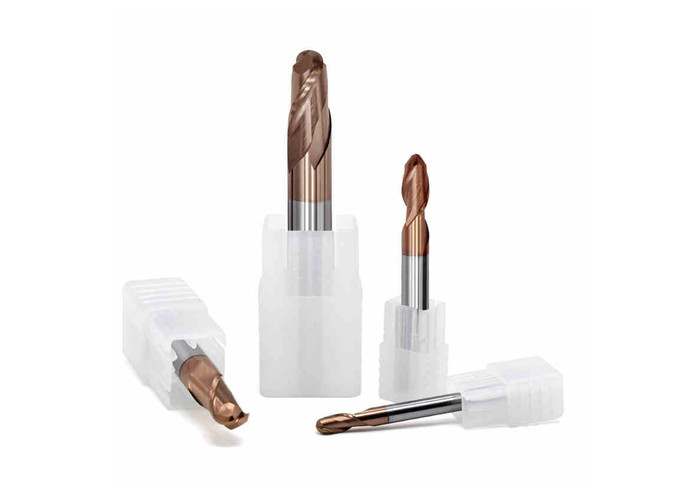

Product Show
