Blue Coated Solid Carbide End Mills Spiral Ball Nose CNC Carbide Cutter
10pcs
MOQ
Blue Coated Solid Carbide End Mills Spiral Ball Nose CNC Carbide Cutter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Blue Coated Solid Carbide End Mills

,

Spiral Solid Carbide End Mills

,

Ball Nose CNC Carbide Cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Coating: Blue Nano Coating
Type: End Mill
Diameter: 1-20mm,Customized Or Standard
Overall Length: 50~150mm / Customized
Suitable For: Cooper.Cast Iron.Carbon Steel.Mould Steel
Flute: 2/3/4 Flutes,Single Flutes
Machine Type: Milling Machine,ANCA
Hrc: 45/55/60/65
Processing Type: Metal,Metal Cutting Tools,cutting And Engraving,Casting,end Mill
Color: Blue
Product Description
Descriptions:

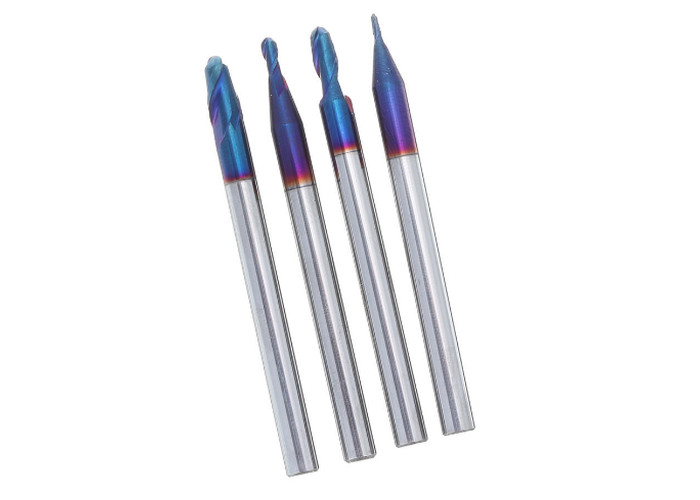

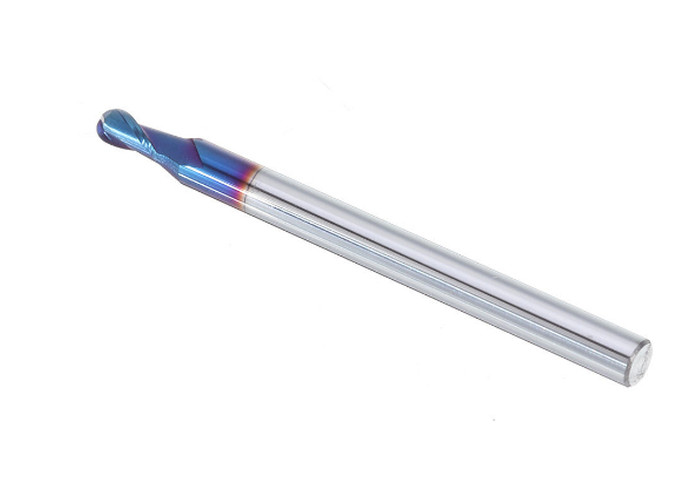

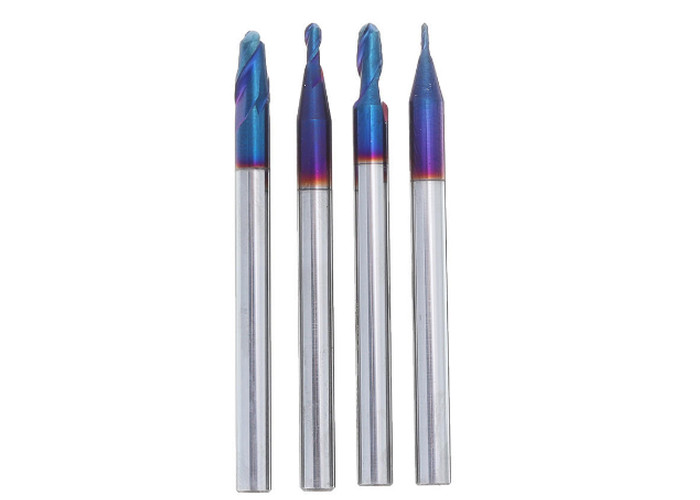

0.5-2mm 2 Flutes Blue Coated Spiral Ball Nose End Mill Tungsten Steel CNC Carbide Milling Cutter

Specifications:
Material: Carbide (tungsten steel)
Coating: Blue Nano Coating
Flutes: 2 Flutes
Worked material HRC: 0-60 Degree
Size Radius(mm) Shank Diameter(mm) Full Length(mm) Flutes
1:R1.5*3D*50L*2T 1.5 3 50 2
2:R0.5*4D*50L*2T 0.5 4 50 2
3:R1.5*4D*50L*2T 1.5 4 50 2
4:R0.75*4D*50L*2T 0.75 4 50 2
5:R2*4D*50L*2T 2 4 50 2
6:R1.75*4D*50L*2T 1.75 4 50 2
7:R1*4D*50L*2T 1 4 50 2
8:R1.25*4D*50L*2T 1.25 4 50 2

Features:
- Use top quality carbon steel.
- Excellent chip removal effect.
- Double blade with 35 degree spiral Angle design.
- Suitable for processing stainless steel, die steel, heat treatment steel ect.
- Highest harness could reach HRC60 for alloy steel mold steel.

Package Included:
1Pc x Ball Nose Milling Cutter

More Details:
Blue Coated Solid Carbide End Mills Spiral Ball Nose CNC Carbide Cutter 0Blue Coated Solid Carbide End Mills Spiral Ball Nose CNC Carbide Cutter 1
We are waiting for your inquiry!
