20mm Tungsten Carbide CNC Milling Bits Aluminum Ball End Milling Cutter
10pcs
MOQ
USD3.56/pcs
Price
20mm Tungsten Carbide CNC Milling Bits Aluminum Ball End Milling Cutter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou
Brand Name: without brand
Certification: ISO9001, SGS
Model Number: as your requirements
High Light:

20mm CNC Milling Bits

,

Tungsten Carbide CNC Milling Bits

,

Aluminum Ball End Milling Cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-35 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Specifications
Material: Carbide
Type: Standard Or Custom End Mill
Diameter: 1-20mm
Overall Length: 50-150mm
Flute: 3 Flutes
Hrc: 45/55/60/65
Usage: General High Speed Cutting
Helix Angle: 35°/45°/ 55°
Product Description

Products Description
Cutting Form: Flat, Square, Ball nose, Corner Radius, Taper, etc
Flutes No. 1-6

HRC45 HRC55 HRC60 HRC65
Grain Size:0.6um
Co:10 %
Flexural strength:3350N/mm2
Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2
Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2
Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2

Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Coating


Coating

Color

Coating Temperature

Thickness (um)

HV

Application Temperature

Friction coefficient

TiAlN
Purple-Gray <600°C 3-5 3300 800 °C 0.3
AlTiN Black <600 °C 3-5 3500 900 °C 0.3
TiSiN Copper <600 °C 3-5 3500 1500 °C 0.4
NaNo Blue <600 °C 3-5 3800 1200 °C 0.4
CrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3



Product Show:

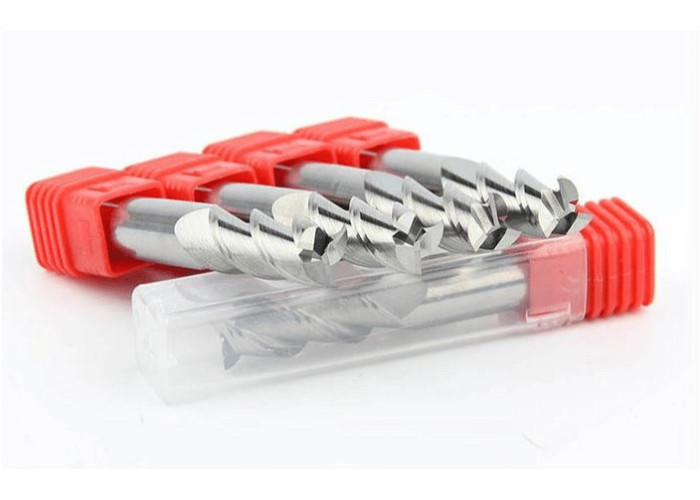

20mm Tungsten Carbide CNC Milling Bits Aluminum Ball End Milling Cutter 0

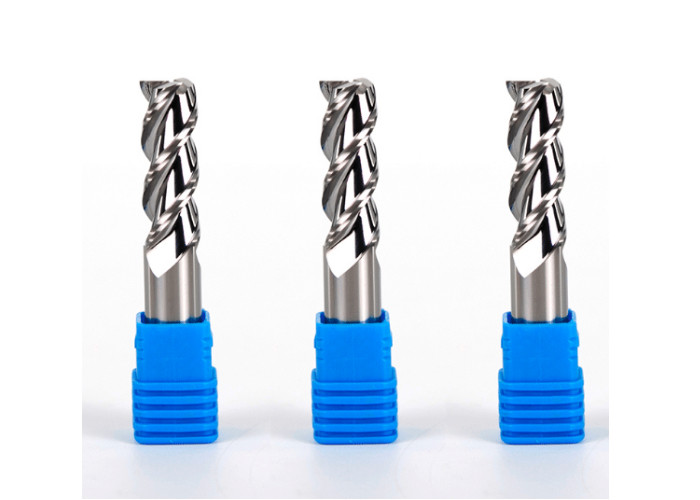

20mm Tungsten Carbide CNC Milling Bits Aluminum Ball End Milling Cutter 1
