| ISO application area | K15-K30 | ||
| Material | Tungsten carbide,Tungsten Cobalt Alloy, | ||
| Precision | 0.005-0.01mm | ||
| Coating | AlTiN, TiAlN, TiAISI,TiSiN, TiN, DLC,Nano, Diamond | ||
| Chemical Composition | Wc+other 89.5-90.5 Co 9.5-10.5 | ||
| HRC | HRC45 HRC55 HRC58 HRC60 HRC65 | ||
| Suitable For | cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel | ||

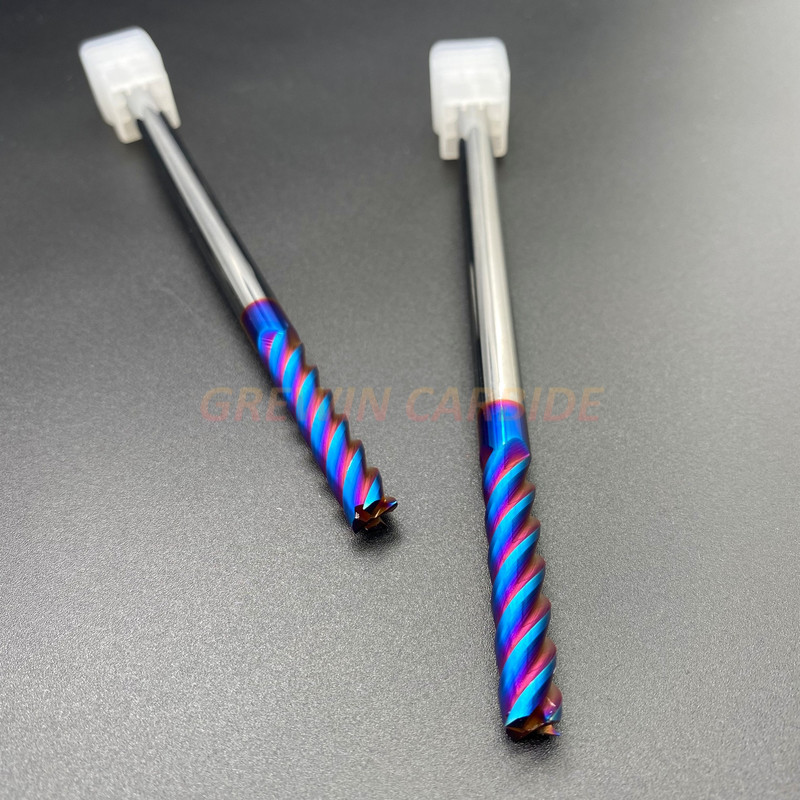

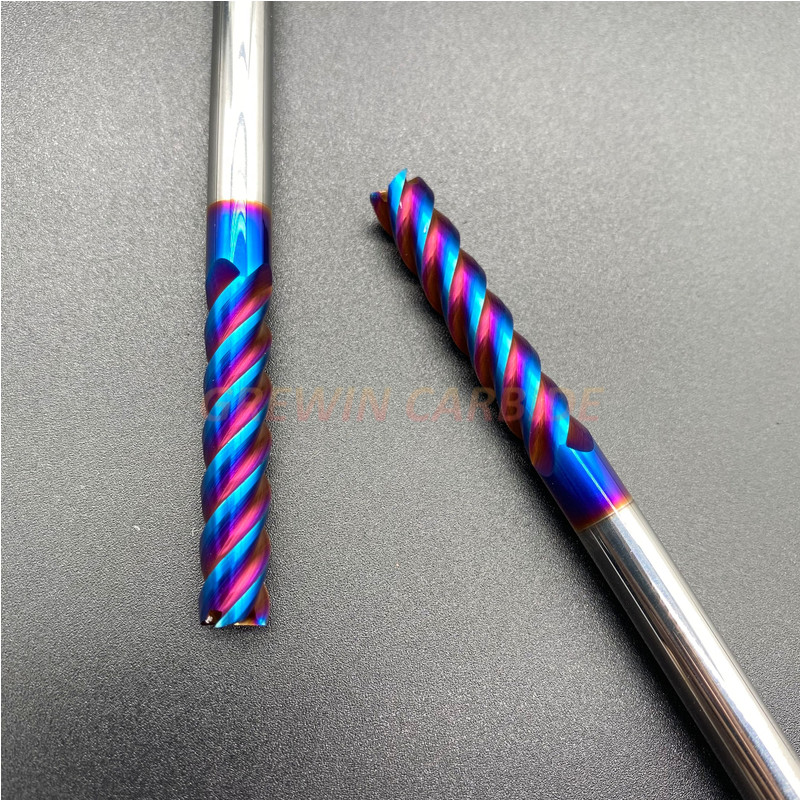

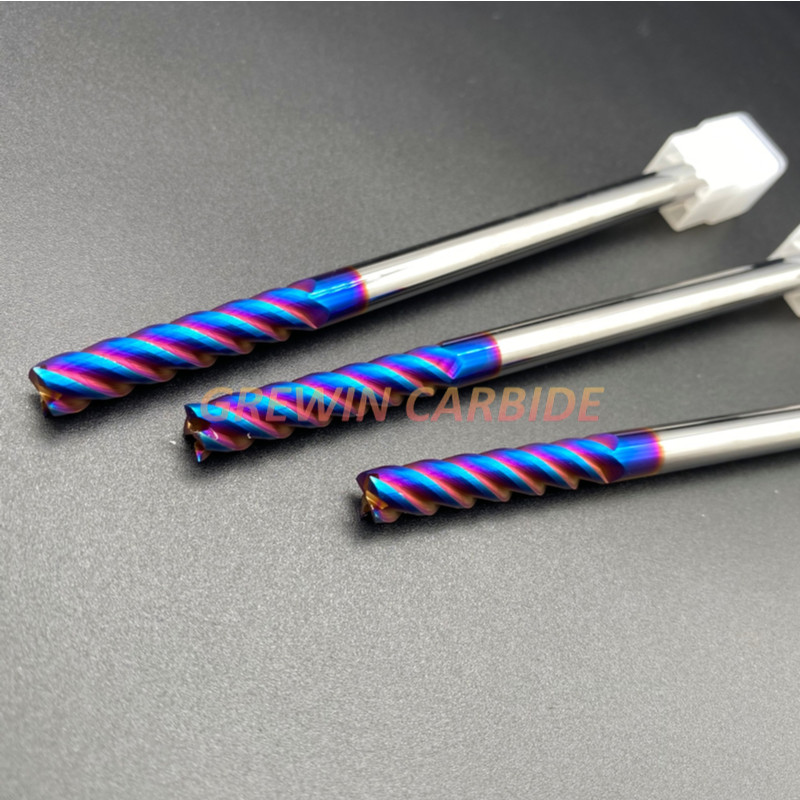

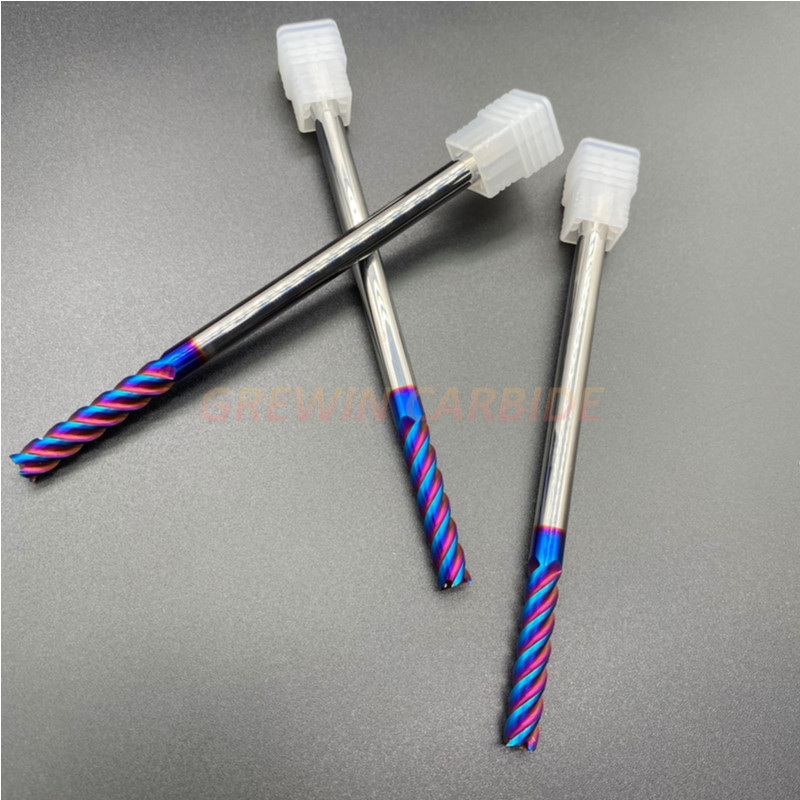

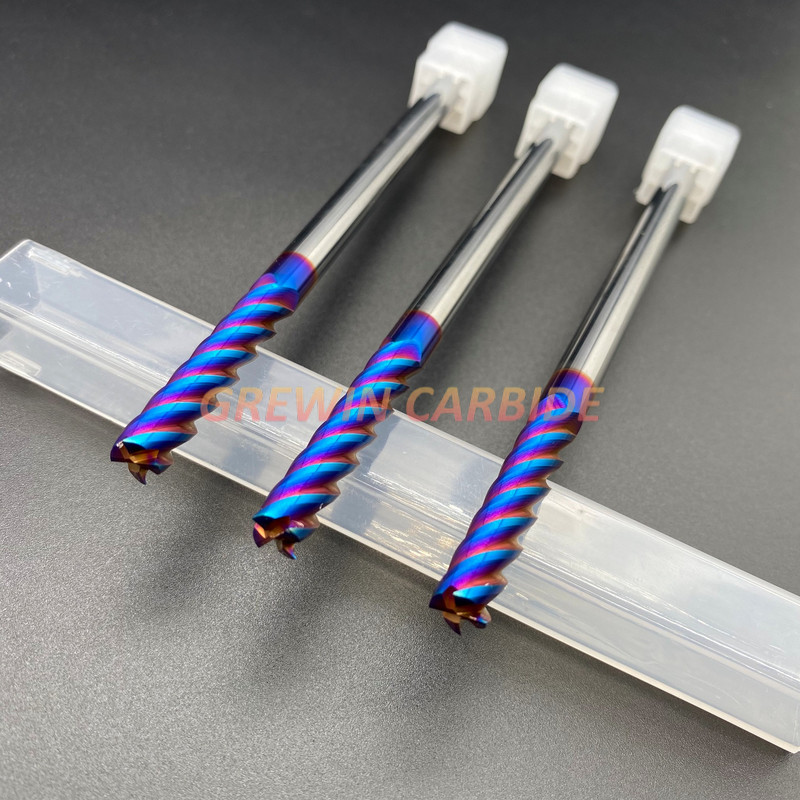

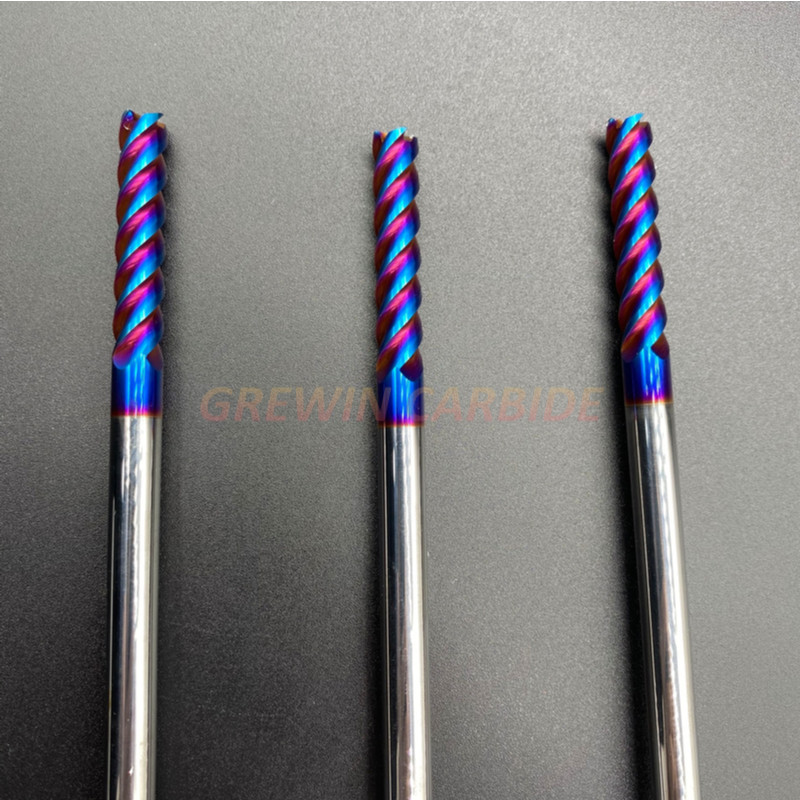

Standard Sizes of the 4 Flutes Carbide Endmills
| Specifications (mm) | |||
| Dc | Ds | Lc | L |
| Φ0.5 | 4 | 1 | 50 |
| Φ0.8 | 4 | 2 | 50 |
| Φ1 | 4 | 3 | 50 |
| Φ1.5 | 4 | 5 | 50 |
| Φ2 | 4 | 5 | 50 |
| Φ2.5 | 4 | 8 | 50 |
| Φ3 | 4 | 8 | 50 |
| Φ3.5 | 4 | 10 | 50 |
| Φ4 | 4 | 10 | 50 |
| Φ5 | 6 | 15 | 50 |
| Φ6 | 6 | 15 | 50 |
| Φ8 | 8 | 20 | 60 |
| Φ10 | 10 | 25 | 75 |
| Φ12 | 12 | 30 | 75 |
| Φ14 | 14 | 35 | 83 |
| Φ16 | 16 | 40 | 100 |
| Φ18 | 18 | 40 | 100 |
| Φ20 | 20 | 45 | 100 |
| Φ25 | 25 | 45 | 110 |
