High Speed Carbide Ball-nose Milling End Mill With Coating
10 pcs
MOQ
USD 0.8~20/PCS
Price
High Speed Carbide Ball-nose Milling End Mill With Coating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: ZhuZhou,China
Brand Name: GW Or OEM
Certification: ISO 9001, SGS
Model Number: Tisin, Tialn, Altin, Ticn, Blue Nano
Payment & Shipping Terms
Packaging Details: Standard Box
Delivery Time: 7~15 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/month
Specifications
Application: For Machining Grooves And Step Surfaces, Etc.
Suitable For: Iron, Cast Iron, Common Steel, Hardened Steel
Usage: General High Speed Cutting
Cutting Form: Flat, Ball Nose, Corner Radius, Roughing
Work Piece: HRC 45, 55, 60, 65, 68
Length: 50mm-150mm, Customized
Flutes Number: 2,3,4,6
Shipment: FedEx, DHL, TNT, UPS, EMS, Etc.
Delivery: Within 7~15workdays
Product Description

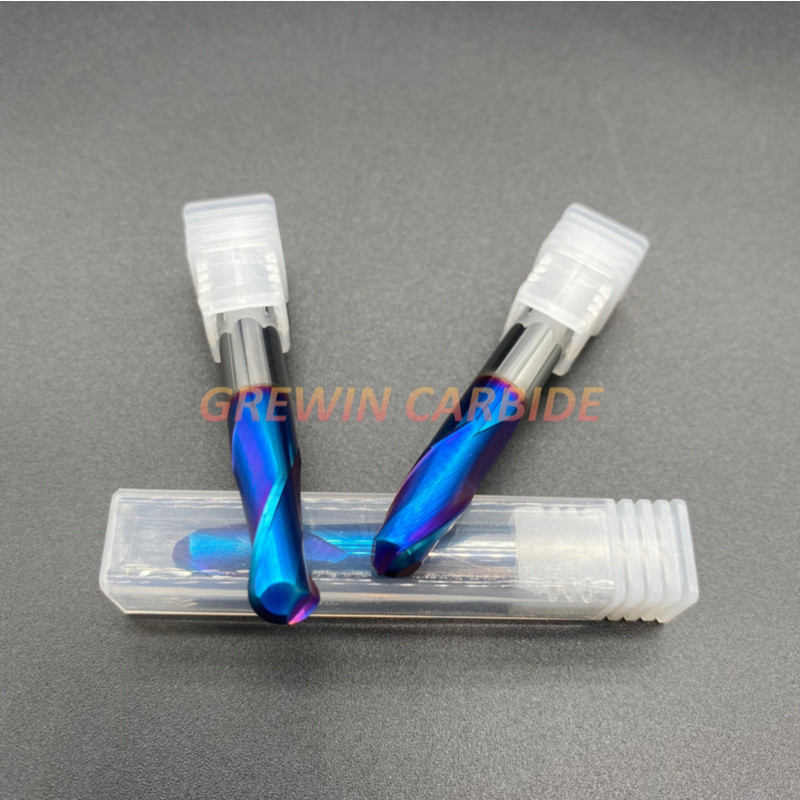

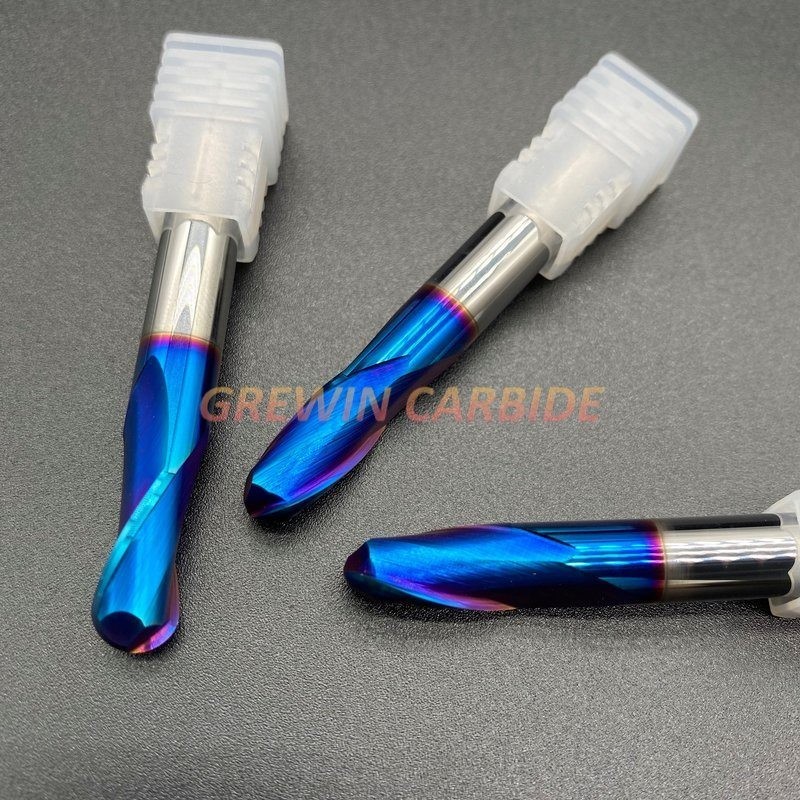

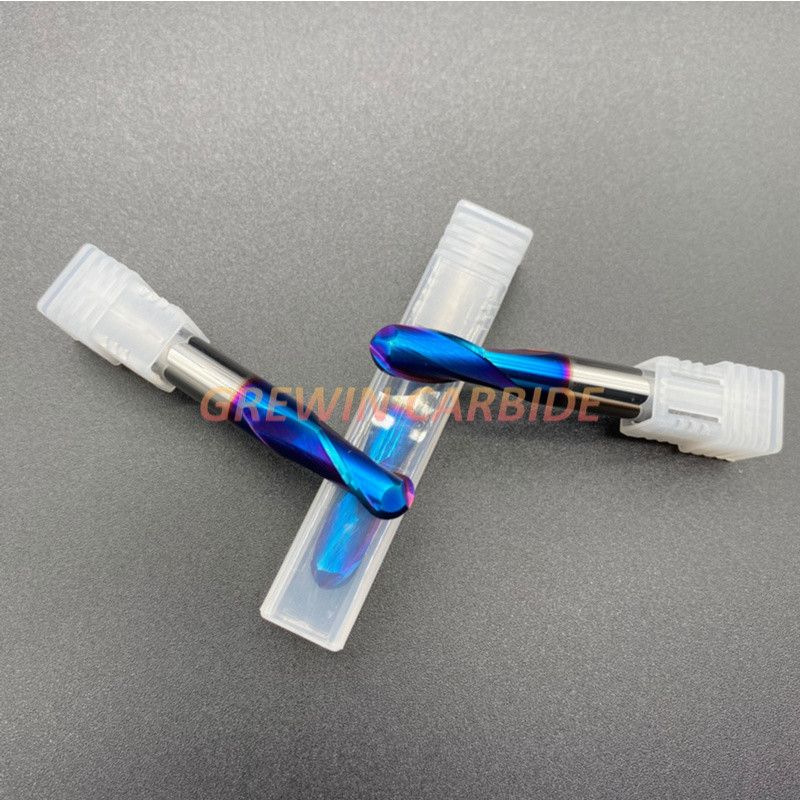

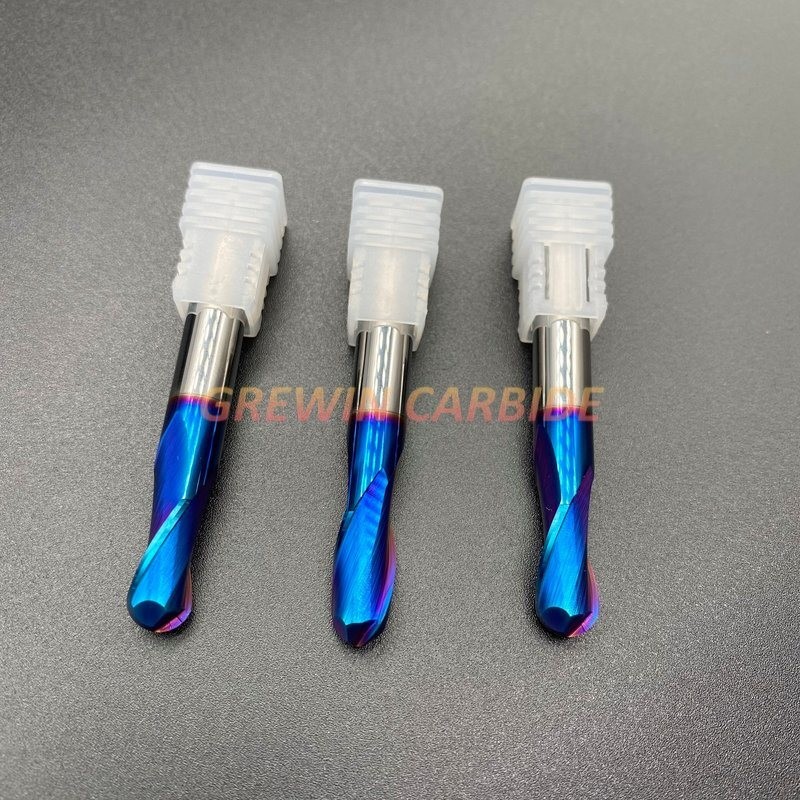

High Speed Carbide Ball-nose Milling End Mill With Coating 0High Speed Carbide Ball-nose Milling End Mill With Coating 1High Speed Carbide Ball-nose Milling End Mill With Coating 2High Speed Carbide Ball-nose Milling End Mill With Coating 3High Speed Carbide Ball-nose Milling End Mill With Coating 4High Speed Carbide Ball-nose Milling End Mill With Coating 5We provide high quality tungsten carbide endmills with the following description


1. Chemical Composition: 10%-12%Co-WC,100% raw material.
2. Physical and Machinal properties: Density: 14.40-14.65g/cm3 Hardness: HRA91.8-92.5 TRS> 3600N/mm2, Helix angle 30°-45 °.
3, Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
4, Organizational Structure: WC mean grain size: 0.4-0.6um
5. Corresponds to International Standards: K20-K30, K20-K40
6, Suitable for: Machining of cast iron, nonferrous alloy, nonferrous metals, fireproof alloy, Titanium alloy, alloy steel, carbon steel and other non-metallic. It has suitable for finishing processing the grooves and side. Meanwhile, it can be processing in high speed and high efficiency which the material HRC>60

Introduction of the carbide materials of the End mill

Carbide Grade Technical Details of tungsten carbide rod
10U Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44 Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um


The materials to be cut

Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63


Corresponding Coating

Carbide Grade HRC of End mill Corresponding Coating
10U HRC45-50 AlTiN
12U HRC55-58 TiAlN
K40 HRC60-62 TiSlN
K44 HRC65-70 Nano


Introduction of carbide materials of the End mill

  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue


2. Application

Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Grinding equipment: , ANCA, ROLLOMATIC
Testing equipment: ZOLLER

3. Coating

Coating Color Coating Temperature Thickness (um) HV Application Temperature Friction coefficient

TiAlN
Purple-Gray <600°C 3-5 3300 800 °C 0.3
AlTiN Black <600 °C 3-5 3500 900 °C 0.3
TiSiN Copper <600 °C 3-5 3500 1500 °C 0.4
NaNo Blue <600 °C 3-5 3800 1200 °C 0.4
CrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3


Standard Sizes:

Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100


2 flutes Flat End Mill
High Speed Carbide Ball-nose Milling End Mill With Coating 6
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.

Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
2GW1-01002050 1 3 50 4 2
2GW1-01504050 1.5 4 50 4 2
2GW1-02050500 2 5 50 4 2
2GW1-02507050 2.5 7 50 4 2
2GW1-03008050 3 8 50 4 2
2GW1-04010050 4 10 50 4 2
2GW1-04015075 4 15 75 4 2
2GW1-04020100 4 20 100 4 2
2GW1-05012050 5 13 50 6 2
2GW1-06015050 6 15 50 6 2
2GW1-06020075 6 20 75 6 2
2GW1-06020100 6 30 100 6 2
2GW1-06020060 8 20 60 8 2
2GW1-08025075 8 25 75 8 2
2GW1-08025100 8 35 100 8 2
2GW1-010025075 10 25 75 10 2
2GW1-010040100 10 40 100 10 2
2GW1-012020075 12 30 75 12 2
2GW1-012040100 12 40 100 12 2
2GW1-014020080 14 30 80 14 2
2GW1-014100100 14 40 100 14 2
2GW1-016040100 16 40 100 16 2
2GW1-018040100 18 40 100 18 2
2GW1-020040100 20 40 100 20 2
2GW1-06040150 6 40 150 6 2
2GW1-08050150 8 50 150 8 2
2GW1-010050150 10 50 150 10 2
2GW1-012050150 12 50 150 12 2
2GW1-014060150 14 60 150 14 2
2GW1-016060150 16 60 150 16 2
2GW1-018060150 18 60 150 18 2
2GW1-020060150 20 60 150 20 2


3 flutes Flat End Mill
High Speed Carbide Ball-nose Milling End Mill With Coating 7
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.


Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
3GW1-01003050 1 3 50 4 3
3GW1-01504050 1.5 4 50 4 3
3GW1-02050500 2 5 50 4 3
3GW1-02507050 2.5 7 50 4 3
3GW1-03008050 3 8 50 4 3
3GW1-04010050 4 10 50 4 3
3GW1-04015075 4 15 75 4 3
3GW1-04020100 4 20 100 4 3
3GW1-05013050 5 13 50 6 3
3GW1-06015050 6 15 50 6 3
3GW1-06020075 6 20 75 6 3
3GW1-06030100 6 30 100 6 3
3GW1-06020060 8 20 60 8 3
3GW1-08025075 8 25 75 8 3
3GW1-08035100 8 35 100 8 3
3GW1-010025075 10 25 75 10 3
3GW1-010040100 10 40 100 10 3
3GW1-012030075 12 30 75 12 3
3GW1-012040100 12 40 100 12 3
3GW1-014030080 14 30 80 14 3
3GW1-014100100 14 40 100 14 3
3GW1-016040100 16 40 100 16 3
3GW1-018040100 18 40 100 18 3
3GW1-020040100 20 40 100 20 3
3GW1-06040150 6 40 150 6 3
3GW1-08050150 8 50 150 8 3
3GW1-010050150 10 50 150 10 3
3GW1-012050150 12 50 150 12 3
3GW1-014060150 14 60 150 14 3
3GW1-016060150 16 60 150 16 3
3GW1-018060150 18 60 150 18 3
3GW1-020060150 20 60 150 20 3


4 flutes Flat End Mill
High Speed Carbide Ball-nose Milling End Mill With Coating 8
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.


Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4


6 flutes Flat End Mill
High Speed Carbide Ball-nose Milling End Mill With Coating 9
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.


Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
6GW1-06016050 6 16 50 6 6
6GW1-06025075 6 25 75 6 6
6GW1-06036100 6 36 100 6 6
6GW1-0802060 8 20 60 8 6
6GW1-08032075 8 32 75 8 6
6GW1-08042100 8 42 100 8 6
6GW1-10025075 10 25 75 10 6
6GW1-10042100 10 42 100 10 6
6GW1-012030075 12 30 75 12 6
6GW1-012042100 12 42 100 12 6
6GW1-012055155 12 55 155 12 6
6GW1-014040100 14 40 100 14 6
6GW1-014065150 14 65 150 14 6
6GW1-016040100 16 40 100 16 6
6GW1-016065150 16 65 150 16 6
6GW1-020045100 20 45 100 20 6
6GW1-020070150 20 70 150 20 6


Product Show:
High Speed Carbide Ball-nose Milling End Mill With Coating 10
High Speed Carbide Ball-nose Milling End Mill With Coating 11
High Speed Carbide Ball-nose Milling End Mill With Coating 12
High Speed Carbide Ball-nose Milling End Mill With Coating 13
High Speed Carbide Ball-nose Milling End Mill With Coating 14






More information, please kindly contact us.

Best regards
GREWIN CARBIDE
