Customized HRC55 Tungsten Carbide 4 Flute Ball Nose End Mill D12x100
Ball nose end mill is used for milling, with one or more of the rotary tool cutter. The margin in workpiece is cut by the mill intermittently. Carbide ball nose end mill is mainly used in processing plane, steps, grooves, forming the workpiece surface and cutting and so on.
coating: Blue Nano Coating
flutes:4
HRC:55
Suitable for machine: CNC Grindng Center, Engraving Machine, high speed machine, ECT.,
materials to be cut: carbon steel, high speed steel, stainess steel, requeched steel and other difficulty matarials.
faetures:
The sharp and positive rake angles are sharpened and sharpened. The 4-blade geometry cutting design has a large capacity for chip removal. It is a smoother cutting, non-stick knife, and achieves efficient machining.
Features Of Tungsten Carbide Ball Nose Milling Cutter,4 Flute Ballnose End Mill Coating
1. 100% Virgin Raw Material.
2. Long use life and high performance
3. 100% QC inspection before shipment
4.Prompt aftersales service within 24 hours
5. Non-Standard sizes and OEM orders are available
6. We are a Real Factory with ISO9001:2015 Certification
7.Suitable for cutting steel/cast iron/aluminum/copper/plastic/alloy steel/titanium alloy etc
Size Sheet:
| Code No. |
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 4GW2-0103050 | 1 | 2 | 50 | 4 | 4 |
| 4GW2-0205050 | 2 | 4 | 50 | 4 | 4 |
| 4GW2-0308050 | 3 | 6 | 50 | 4 | 4 |
| 4GW2-04010050 | 4 | 8 | 50 | 4 | 4 |
| 4GW2-05013050 | 5 | 10 | 50 | 5 | 4 |
| 4GW2-06015050 | 6 | 12 | 50 | 6 | 4 |
| 4GW2-08020060 | 8 | 16 | 60 | 8 | 4 |
| 4GW2-01020075 | 10 | 20 | 75 | 10 | 4 |
| 4GW2-012030075 | 12 | 24 | 75 | 12 | 4 |
| 4GW2-06030100 | 6 | 12 | 100 | 6 | 4 |
| 4GW2-08030100 | 8 | 16 | 100 | 8 | 4 |
| 4GW2-010040100 | 10 | 20 | 100 | 10 | 4 |
| 4GW2-012040100 | 12 | 24 | 100 | 12 | 4 |
Our GREWIN Company is able to supply customer with high-performance cutting tools in a very short lead time.
When ordering any kind of cutting tools, we recommend indicating the material to be machined so that we can ensure you are purchasing the correct type based on the material of your application.
All carbide end mills are discounted according to the quantity, welcome to contact us for details.

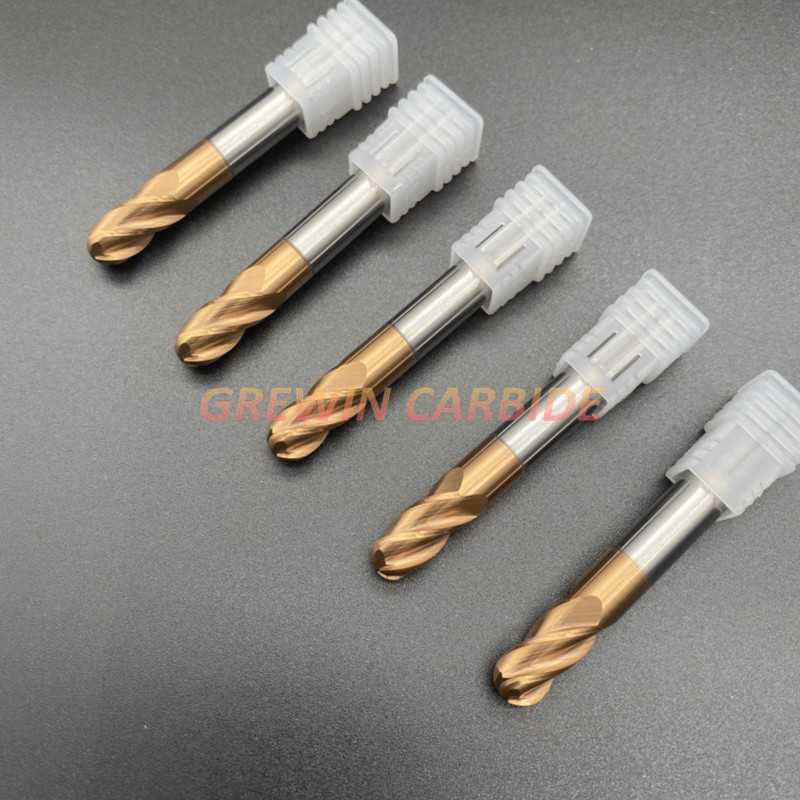

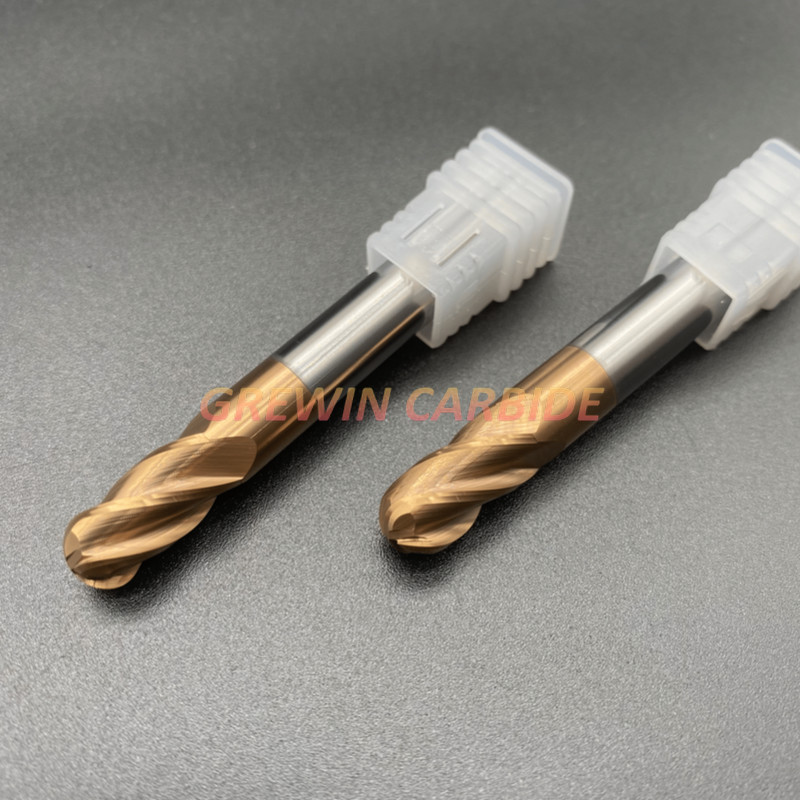

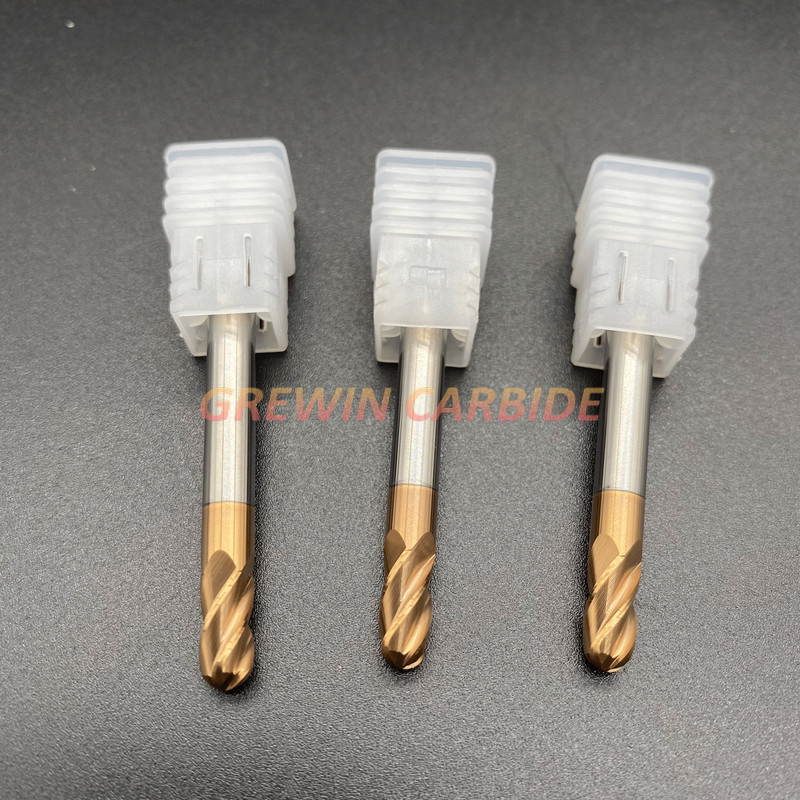

Product show:
Quality control:
We have dedicated team of quality control and art equipment to keep good and stable performance for our products.
OEM/ODM Service:
Customization cutting tools is an easy process when partnering with OPT. From drawing to tooling completion takes no longer than 4 weeks. With a sample profile, a CAD file or a dimensioned sketch, we design precision profile tooling with safety, accuracy, exceptional performance and our customer’s complete satisfaction in mind.
Our Service:
Sample is available for testing before ordering
Customer oriented
After sale replace service
Full stock available for urgent demands
