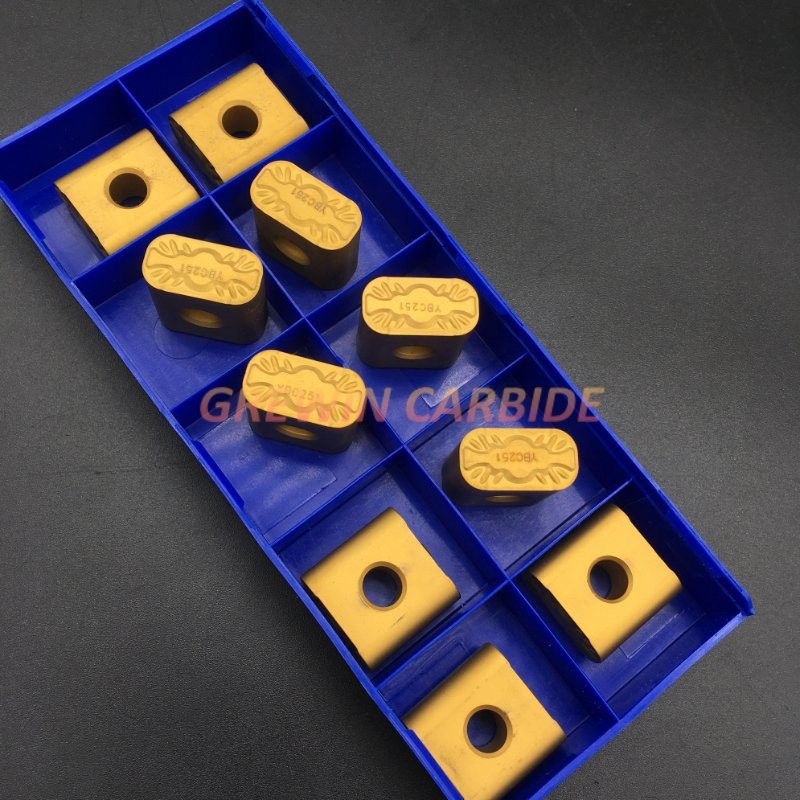

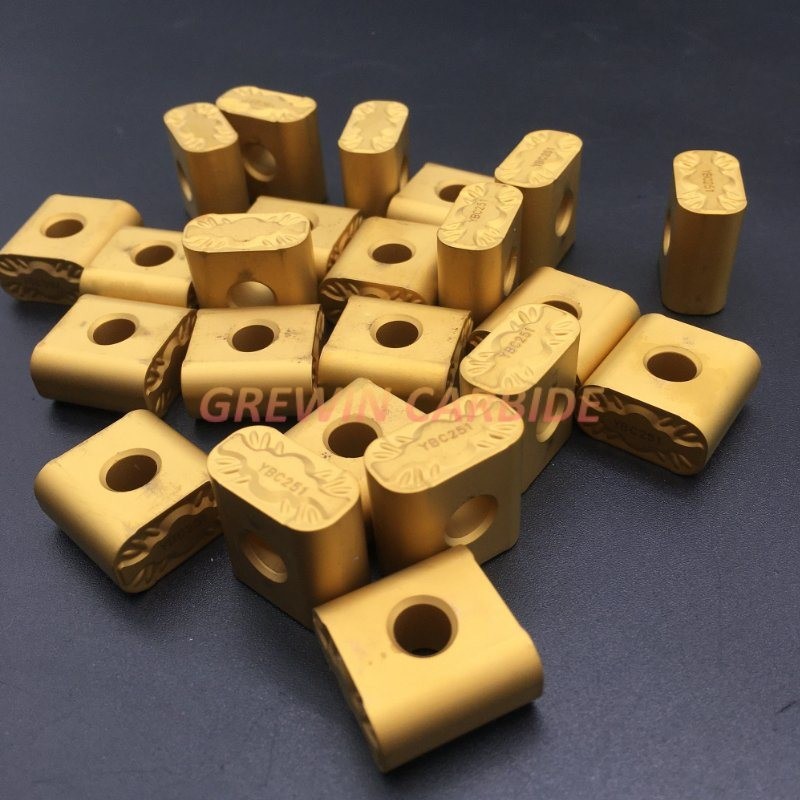

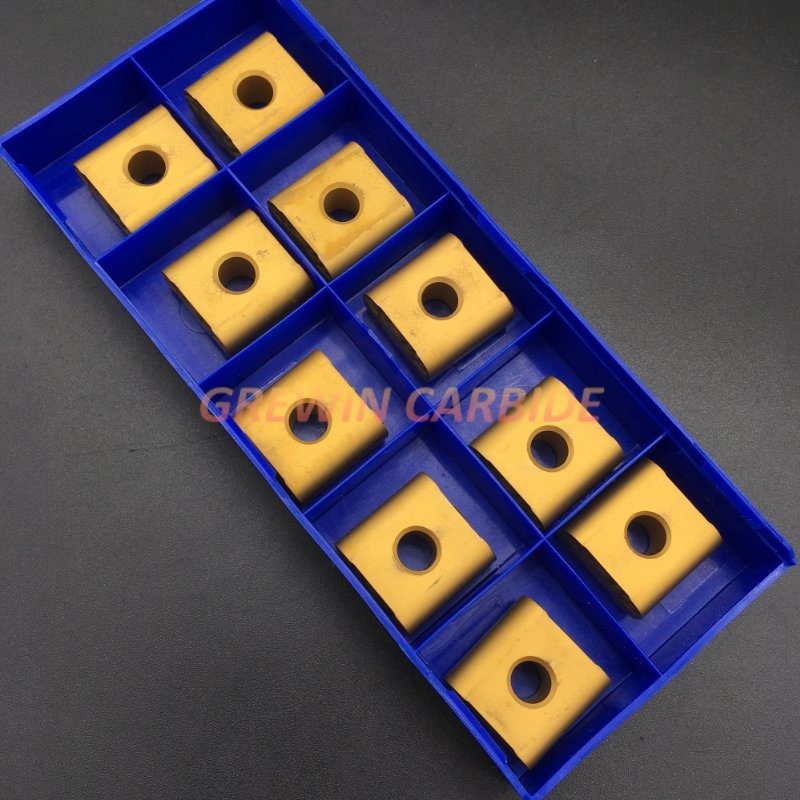

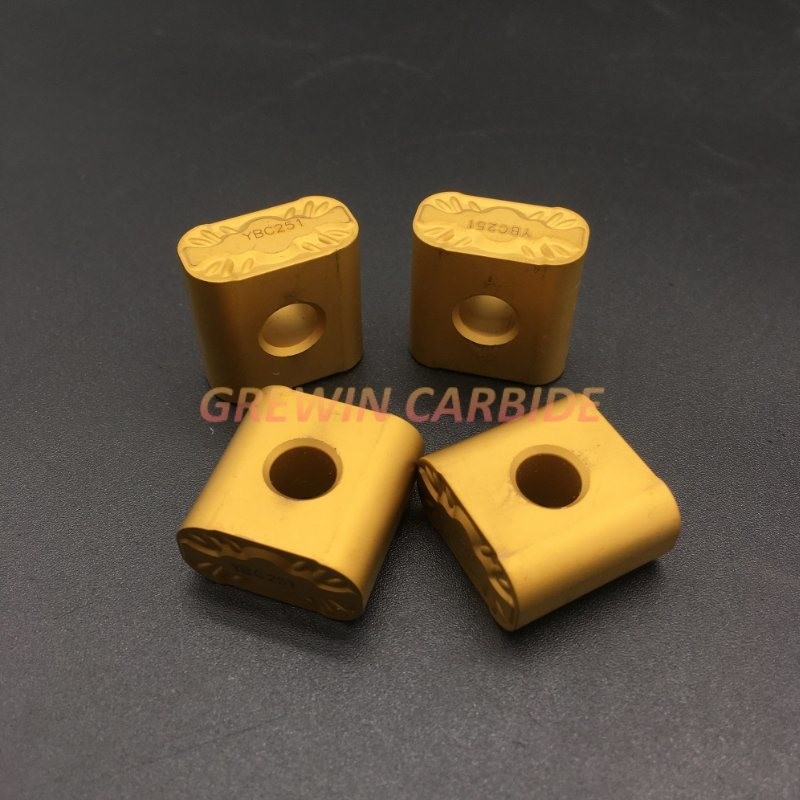

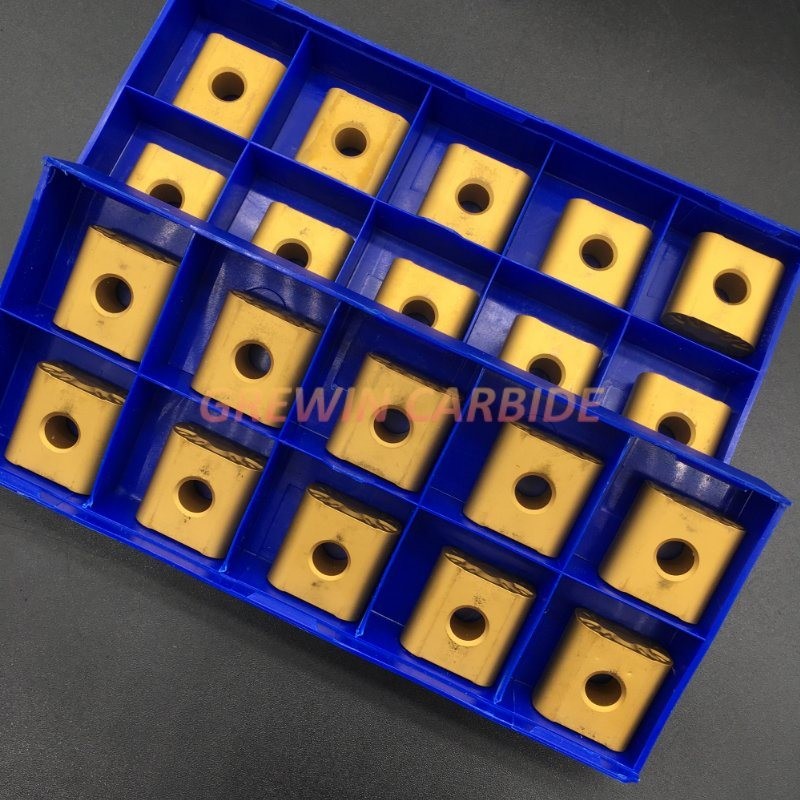

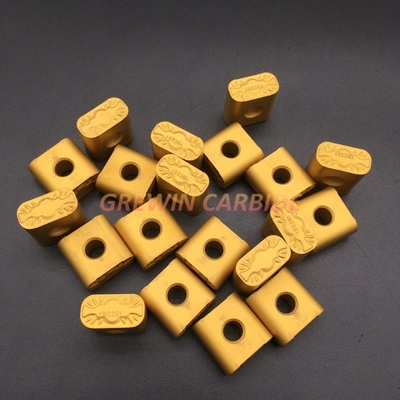

Products Description:
Brand: GW CARBIDE
chuck system: fasten system
back angle of the insert: 0
insert seat type: R/L175.32-3223-19
size of the insert: 19.05mm
Item No.:175.32-191940-28
type No.: 191940
direction: N
Maxmum cutting depth: 19.05mm
coating: CVD TICN+AL2O3+TIN
other types: 175.32-191940-22,175.32-191940-24,175.32-191940-25,175.32-1919-28
toolholder size: 500
01. Properly reducing the cutting speed and feed rate can prolong the trial life of the milling cutter.
02. When working, it is necessary to add cutting fluid to protect the cutting edge, which makes the cutting smoother.
03. When there is an oxide film or other hardened layer remaining on the surface of the work-piece, it can be removed by reversible milling.
What buyers need to know about end mill selection and operating instructions:
01. Before using the tool, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
02. The shorter the length of the end mill sticking out of the chuck, the better. If the end mill sticks out for a long time, it is necessary to reduce the rotational speed, feed rate or cutting amount.
03. During cutting, if abnormal vibration or sound occurs, please reduce the cutting speed and the cutting feed rate until the situation improves.
04. The steel cooling is preferably spray and air jet, which can effectively improve the use effect of the milling cutter.
Company Information
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, tungsten carbide indexable tools turning and milling inserts, tungsten carbide tools of brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
we appreciate any of your contact!
