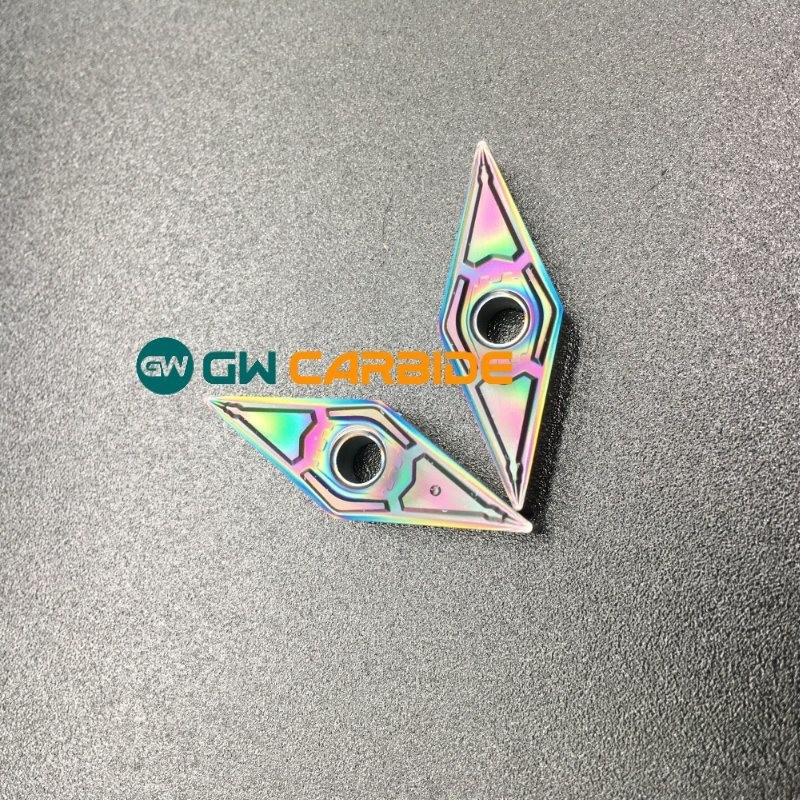

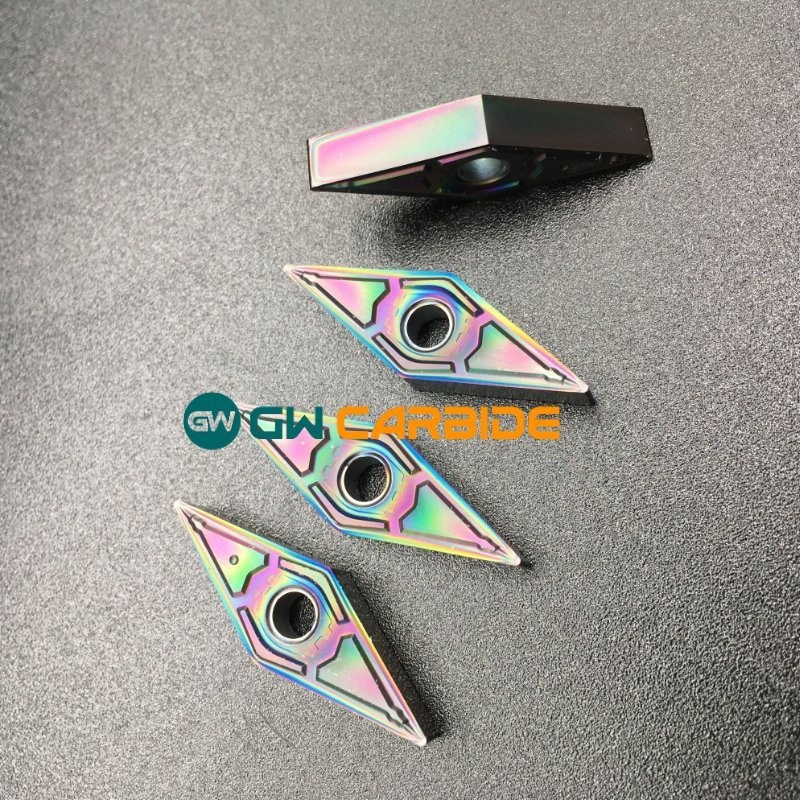

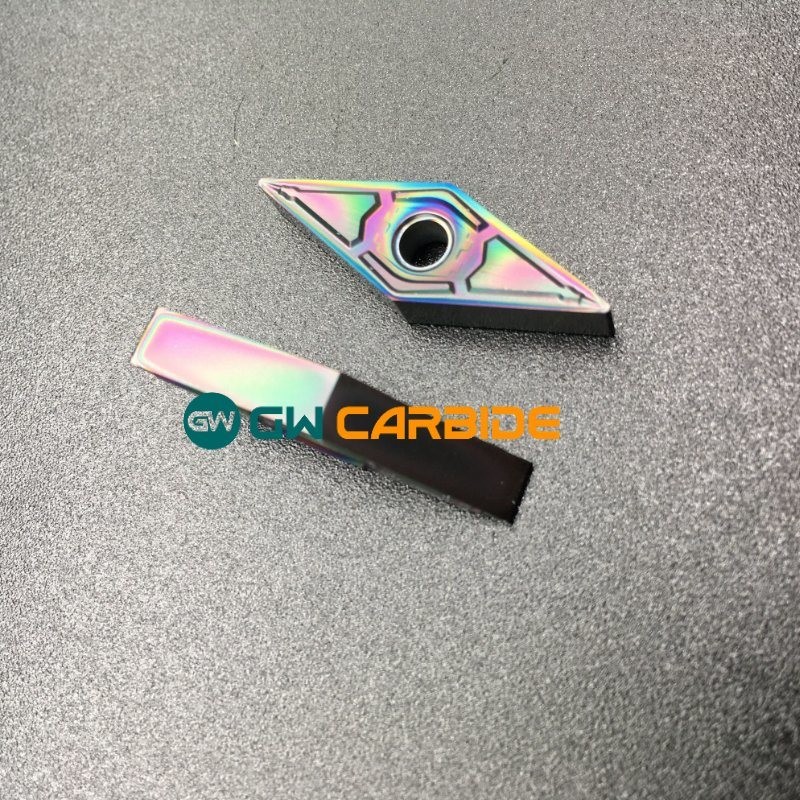

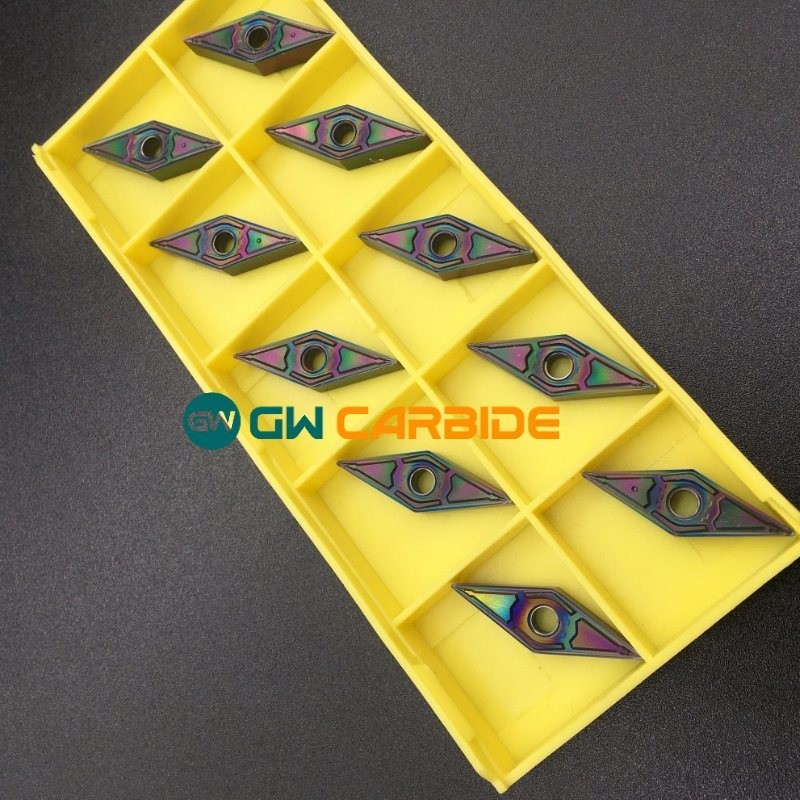

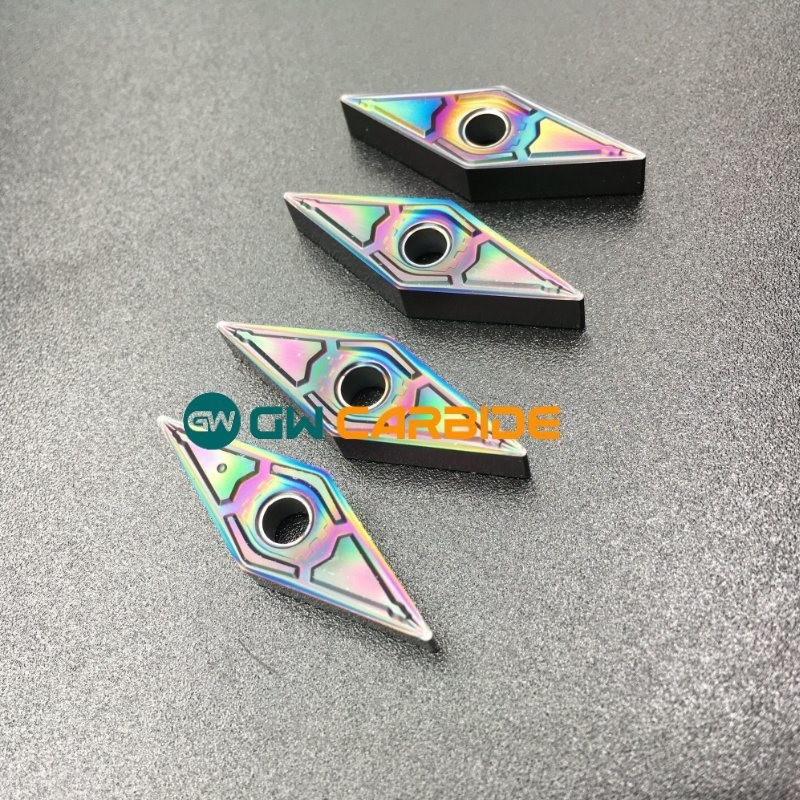

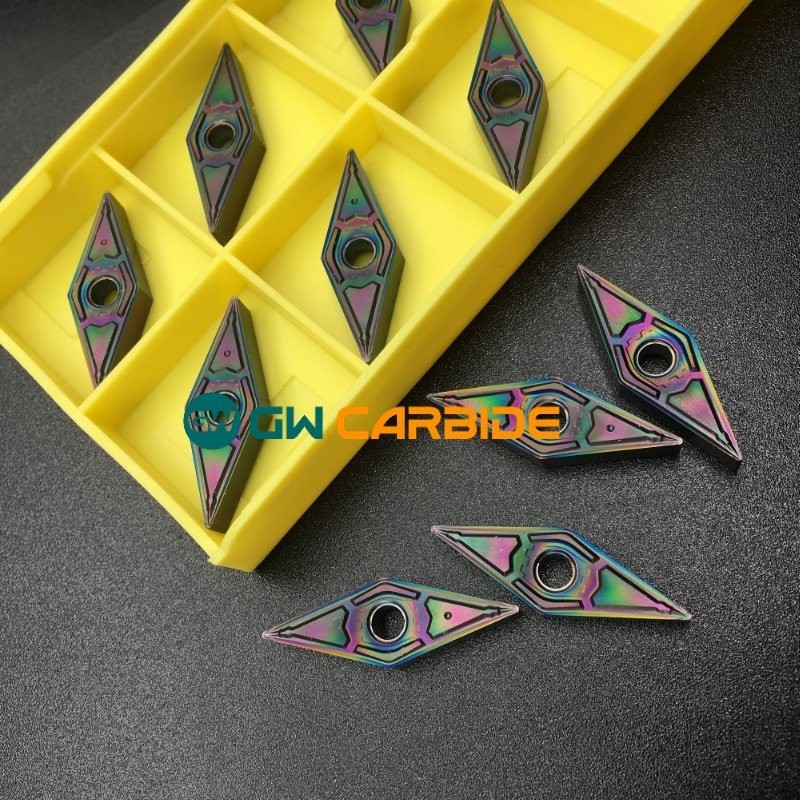

Tungsten Carbide insert VNGG 160404-GF QS5105
1.Tungsten carbide tools for Turning inserts
CNMG/TNMG/WNMG/DNMG/SNMG/VNMG/CCMT/DCMT/SCMT/TCMT/VBMT/KNUX
2.Tungsten carbide tools for milling inserts
APKT/APMT/RPKW/RDKW/RCMT/SPKN/TPKN
3.Tungsten carbide tools for Aluminium inserts cutting
CCGT/DCGX/SCGX/TCGX/VCGX
4.PCD &PCBN Tungsten carbide tools turning for inserts
CNGA/DNGA/SNGA/TNGA/VNGA/CCGW/DCGW/TCGW/VBGW
1. Products Description:
Range of materials to be cut:
1. tungsten carbide tools inserts for Steel cutting turning and milling
2. tungsten carbide tools inserts for Stainless steel cutting turning and milling
3. tungsten carbide tools inserts for Cast iron cutting turning and milling
4. tungsten carbide tools inserts for Aluminum cutting turning and milling
Industry of application:
CNC turning and milling tungsten carbide tools products inserts are widely used in:
Automotive manufacturing industry,
Mold manufacturing industry,
Aviation industry,
Defense industry,
Heavy processing industry and many other field.
we can produce various types tungsten carbide cutting tools insert according to different customized drawings.
we can provide the overall supporting solutions for the machining field.
We provide our customers with "good quality, fast delivery, strong technical support, and excellent after-sales service."
Grades
| Grade | ISO Code | Density g/cm3 |
Hardness HRA |
T.R.S MPa |
Applications recommended |
| YG3 | K05 | 15.10 | 92.0 | 1400 | Suitable for finishing of cast iron and nonferrous metal. |
| YG6X | K10 | 14.95 | 92.5 | 2200 | The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
| YG6 | K15 | 14.95 | 91.5 | 2400 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| YG8 | K20 | 14.80 | 90.0 | 2900 | |
| YW1 | M10 | 13.30 | 92.5 | 2100 | Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel. |
| YW2 | M20 | 13.10 | 92 | 2400 | The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
| YT15 | P10 | 11.4 | 92.0 | 2100 | Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed. |
| YT14 | P20 | 11.6 | 91.5 | 2100 | Suitable for the finishing and semi-finishing of steel and cast steel. |
| YT5 | P30 | 13.0 | 90.5 | 2400 | Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
| TYPE | Dimension ( mm ) | |||||||
| L | I.C | S | d | r | ||||
| CCMT | ( ISO ) | ( ANSI ) | ||||||
| 09T304 | 32.51 | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 | ||
| 09T308 | 32.52 | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 | ||
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.5 | 0.4 | ||
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.5 | 0.8 | ||
| TYPE | Dimension ( mm ) | |||||||
| L | I.C | S | d | r | ||||
| CNMA | ( ISO ) | ( ANSI ) | ||||||
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | ||
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | ||
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 | ||
| 190612 | 643 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 | ||
| YPE | Dimension ( mm ) | ||||||
| L | I.C | S | d | r | |||
| CNMG | ( ISO ) | ( ANSI ) | |||||
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | |
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | |
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 | |
| 190612 | 643 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 | |
3. Company Information
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, tungsten carbide indexable tools turning and milling inserts, tungsten carbide tools of brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
Company Information:
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001:2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia,middle east,south America, etc.
Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
Our Services:
More than 2000 products are available. Assembly line production, high standard and strict requirements.?
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
