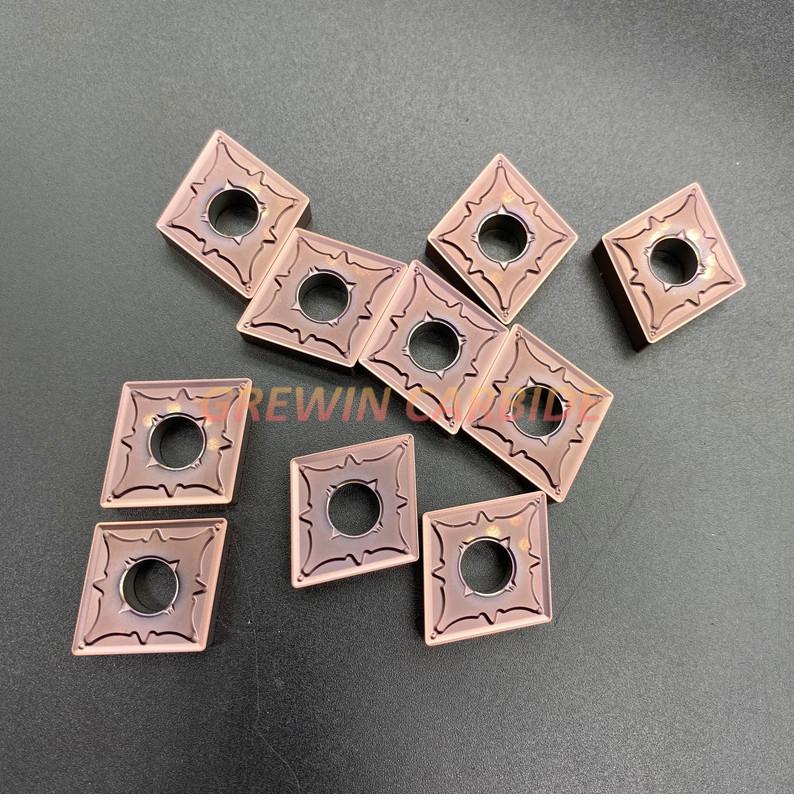

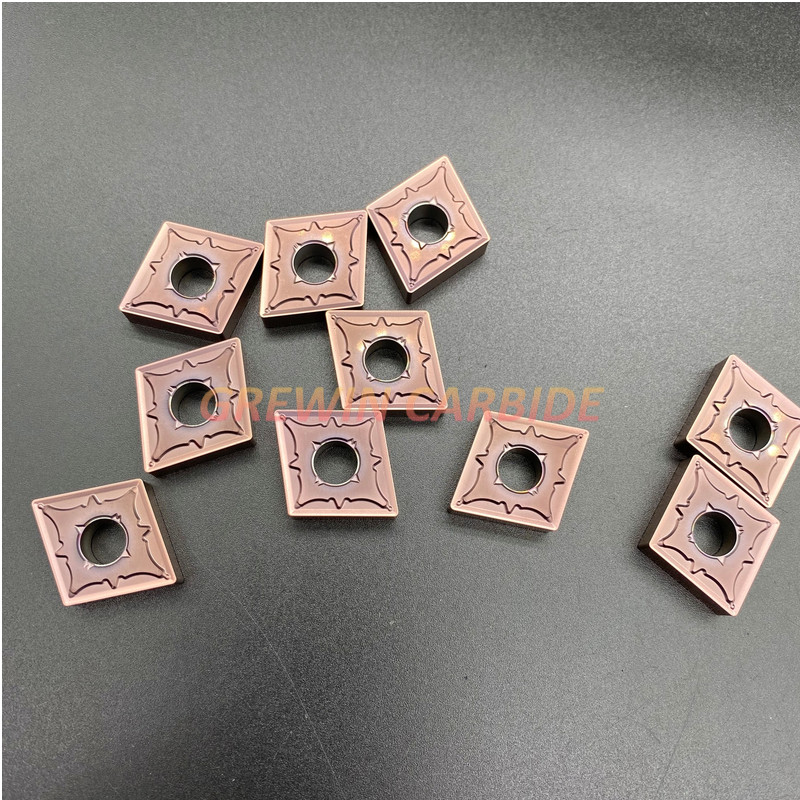

Tungsten carbide insert:CNMG120404, CNMG120408, CNMG120412, CNMG120416, CNMG160608, CNMG160612, CNMG160616, CNMG190612, CNMG190616
| Product Name | Tungsten Carbide Inserts |
| Brand | GREWIN |
| Model | CNMG series |
| Grade | GW-CP2630 |
| Coating | PVD CVD |
| Place of Origin | China |
| Workpiece | Steel Stainless Cast Iron |
| Usage | Milling Tool |

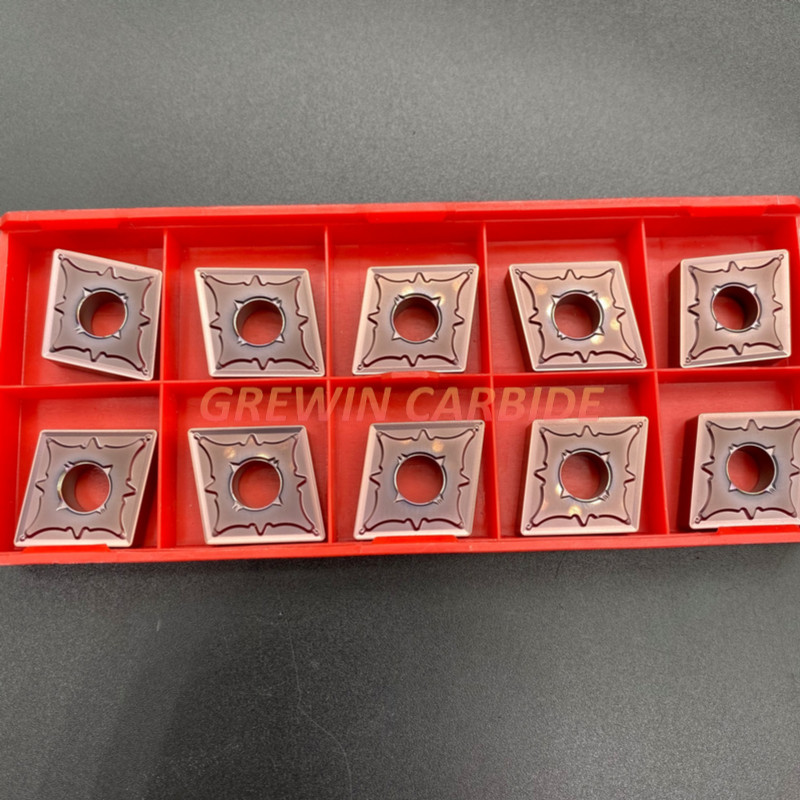

| Packing | 10pcs in a plastic box |
| MOQ | 10 pieces |
Our advantages:
1 Top quality in China. Our tungsten carbide tools inserts quality of steel cutting, cast iron cutting, stainless steel cutting inserts is equal to ZCC-CT.
2 Most advanced equipments. Our production equipments include "HIP-Sinter furnace, CNC high precision presser, Five axis machining center, CVD coating furnace, PVD coating furnace."
3 Strong technical support. Our senior engineers are engaged in cutting tools industry for decades, we provide excellent service in grade selection, cuting data recommendation, and solution for your tools.
4 Reputation among our customers. We have big customers of carbide inserts in Europe, such as Germany, Italy, UK, Poland, Czech, Ukraine. In South America, such as Brazil, Peru. And in Asia, such as India, Iran.
| TYPE | Dimension ( mm ) | ||||||
| L | I.C | S | d | r | |||
| CNMG | ( ISO ) | ( ANSI ) | |||||
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | |
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | |
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 | |
| 190612 | 643 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 | |
High quality surface finish
The main components, TiC and TiN, have good BUE resistance as they have low affinity with work materials. Thus, machining with cermets brings high quality surface finish over extended periods of time.
High speed cutting
1). The main components, TiC and TiN, are more resistant to wear and oxidation at high temperature than WC (tungsten carbide), which is the main component of carbide tools. Because of excellent wear and oxidation resistance, cermet grades are less reactive with work materials and make stable high speed machining possible.
2). The substrate is coated by the PVD method with TiN, TiCN, and/or TiAlN. The end results are materials that are suitable for precision machining and machining of difficult-to-cut materials. Inserts in these grades are tougher and harder than carbide and come with precision sharp cutting edges. They even have superior toughness and sharper cutting edges than ultra micro-grain carbide grades, with excellent wear resistance and thermal crack resistance.
More details:
About us:
We are mainly supply metal cutting tools and wood cutting tools.
Metalworking Solid Carbide Tools:
carbide turning insert, carbide milling insert, toolholder and plates
carbide end mills
carbide drills with and without coolant holes.
carbide taps.
carbide burrs
carbide saw balde
solid carbide rod for making carbide end mills and drill bit.
Woodworking Solid Carbide Tools
reversible cutting insert
wood drill bit
carbide cutters
carbide rod for making wood cutting bit
