tunsgten carbide blank unground and ground solid carbide rod for cutting tools

tunsgten carbide blank unground and ground solid carbide rod for cutting tools
tunsgten carbide blank unground and ground solid carbide rod for cutting tools tunsgten carbide blank unground and ground solid carbide rod for cutting tools tunsgten carbide blank unground and ground solid carbide rod for cutting tools tunsgten carbide blank unground and ground solid carbide rod for cutting tools

Large Image :  tunsgten carbide blank unground and ground solid carbide rod for cutting tools

Product Details:

Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Detailed Product Description
SIZE: 3X330mm,25X330mm, 3x10x310mm, 25x100x310mm As Drawing SURFACE: GRIDING OR BLANK
MATERIAL: TUNGSTEN CARBIDE GRADE: YL10.2, H10F, K10, K20, K30, K40
ORIGINAL: ZHUZHOU, HUNAN
High Light:

tungsten alloy rod

,

tungsten metal rod

------------------------------------Introduction Of Tungsten Carbide Rods--------------------------------------

Unground and ground solid carbide rod for the production of drill bits, end mills, cutter, reamers, carving knife, anti-vibration tool holder and other products.


According to different processing field, such as processing of normal alloy steel, gray cast iron, stainless steel and heat-resistant alloy materials; finishing and processing of aluminum alloy, titanium alloy; processing of hardened steel, aluminum alloy, carbide rod should choose different grade, Stability and high technology ensure the high quality of our products. With its unique properties, carbide rod is widely used in high-speed railway, aerospace, electronic components and machinery.



Tungsten Carbide Rods Grade specification

Grade Density
(g/cm3)
Hardness
(HRA)
T.R.S (MPa) Grain size (μm) Composition
(%)
Equal to ISO
YL10.2 14.4~14.6 ≥92.2 ≥4000 0.6~0.8 10% CO 90% WC K30
YG6X 14.85~15.0 ≥92.0 ≥1860 0.8~1.0 6% CO 94% WC K10
YG15 14.0~14.1 ≥85.0 ≥2800 1.2~2.0 15% CO 85% WC /
YG10 14.5~14.6 ≥85.5 ≥2600 1.2~2.0 10% CO 90% WC K20
YG8 14.65~14.85 ≥89.5 ≥2320 1.2~2.0 8% CO 92% WC K20
YG6 14.85~15.05 ≥90.0 ≥2150 1.2~2.0 6% CO 94% WC K10



Pictures

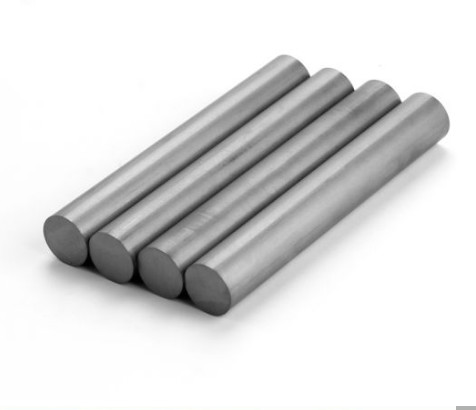

tunsgten carbide blank unground and ground solid carbide rod for cutting tools 0

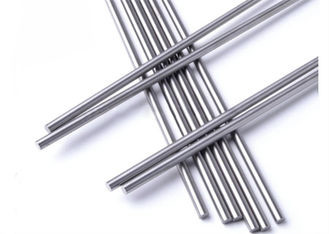

tunsgten carbide blank unground and ground solid carbide rod for cutting tools 1

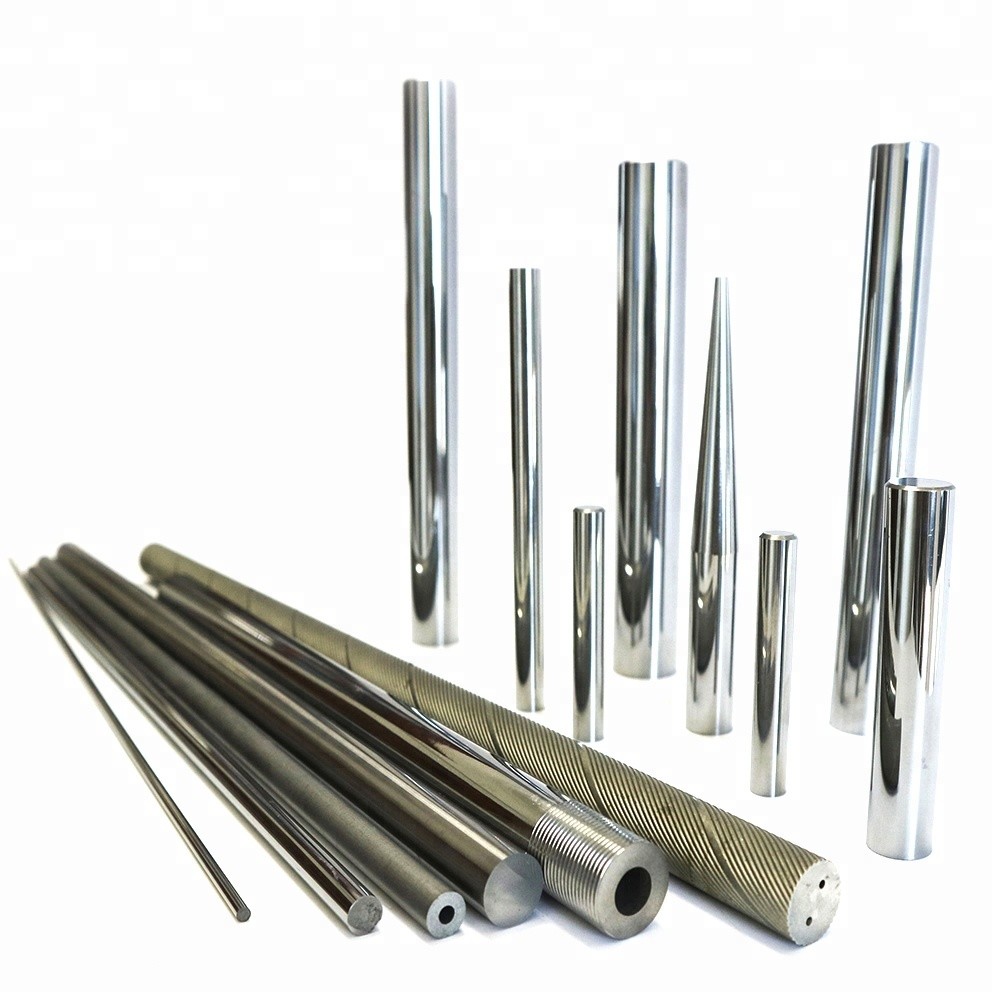

tunsgten carbide blank unground and ground solid carbide rod for cutting tools 2



Solid Rods (Metric) 330mm

Unground
h6

L

Tol.
Unground
h6

L

Tol.
D Tol. D Tol.
Ø2.2 +0.3/+0 2.0 330 +5/+0 Ø17.2 +0.3/+0 17 330 +5/+0
Ø3.2 +0.3/+0 3.0 330 +5/+0 Ø18.2 +0.3/+0 18 330 +5/+0
Ø4.2 +0.3/+0 4.0 330 +5/+0 Ø19.2 +0.3/+0 19 330 +5/+0
Ø5.2 +0.3/+0 5.0 330 +5/+0 Ø20.2 +0.3/+0 20 330 +5/+0
Ø6.2 +0.3/+0 6.0 330 +5/+0 Ø21.2 +0.3/+0 21 330 +5/+0
Ø7.2 +0.3/+0 7.0 330 +5/+0 Ø22.2 +0.3/+0 22 330 +5/+0
Ø8.2 +0.3/+0 8.0 330 +5/+0 Ø23.2 +0.3/+0 23 330 +5/+0
Ø9.2 +0.3/+0 9.0 330 +5/+0 Ø24.2 +0.3/+0 24 330 +5/+0
Ø10.2 +0.3/+0 10.0 330 +5/+0 Ø25.2 +0.3/+0 25 330 +5/+0
Ø11.2 +0.3/+0 11.0 330 +5/+0 Ø26.2 +0.3/+0 26 330 +5/+0
Ø12.2 +0.3/+0 12.0 330 +5/+0 Ø27.2 +0.3/+0 27 330 +5/+0
Ø13.2 +0.3/+0 13.0 330 +5/+0 Ø28.2 +0.3/+0 28 330 +5/+0
Ø14.2 +0.3/+0 14.0 330 +5/+0 Ø29.2 +0.3/+0 29 330 +5/+0
Ø15.2 +0.3/+0 15.0 330 +5/+0 Ø30.2 +0.3/+0 30 330 +5/+0
Ø16.2 +0.3/+0 16.0 330 +5/+0



Two straight coolant ducts rods, Reduced TK

Unground
Ground h6

TK

Tol.

D

Tol.

L

a

D

Tol.
6.3

+0.3/0
6.0 1.5 0/-0.20 0.80




±0.15







330
0.15
7.3 7.0 1.5 0.80 0.15
8.3 8.0 2.6




0/-0.30
1.00 0.15
9.3 9.0 2.6 1.00 0.20
10.3 10.0 2.6 1.00 0.20
11.3

+0.4/0
11.0 3.5 1.20 0.28
12.3 12.0 3.5 1.20 0.30
13.3 13.0 3.5 1.20 0.34
14.3 14.0 5.0 1.50 0.37
15.3 15.0 5.0 1.50 0.40
16.3 16.0 5.0 1.50

±0.20
0.40
17.3
+0.5/0
17.0 6.2 2.00 0.47
18.3 18.0 6.2 2.00 0.50
19.3 19.0 6.2 2.00 0.50
20.3 20.0 6.2 0/-0.40 2.00 ±0.30 0.50



30° Two Helical Coolant Ducts(Type HE-30°)

Unground
Ground h6
L
Tol. +5.0

TK

Tol.

D

Tol.

Pitch
D Tol.
6.3

+0.4/+1.0
6.0 330 2.7
±0.2
0.80


±0.15
32.65
7.3 7.0 330 3.5 1.00 38.09
8.3 8.0 330 3.4 1.00 43.53
9.3 9.0 330 4.5 ±0.3 1.40 48.97
10.3 10.0 330 4.8 1.30 54.41
11.3

+0.4/+1.2
11.0 330 4.9



±0.4
1.40 59.86
12.3 12.0 330 6.3 1.70 65.30
13.3 13.0 330 6.1 1.75
±0.20
70.74
14.3 14.0 330 6.7 1.80 76.18
15.3 15.0 330 7.3 1.75 81.82
16.3

+0.4/+1.4
16.0 330 8.0 2.00 87.06
17.3 17.0 330 8.5 1.75
±0.25
92.50
18.3 18.0 330 9.0 2.30 97.95
19.3 19.0 330 9.7 2.00 103.39
20.3 20.0 330 10.0 ±0.5 2.50 108.83




Payment

T/T, Western Union, Paypal (Choose your convenient way)

Shipment

FEDEX, TNT, DHL, UPS, EMS,etc.
The port is Beijing,Shanghai ,Guangzhou ,Shenzhen,etc.Any port in China. (Choose your convenient way)


Packing

Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group

Delivery time

Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days


Our Services

More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations.We have discount on shipping cost from our courier companies, such as FEDEX,DHL,TNT, UPS etc.
