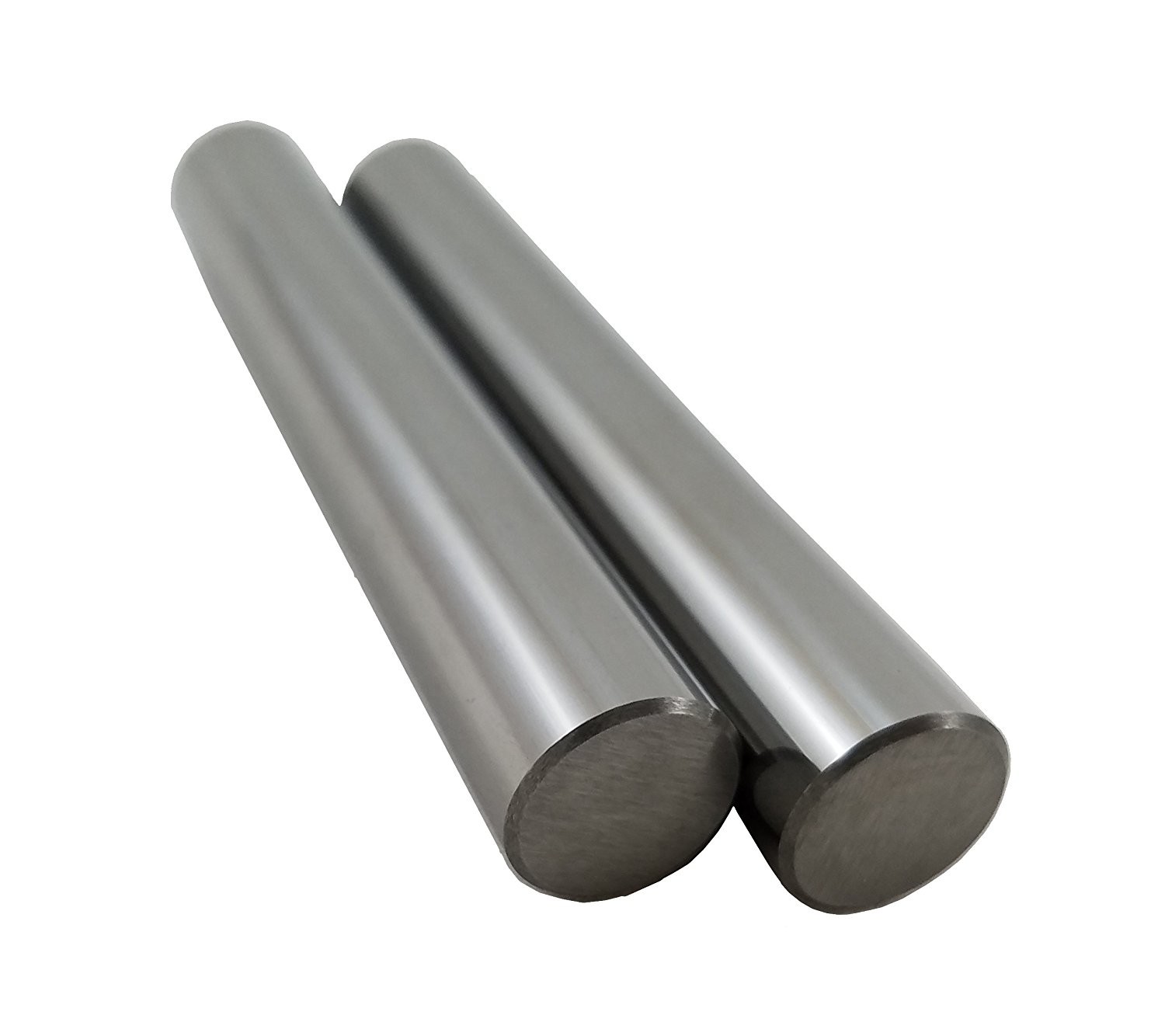

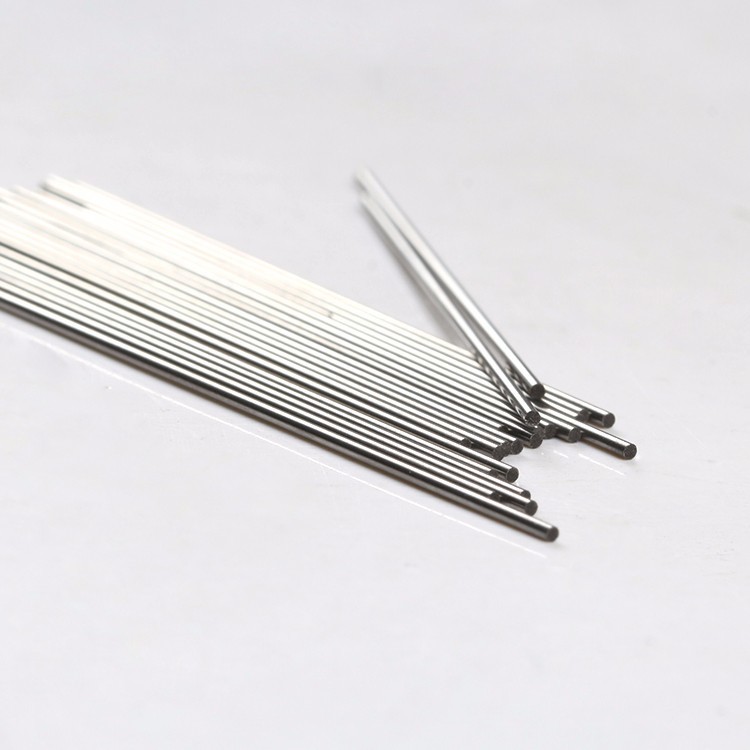

Name: CO12% Solid Carbide Rods Polishing Welding Round Bar Blank For Cutting Tool
Brand: Whitout Brand
SKU: As your requirements
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (128 reviews)
ISBN: 12282661

Features Gallery Product Description Request A Quote

Features

Basic Infomation

Place of Origin: Zhuzhou--Carbide City

Brand Name: Whitout Brand

Certification: ISO9001, SGS

Model Number: As your requirements

High Light:

CO12% Solid Carbide Rods

YL10.2 Solid Carbide Rods

Polishing Welding Round Bar

Payment & Shipping Terms

Packaging Details: 1PCS in a plastic tube, 10 PCS per group

Delivery Time: 15-25 work days

Payment Terms: T/T, PAYPAL, WESTERN UNION

Supply Ability: 50000pcs/Month

Specifications

SIZE: 3X330mm,25X330mm, 3x10x310mm, 25x100x310mm As Drawing

SURFACE: GRIDING OR BLANK

MATERIAL: TUNGSTEN CARBIDE

GRADE: YL10.2, H10F, K10, K20, K30, K40

ORIGINAL: ZHUZHOU, HUNAN

Gallery

Product Description

Products Description of Carbide Rod

1. WC grain size Range: 0.3-2um

2. Diameter Range: 2-30mm

3. Length Range: 10-335mm

4. Virgin or not: 100% Virgin

Solid Rods (Metric) 330mm

Unground		h6	L	Tol.	Unground		h6	L	Tol.
D	Tol.	h6	L	Tol.	D	Tol.	h6	L	Tol.
Ø2.2	+0.3/+0	2.0	330	+5/+0	Ø17.2	+0.3/+0	17	330	+5/+0
Ø3.2	+0.3/+0	3.0	330	+5/+0	Ø18.2	+0.3/+0	18	330	+5/+0
Ø4.2	+0.3/+0	4.0	330	+5/+0	Ø19.2	+0.3/+0	19	330	+5/+0
Ø5.2	+0.3/+0	5.0	330	+5/+0	Ø20.2	+0.3/+0	20	330	+5/+0
Ø6.2	+0.3/+0	6.0	330	+5/+0	Ø21.2	+0.3/+0	21	330	+5/+0
Ø7.2	+0.3/+0	7.0	330	+5/+0	Ø22.2	+0.3/+0	22	330	+5/+0
Ø8.2	+0.3/+0	8.0	330	+5/+0	Ø23.2	+0.3/+0	23	330	+5/+0
Ø9.2	+0.3/+0	9.0	330	+5/+0	Ø24.2	+0.3/+0	24	330	+5/+0
Ø10.2	+0.3/+0	10.0	330	+5/+0	Ø25.2	+0.3/+0	25	330	+5/+0
Ø11.2	+0.3/+0	11.0	330	+5/+0	Ø26.2	+0.3/+0	26	330	+5/+0
Ø12.2	+0.3/+0	12.0	330	+5/+0	Ø27.2	+0.3/+0	27	330	+5/+0
Ø13.2	+0.3/+0	13.0	330	+5/+0	Ø28.2	+0.3/+0	28	330	+5/+0
Ø14.2	+0.3/+0	14.0	330	+5/+0	Ø29.2	+0.3/+0	29	330	+5/+0
Ø15.2	+0.3/+0	15.0	330	+5/+0	Ø30.2	+0.3/+0	30	330	+5/+0
Ø16.2	+0.3/+0	16.0	330	+5/+0

Two straight coolant ducts rods, Reduced TK

Unground		Ground h6	TK	Tol.	D	Tol.	L	a
D	Tol.	Ground h6	TK	Tol.	D	Tol.	L	a
6.3	+0.3/0	6.0	1.5	0/-0.20	0.80	±0.15	330	0.15
7.3		7.0	1.5	0/-0.20	0.80			0.15
8.3		8.0	2.6	0/-0.30	1.00			0.15
9.3		9.0	2.6		1.00			0.20
10.3		10.0	2.6		1.00			0.20
11.3	+0.4/0	11.0	3.5		1.20			0.28
12.3		12.0	3.5		1.20			0.30
13.3		13.0	3.5		1.20			0.34
14.3		14.0	5.0		1.50			0.37
15.3		15.0	5.0		1.50			0.40
16.3		16.0	5.0		1.50	±0.20		0.40
17.3	+0.5/0	17.0	6.2		2.00			0.47
18.3		18.0	6.2		2.00			0.50
19.3		19.0	6.2		2.00			0.50
20.3		20.0	6.2	0/-0.40	2.00	±0.30		0.50

30° Two Helical Coolant Ducts(Type HE-30°)

Unground		Ground h6	L Tol. +5.0	TK	Tol.	D	Tol.	Pitch
D	Tol.	Ground h6	L Tol. +5.0	TK	Tol.	D	Tol.	Pitch
6.3	+0.4/+1.0	6.0	330	2.7	±0.2	0.80	±0.15	32.65
7.3		7.0	330	3.5		1.00		38.09
8.3		8.0	330	3.4		1.00		43.53
9.3		9.0	330	4.5	±0.3	1.40		48.97
10.3		10.0	330	4.8	±0.3	1.30		54.41
11.3	+0.4/+1.2	11.0	330	4.9	±0.4	1.40		59.86
12.3		12.0	330	6.3		1.70		65.30
13.3		13.0	330	6.1		1.75	±0.20	70.74
14.3		14.0	330	6.7		1.80		76.18
15.3		15.0	330	7.3		1.75		81.82
16.3	+0.4/+1.4	16.0	330	8.0		2.00		87.06
17.3		17.0	330	8.5		1.75	±0.25	92.50
18.3		18.0	330	9.0		2.30		97.95
19.3		19.0	330	9.7		2.00		103.39
20.3		20.0	330	10.0	±0.5	2.50		108.83

Payment

T/T, Western Union, Paypal (Choose your convenient way)

Shipment

FEDEX, TNT, DHL, UPS, EMS,etc.
The port is Beijing,Shanghai ,Guangzhou ,Shenzhen,etc.Any port in China. (Choose your convenient way)

Packing

Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group

Delivery time

Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days

Please feel free to contact me if you have any questions!
