1/2 Inch Shank Ball Nose Router Bit

1/2 Inch Shank Ball Nose Router Bit
1/2 Inch Shank Ball Nose Router Bit 1/2 Inch Shank Ball Nose Router Bit 1/2 Inch Shank Ball Nose Router Bit

Large Image :  1/2 Inch Shank Ball Nose Router Bit

Product Details:

Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD2.13/pcs
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Detailed Product Description
Material: Carbide Type: Standard Or Custom End Mill
Diameter: 1-20mm,3.175mm 4mm 6mm Overall Length: 50~150mm / Customized
Hrc: 45/55/60/65 Usage: General High Speed Cutting,CNC Milling Machine
Controlling Mode: CNC Tooling System
High Light:

cnc ball nose router bits

,

1/2 Ball Nose Router Bit

,

3.175mm ball nose router bit



1/2 Inch Shank Ball Round Nose Router Bit 1/2-1 Inch Head Diameter Woodworking Cutter



Product description
Material: Tungsten Carbide
Applications: Acrylic, PVC, PE, Nylon, Aluminum composite panel, cork wood, copper, aluminum, ferrum, stainless, steel
Features: high-precision grinding, small blade tip chip removal, mostly used for two-dimensional carving and relief.
Shank diameter: 3.175MM
Angle: 10-90 degrees
Tip: 0.1-2.0
Tip: 0.1-2.0

Main Date


tem NO
2T 2A SHK(MM) OVL(MM)
sy-3.0802 0.2 8 3.175 40
sy-3.1501 0.1 15 3.175 40
sy-3.2001 0.1 20 3.175 40
sy-3.2501 0.1 25 3.175 40
sy-3.3001 0.1 30 3.175 40
sy-3.4001 0.1 40 3.175 40
sy-3.4502 0.2 45 3.175 40
sy-3.5001 0.1 50 3.175 40
sy-3.6002 0.2 60 3.175 40
sy-3.9002 0.2 90 3.175 40
sy-62002 0.2 20 6 40
sy-62502 0.2 25 6 40
sy-63002 0.2 30 6 40
sy-64002 0.2 40 6 40
sy-64502 0.2 45 6 40
YJ-66002 0.2 60 6 40
YJ-69002 0.2 90 6 40
YJ-612002 0.2 120 6 40
YJ-615002 0.2 150 6 40


Product Show:

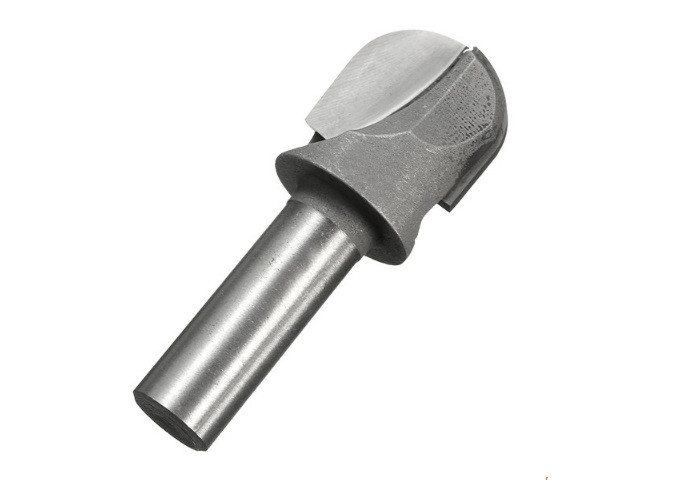

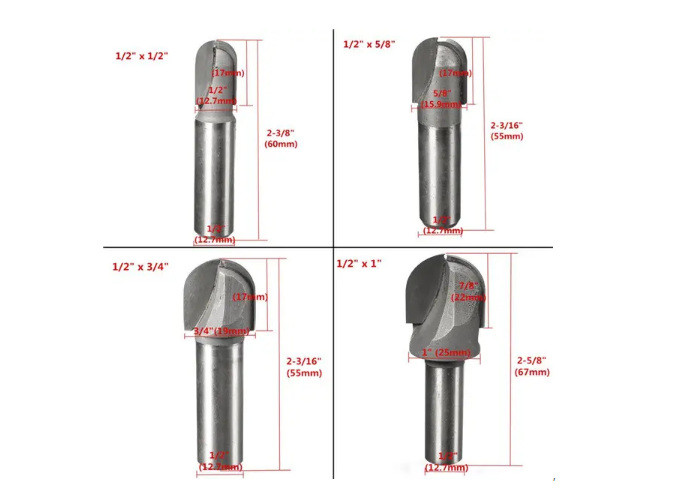

1/2 Inch Shank Ball Nose Router Bit 0

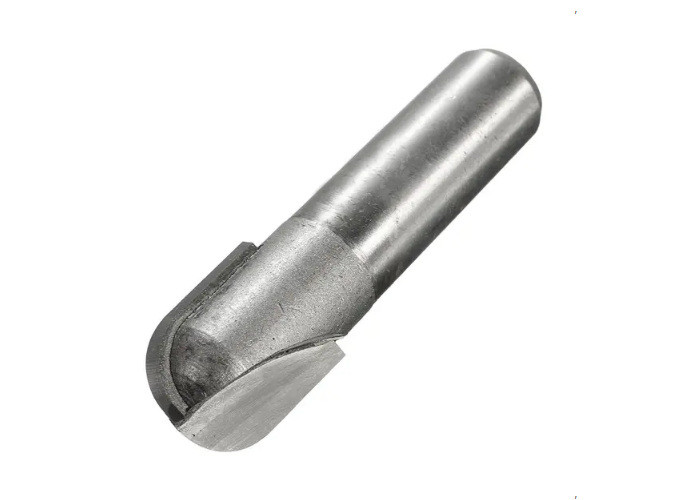

1/2 Inch Shank Ball Nose Router Bit 1

More information, please kindly contact us.
