HRC45 - HRC60 Solid Carbide End Mill 2x5X50 2 Flutes For Cutter
Introduction of the carbide materials of the End mill :
Carbide Grade | Technical Details of tungsten carbide rod |
10U | Co: 10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um |
12U | Co: 12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um |
K40 | Co: 12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um |
K44 | Co: 12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um |
The materials to be cut :
Carbide Grade | HRC of End mill | Materials to be cut |
10U | HRC45-50 | For cutting the materials under HRC35 |
12U | HRC55-58 | For cutting the materials under HRC50 |
K40 | HRC60-62 | For cutting the materials under HRC55 |
K44 | HRC65-70 |
For cutting the materials under HRC63 |
Corresponding Coating :
Carbide Grade | HRC of End mill | Corresponding Coating |
10U | HRC45-50 | AlTiN |
12U | HRC55-58 | TiAlN |
K40 | HRC60-62 | TiSlN |
K44 | HRC65-70 | Nano |
Introduction of carbide materials of the End mill :
AlTiN | TiAlN | TiSlN | Nano | |
Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |
Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.

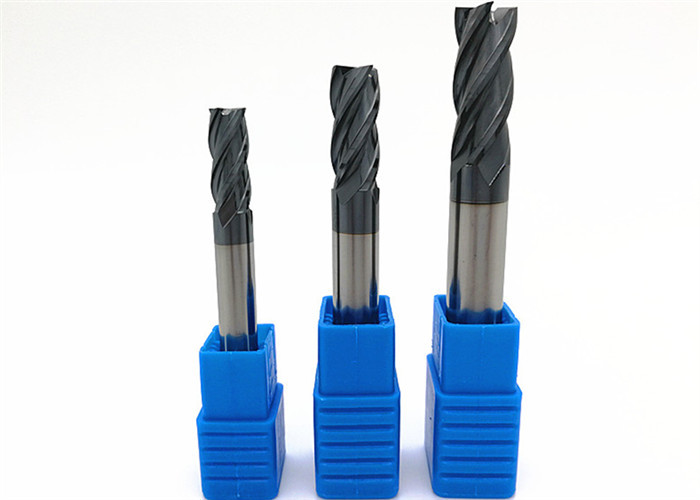

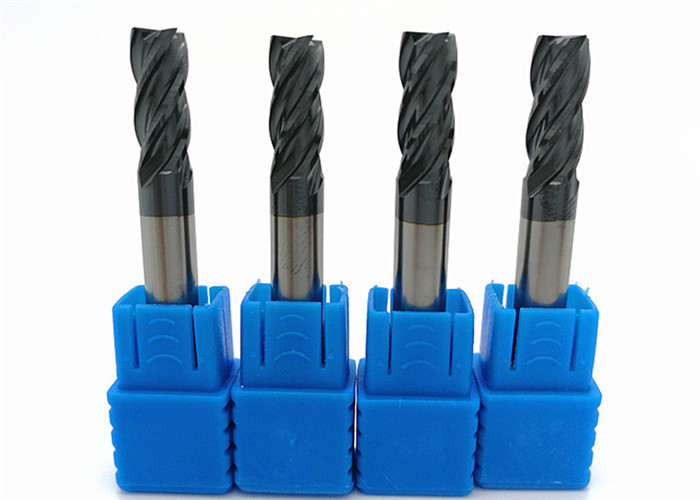

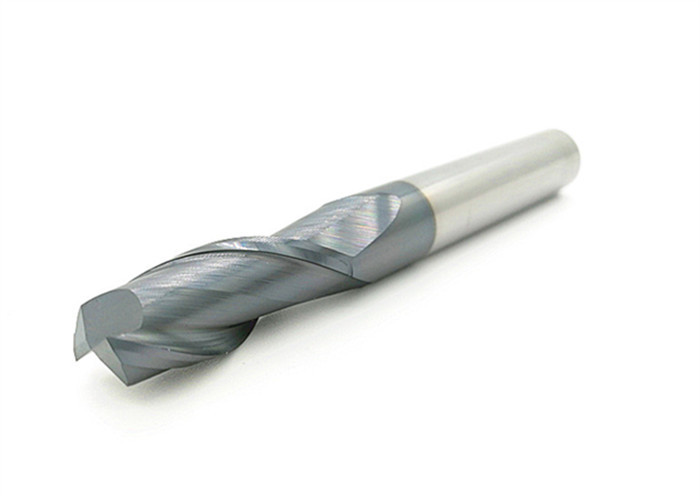

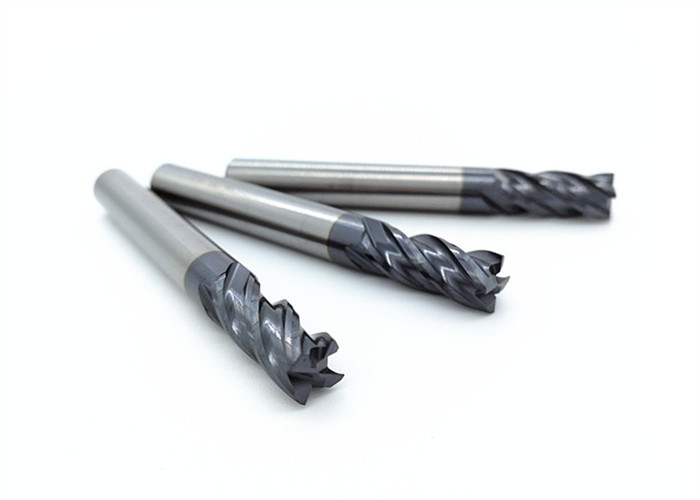

Products Pictures
