HRC 55 CNC End Mill Solid Extra Long Carbide End Mills ISO Certification
10pcs
MOQ
negotiable
Price
HRC 55 CNC End Mill Solid Extra Long Carbide End Mills ISO Certification
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

HRC 55 CNC End Mill

,

Altin CNC End Mill

,

ISO extra long carbide end mills

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Features: Good Wear Resistance, High Precision
Cutting Edge: Flat,Ball Nose, Corner Radius,Aluminum Etc
Flutes: Micro,1,2,3,4,6 Etc
Coating: Altin,Tiain,Tisin,Nano Etc
Hardness: HRC45-50,HRC55-58,HRC60-62,HRC65-70
Shank Type: Straight Shank, Groove Shank
Helix Angle: 30°,35°,45°,60°
Product Description

1. Products Description
Micro grain raw material
Grain size: 0.4-0.6um
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30/45
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7

HRC45 HRC55 HRC60 HRC65
Grain Size:0.6um
Co:10 %
Flexural strength:3350N/mm2
Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2
Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2
Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2

2.Application

Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Grinding equipment: WALTER, ANCA, ROLLOMATIC
Testing equipment: ZOLLER

3.Coating



Coating

Color

Coating Temperature

Thickness (um)

HV

Application Temperature

Friction coefficient

TiAlN
Purple-Gray <600°C 3-5 3300 800 °C 0.3
AlTiN Black <600 °C 3-5 3500 900 °C 0.3
TiSiN Copper <600 °C 3-5 3500 1500 °C 0.4
NaNo Blue <600 °C 3-5 3800 1200 °C 0.4
CrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3



4.Packing

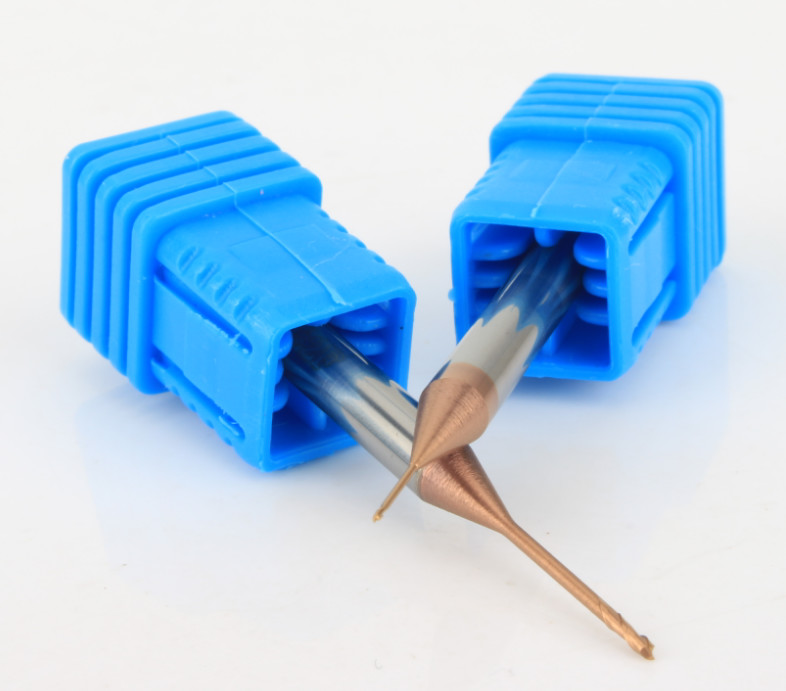

Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group



5.Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days



6.Standard Sizes:

Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100
