Carbide 8mm Ball Nose Cutter Roughing Milling Cutters HSS Lathe Tool Bits
10pcs
MOQ
negotiable
Price
Carbide 8mm Ball Nose Cutter Roughing Milling Cutters HSS Lathe Tool Bits
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

8mm ball nose cutter

,

HSS Lathe Tool Bits

,

Carbide Roughing Milling Cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Name: Solid Carbide End Mill
Model NO: Roughing End Mill
Material: Carbide, Tungsten Carbide
Diameter: 1-25mm
Length: 50-150mm, Customized
Helix Angel: 30° /35°/ 45°
Application: Wood/ Aluminium/metal
Testing Equipment: ZOLLER
Trademark: OEM
Packing: Plastic
Product Description



Carbide 8mm Roughing End Mills for Milling Rougher Lathe CNC Tool Bits





Description:
steel with coarse skin milling cutter, the new 12 u material, bronze coating, tungsten steel milling cutter for milling machine.

Specification:

Model
D10x25x10x75
D8x20x8x60
D6x15x6x50
D4x10x4x50
Spiral angle 35 °
Hardness 55 °
Series steel rough skin milling cutter
Material Hard Alloy Steel
Number of slots 4
Coating AlTiN Nano Coated







- Quality materials, durable, precision processing, efficient work, humanized design.

- Spiral design, large capacity smooth chip removal, prevent sticking and reduce heat.
- Cemented carbide has good pressure resistance, good toughness, high hardness and good wear resistance.
- Round smooth handles with precise chamfering are easier.

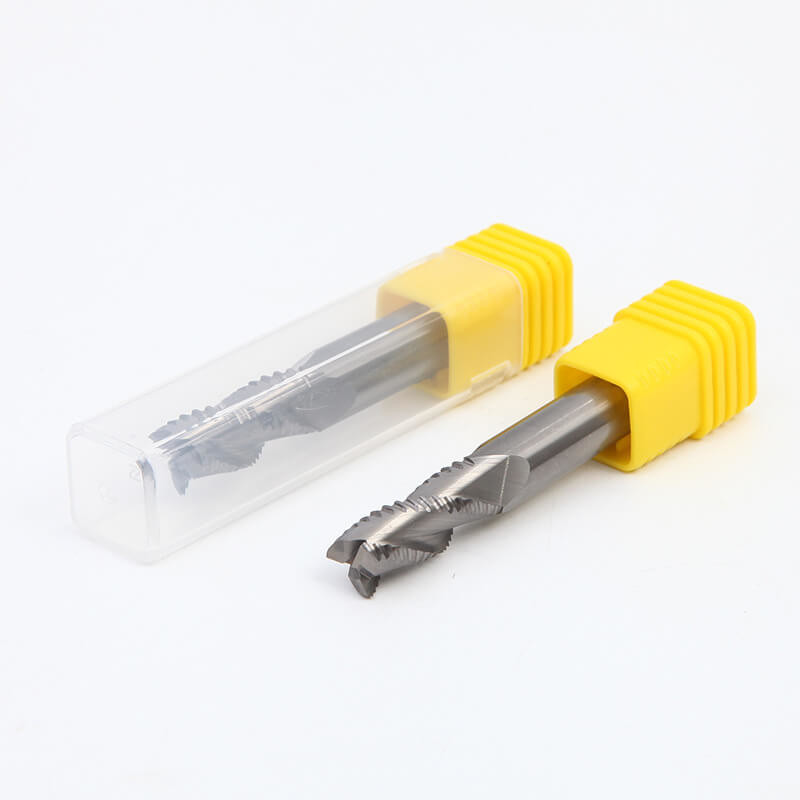

Carbide 8mm Ball Nose Cutter Roughing Milling Cutters HSS Lathe Tool Bits 0





Introduction of the carbide materials of the End mill



Carbide Grade Technical Details of tungsten carbide rod
10U CO : 10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U CO : 12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 CO : 12% WC 84% rare element: 4% HRA: 93° Grain Size: 0.4um
K44 CO : 12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um





The materials to be cut



Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63





Corresponding Coating



Carbide Grade HRC of End mill Corresponding Coating
10U HRC45-50 AITin
12U HRC55-58 TiAIN
K40 HRC60-62 TIXCO
K44 HRC65-70 NACO



Coating Sheet

  AlTiN TiAIN TiSiN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue






Size range:

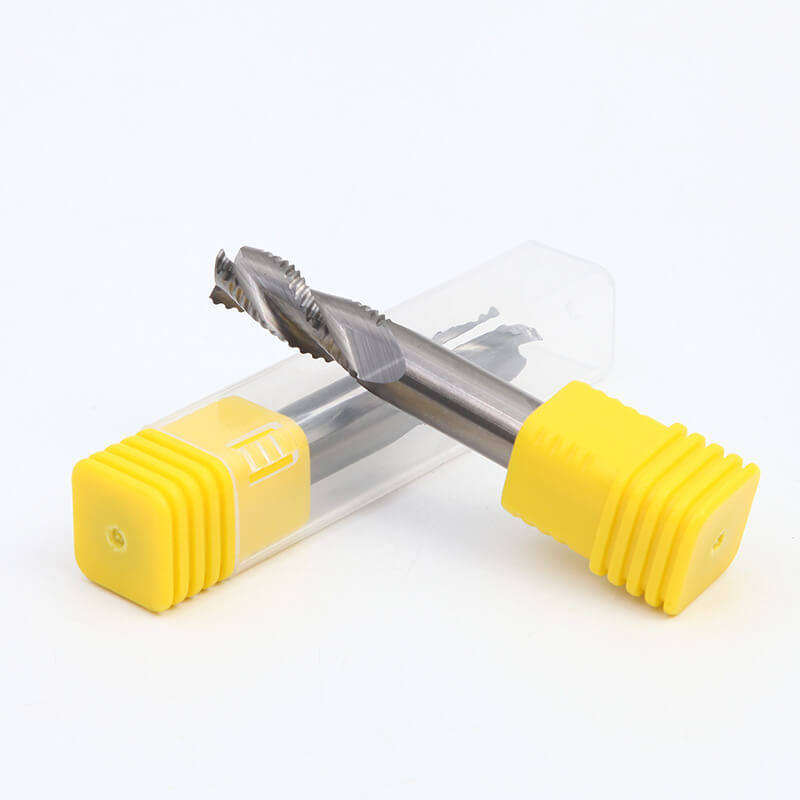

Carbide 8mm Ball Nose Cutter Roughing Milling Cutters HSS Lathe Tool Bits 1

Code No.



Diamter

d

Cutting length

l

Total length

L

Shank

D

Flutes

Z


4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4
