HRC45 Carbide Roughing End Mills Tialn Coated CNC Router End Mill Bits
10pcs
MOQ
negotiable
Price
HRC45 Carbide Roughing End Mills Tialn Coated CNC Router End Mill Bits
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Tialn Carbide Roughing End Mills

,

20mm Carbide Roughing End Mills

,

HRC45 CNC Router End Mill Bits

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Chemical Composition: 6%-12% Co-Wc
Processing Precision: 0.02mm
Flute: 3 Flutes For Aluminum, 4 Flutes For Steel
Helix Angel: 35 Degree
Diameter: 6-20mm, Customized
Length: 50-150mm, Customized
Product Description

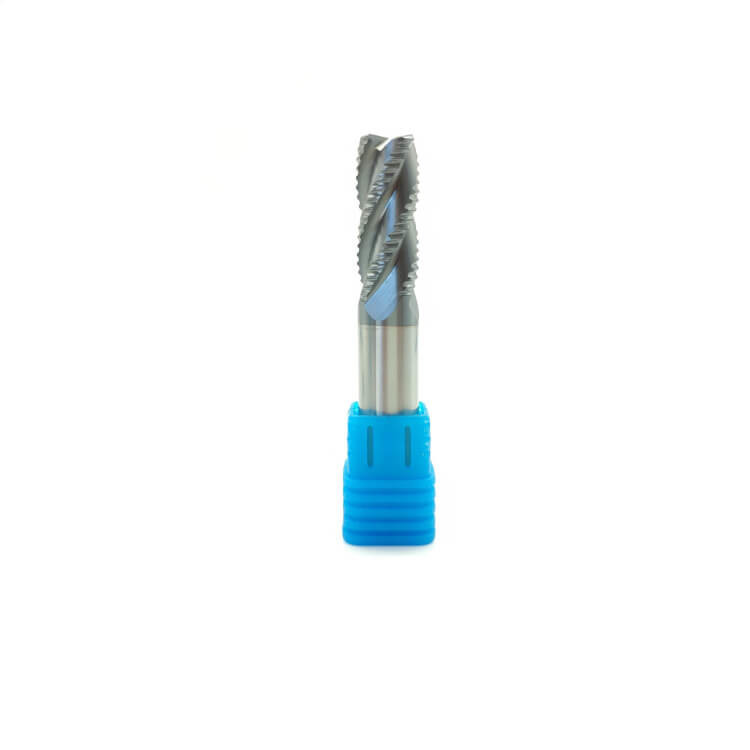

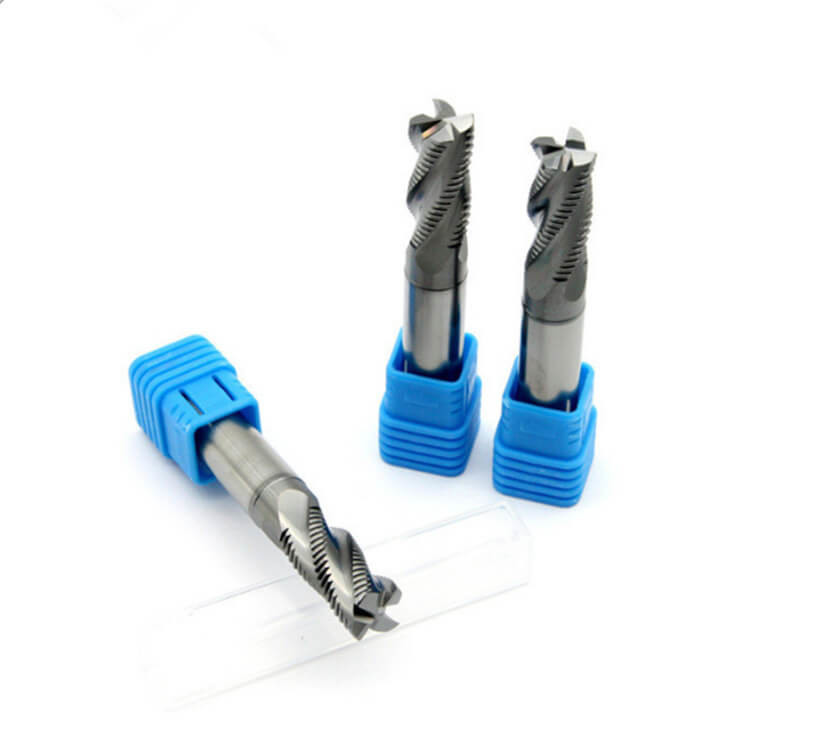

Cutting Tools Solid Carbide roughing End Mills, HRC45 with Tialn Coated, 4 Flutes



HRC45 Carbide Roughing End Mills Tialn Coated CNC Router End Mill Bits 0



  • Type: Roughing End Mills
  • Shank Diameter:1/2" / Cutting Diameter: 1/2"
  • Flutes length:1-1/4" / Overall Length: 3"
  • Work Material Hardness: HRC45 / Helix: 35 / Number of Flute: 4F
  • Coating: TiAIN / Material: Tungsten carbide / Packaging: Plastic box



Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100





HRC45 Carbide Roughing End Mills Tialn Coated CNC Router End Mill Bits 1



HRC45 Carbide Roughing End Mills Tialn Coated CNC Router End Mill Bits 2



Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " WALTER" CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets "Walter HP" from Germany, specializing in manufacture large diameter tools;
1 set "Walter Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.

1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.
