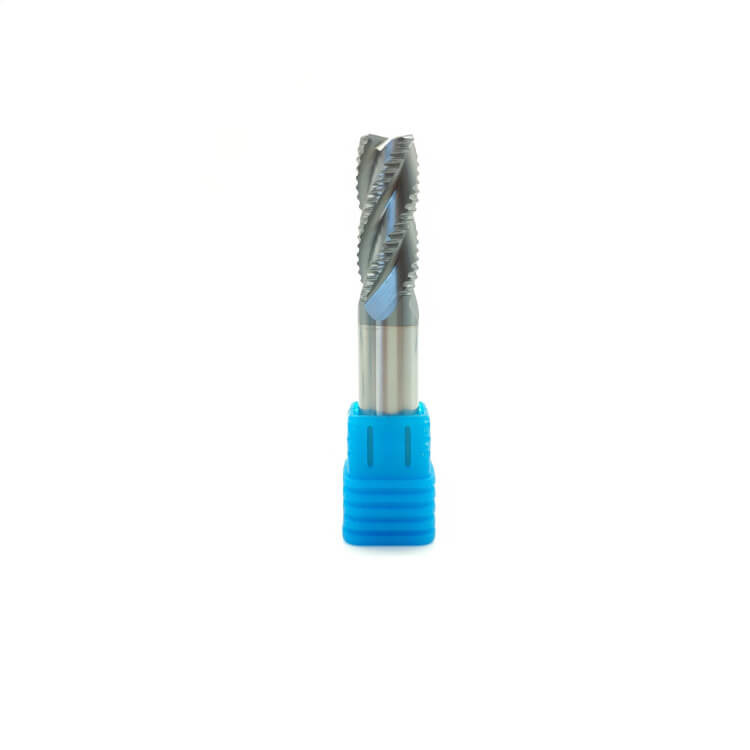

6mm Carbide Roughing End Mills 4 Flutes HRC55 AlTiN Coating Milling Cutter
10pcs
MOQ
negotiable
Price
6mm Carbide Roughing End Mills 4 Flutes HRC55 AlTiN Coating Milling Cutter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

HRC55 Carbide Roughing End Mills

,

Carbide Roughing End Mills 4 Flutes

,

6mm carbide end mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 50000pcs/Month
Specifications
Material: Tungsten Carbide
Coating Color: Black/copper/blue Nano
Diameter: 6-20mm, Customized
Flute: 3 Flutes For Aluminum, 4 Flutes For Metal
Coating: Altin, Tialn, OEM
Helix Angel: 35 Degree
Product Description

6mm-20mm Carbide Roughing End Mill Cutter 4 Flutes HRC55 AlTiN Coating Milling Cutter







Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-30 mm
Diameter of rods 4-30 mm
Length 50-150 mm



HRC45 HRC55 HRC60 HRC65
Grain Size: 0.6um
Co: 10 %
Flexural strength: 3350N/mm2
Grain Size: 0.6um
Co: 10 %
Flexural strength: 4000N/mm2
Grain Size: 0.5um
Co: 12 %
Flexural strength: 4300N/mm2
Grain Size: 0.4um
Co: 12.5 %
Flexural strength: 4300N/mm2



Grinding equipment: WALTER, ANCA, ROLLOMATIC
Testing equipment: ZOLLER


Coating

Coating Color Coating Temperature Thickness (um) HV Application Temperature Friction coefficient
TiAlN Purple-Gray <600°C 3-5 3300 800 °C 0.3
AiTiN Black <600°C 3-5 3500 900 °C 0.3
TiXco Copper <600°C 3-5 3500 1500 °C 0.4
NaNo Blue <600°C 3-5 3800 1200 °C 0.4
AiCrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3



Standard Sizes:

Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100



6mm Carbide Roughing End Mills 4 Flutes HRC55 AlTiN Coating Milling Cutter 0
