Violet Helical Carbide Corner Radius End Mill 2 Flutes 4mm
10pcs
MOQ
negotiable
Price
Violet Helical Carbide Corner Radius End Mill 2 Flutes 4mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Violet Carbide Corner Radius End Mill

,

4mm Carbide Corner Radius End Mill

,

helical carbide end mills

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Workpiece Material: Original Steel , Cast Iron , Aluminum , Copper , Plastic , SS , HSS , Etc.
Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Application: Milling Machining
Processing Type: Metal Cutting Tools
Machine Type: WALTER ROLLOMATIC ANCA
Testing Equipment: ZOLLER
Helix Angle: 35°, 45°
Product Description

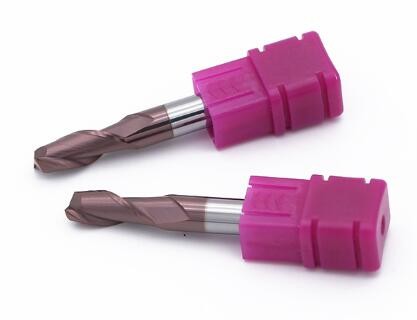

Violet Color Helical Solid Carbide Corner Radius End Mill with 2 Flutes 4mm Dia

Violet Helical Carbide Corner Radius End Mill 2 Flutes 4mm 0



Item AlTiN TiAiN TiSiN nAcO
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp( ° ) 900 800 1000 1200
Friction 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue

improve tool life, reduce the coefficient of friction.

Our advantages:

1.Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness,high-wearing feature.

2.Non-standard can be customized according to customer's requirements

3.We have produce ability to satisfy your orders,another manufacturing bases will becompeleted in the near month.

4.12years professional experience.

5. Strict quality checking.

Check each piece. Guarantee the tolerance -0.02mm

Exact helix angle and finished surface.

Goods pass ISO9001





Standard Sizes:

Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100
