Straight Shank Carbide Solid Ball Nose End Mills Milling Customized Clients
10pcs
MOQ
negotiable
Price
Straight Shank Carbide Solid Ball Nose End Mills Milling  Customized Clients
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

indexable ball nose end mill

,

ball nose end mill cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Size And Shape: Customized By Clients
Helix Angle: 30,35,45, Etc
Flutes Number: Micro,1,2,3,4,,5,6etc
Shank Type: Straight Shank, Groove Shank Etc
Grade: HRC45,HRC50,HRC60 Etc
Characteristics: High Hardness, High Precision Etc.
Coating: ALTIN,TIALN,TISIN,NANO Etc
Shape Of Cuttiing Edge: Flat,ballnose, Corner Radius Etc
Product Description

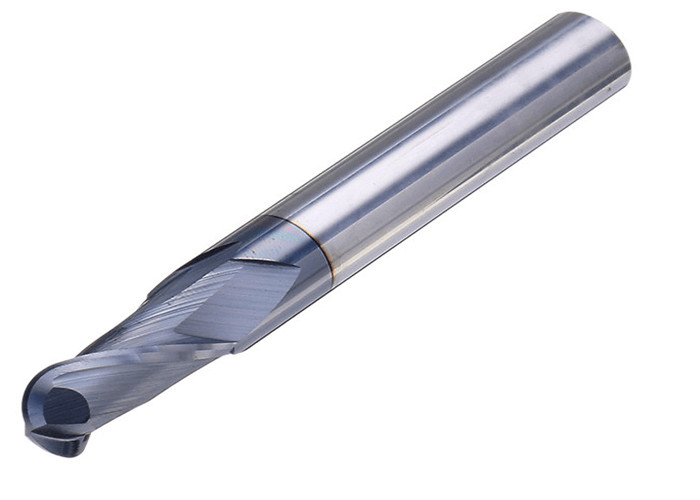

Carbide Solid Ball Nose End Mills Milling CNC Machines Use Tools



1. Products Description



Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC70
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7

HRC45 HRC55 HRC60 HRC65
Grain Size: 0.6um
Co: 10 %
Flexural strength: 3350N/mm2
Grain Size: 0.6um
Co: 10 %
Flexural strength: 4000N/mm2
Grain Size: 0.5um
Co: 12 %
Flexural strength: 4300N/mm2
Grain Size: 0.4um
Co: 12.5 %
Flexural strength: 4300N/mm2


2. Application


Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Grinding equipment: WALTER, ANCA, ROLLOMATIC
Testing equipment: ZOLLER

3. Coating



Coating Color Coating Temperature Thickness (um) HV Application Temperature Friction coefficient
TiAlN Purple-Gray <600°C 3-5 3300 800 °C 0.3
AiTiN Black <600°C 3-5 3500 900 °C 0.3
TiXco Copper <600°C 3-5 3500 1500 °C 0.4
NaNo Blue <600°C 3-5 3800 1200 °C 0.4
AiCrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3



4. Payment


T/T, Western Union, Paypal (Choose your convenient way)


5. Shipment



FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)



6. Package details



(1) One plastic pipe packs one piece, 10 pieces per group.
(2) Use air bubble paper to encase the plastic pipes.
(3) Put goods encased with air bubble paper into the carton box.

(4) Laser print brand name on cutter shank, 1 PCS in a plastic tube, 10 PCS per group.



7.Our Services


More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.



8. Why Choose Grewin Tools?



(1) The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products

(2) High precision CNC machines, high standard and strict inspection

(3) Strong R&D center and QC teams meet your special demands

(4) The company has passed ISO 9001: 2008 quality system

(5) Possesses advanced production equipments, complete testing instruments
(6) Fast delivery time and Convenient Transportations
(7) More than 1000 products are available
(8) For your suggestions or complaints, We will handle them Soonest

(9)Nonstandard products are available according to customer's drawing or customer's sample.

(10)We olso design and manufacture products,according to the request of customer's.

(11)If you have any questions,please cantact me anytime,JINOO will warmly welcome your inquiry.
