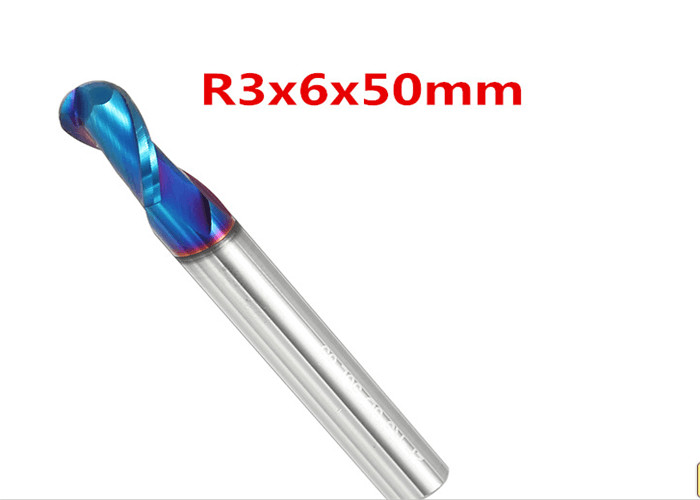

HRC50 2 Flute Ball Nose End Mill , 6mm Ball Nose Cutter TISIN Coating
10pcs
MOQ
negotiable
Price
HRC50 2 Flute Ball Nose End Mill , 6mm Ball Nose Cutter TISIN Coating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

indexable ball nose end mill

,

ball nose end mill cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Helix Angle: 30,35,45, Etc
Flutes Number: Micro,1,2,3,4,,5,6etc
Shank Type: Straight Shank, Groove Shank Etc
Grade: HRC45,HRC50,HRC60 Etc
Characteristics: High Hardness, High Precision Etc.
Coating: ALTIN,TIALN,TISIN,NANO Etc
Shape Of Cuttiing Edge: Flat,ballnose, Corner Radius Etc
Origin Place: China Mainland,Zhuzhou City
Product Description

Ball Nose End Mills Carbide Solid Milling CNC Machines Use Tools



1. Products Description



Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC70
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7

HRC45 HRC55 HRC60 HRC65
Grain Size: 0.6um
Co: 10 %
Flexural strength: 3350N/mm2
Grain Size: 0.6um
Co: 10 %
Flexural strength: 4000N/mm2
Grain Size: 0.5um
Co: 12 %
Flexural strength: 4300N/mm2
Grain Size: 0.4um
Co: 12.5 %
Flexural strength: 4300N/mm2


2. Application


Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Grinding equipment: WALTER, ANCA, ROLLOMATIC
Testing equipment: ZOLLER



3. Excellent Raw Material and Coating Type



TYPE Material MG grain size CO Flexural strength
HRC45 YG10X 0.7um 10% 3320N/mm2
HRC55 YL10.2 &WF25 0.6um 10% 4000N/mm2
HRC60 K44 &K40 0.5um 12% 4300N/mm2
HRC65 H10F 0.5um 10% 4300N/mm2



Coating Type Hardness(HV) Thickness(UM) Oxidation Temp.() Color Friction Coefficient
AlTin 3200 2.5-3 900 Black 0.3
Tialn 2800 2.5-3 800 Violet 0.3
TiSin 3600 3 1000 Copper 0.45
Naco 42(GPA) 3 1200 Bule 0.4

4. Payment


T/T, Western Union, Paypal (Choose your convenient way)


5. Shipment



FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)



6. Delivery time



Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days



7.Our Services


More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.



8. Why Choose Grewin Tools?



(1) The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products

(2) High precision CNC machines, high standard and strict inspection

(3) Strong R&D center and QC teams meet your special demands

(4) The company has passed ISO 9001: 2008 quality system

(5) Possesses advanced production equipments, complete testing instruments
(6) Fast delivery time and Convenient Transportations
(7) More than 1000 products are available
(8) For your suggestions or complaints, We will handle them Soonest

(9)Nonstandard products are available according to customer's drawing or customer's sample.

(10)We olso design and manufacture products,according to the request of customer's.

(11)If you have any questions,please cantact me anytime,JINOO will warmly welcome your inquiry.





HRC50 2 Flute Ball Nose End Mill , 6mm Ball Nose Cutter TISIN Coating 0
