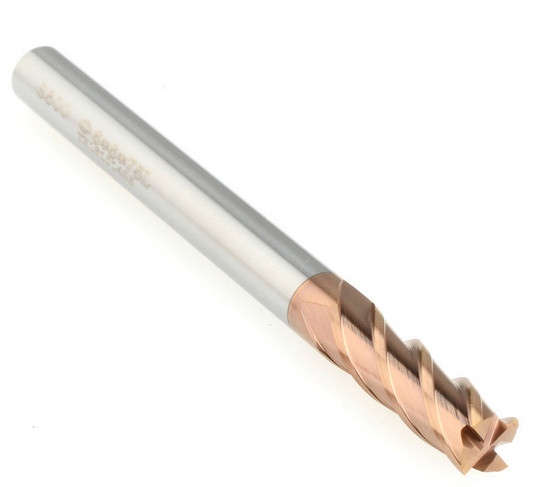

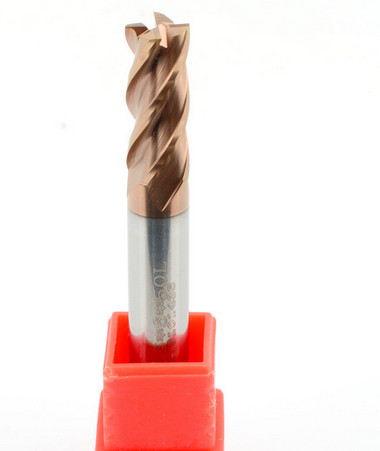

HRC65 Square Milling Machine End Mills / CNC Tungsten Carbide Milling Cutters
10pcs
MOQ
negotiable
Price
HRC65 Square Milling Machine End Mills / CNC Tungsten Carbide Milling Cutters
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

HRC65 Milling Machine End Mills

,

20mm Milling Machine End Mills

,

CNC Tungsten Carbide Milling Cutters

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Chemical Composition: 8% Co-Wc
Material: Tungsten Cobalt Alloy
Model NO: Roughing End Mill
Applicaiton: For Aluminium Cutting
Diameter: 6-20mm, Customized
Length: 50-150mm, Customized
Helix Angel: 45 Degree
Flute No.: 3 Flutes
Product Description

HRC65 Carbide Square End Mill Tungsten Carbide End Mill For CNC Machine





Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " WALTER" CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets "Walter HP" from Germany, specializing in manufacture large diameter tools;
1 set "Walter Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.

1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.





Introduction of the carbide materials of the End mill



Carbide Grade Technical Details of tungsten carbide rod
10U CO : 10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U CO : 12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 CO : 12% WC 84% rare element: 4% HRA: 93° Grain Size: 0.4um
K44 CO : 12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um





The materials to be cut



Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63





Corresponding Coating



Carbide Grade HRC of End mill Corresponding Coating
10U HRC45-50 AITin
12U HRC55-58 TiAIN
K40 HRC60-62 TIXCO
K44 HRC65-70 NACO



Coating Sheet for other coated end mills

  AlTiN TiAIN TiSiN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue
