Tungsten Carbide Square End Mill Cutter Wood Working Tool
10pcs
MOQ
negotiable
Price
Tungsten Carbide Square End Mill Cutter Wood Working Tool
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

square end drill bit

,

square end mill cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Diameter: 6-20mm, Customized
Length: 50-150mm, Customized
Controlling Mode: CNC Tooling System
Suitable For: Wood/aluminium/metal
Helix Angle: 30° /35°/ 45°
Name: Solid Carbide End Mill; Carbide Rough End Mill
Product Description

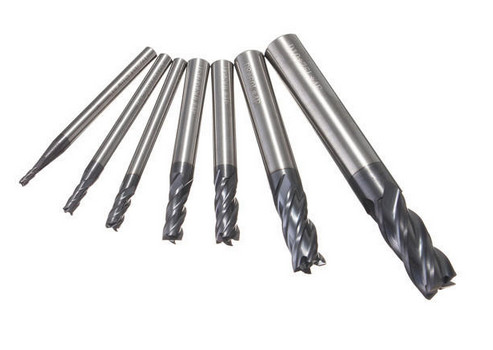

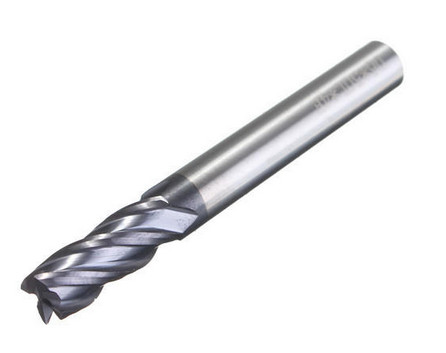

12mm 4 Flute Tungsten Carbide Square End Mill Cutter Wood Working Tool



1. Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations.We have discount on shipping cost from our courier companies, such as FEDEX,DHL,TNT, UPS etc.



2. Coating


Coating

Color

Coating Temperature

Thickness (um)

HV

Application Temperature

Friction coefficient

TiAlN
Purple-Gray <600°C 3-5 3300 800 °C 0.3
AlTiN Black <600 °C 3-5 3500 900 °C 0.3
TiSiN Copper <600 °C 3-5 3500 1500 °C 0.4
NaNo Blue <600 °C 3-5 3800 1200 °C 0.4
CrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3



3. Packing
Brand Laser printed on cutter shank, 1 pcs in a plastic tube, 10 pcs a group


4. Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days

Features:
- Quality materials, durable, precision processing, efficient work, humanized design.

- Spiral design, large capacity smooth chip removal, prevent sticking and reduce heat.
- Cemented carbide has good pressure resistance, good toughness, high hardness and good wear resistance.
- Round smooth handles with precise chamfering are easier.


Package Included:
1pc x Milling Cutter





5. Standard Sizes:



Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100



Introduction of Coating

  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper

Blue









Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " " CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets " HP" from Germany, specializing in manufacture large diameter tools;
1 set " Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.

1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.
