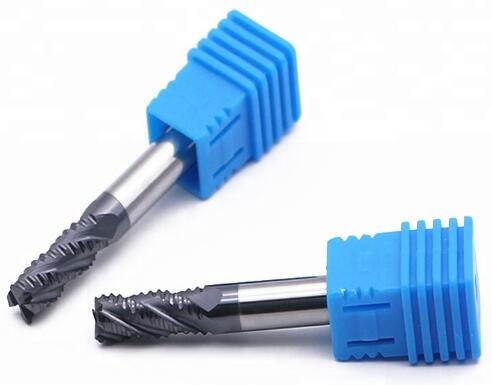

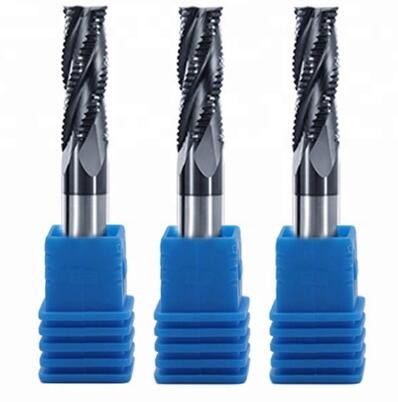

CNC Thread Tool Cabide Roughing End Mill Cutter with 4 Flutes HRC55
HRC choice: HRC38-45, HRC55-58
Coating choice: AITiN, AITiCrSIN
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.
|
Code No.
|
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 4GW5-0103050 | 1 | 3 | 50 | 4 | 4 |
| 4GW5-0205050 | 2 | 5 | 50 | 4 | 4 |
| 4GW5-0308050 | 3 | 8 | 50 | 4 | 4 |
| 4GW5-04010050 | 4 | 10 | 50 | 4 | 4 |
| 4GW5-06015050 | 6 | 15 | 50 | 6 | 4 |
| 4GW5-08020060 | 8 | 20 | 60 | 8 | 4 |
| 4GW5-01020075 | 10 | 20 | 75 | 10 | 4 |
| 4GW5-012030075 | 12 | 30 | 75 | 12 | 4 |
| 4GW5-014040100 | 14 | 40 | 100 | 14 | 4 |
| 4GW5-016040100 | 16 | 40 | 100 | 16 | 4 |
Payment
T/T, Western Union, Paypal (Choose your convenient way)
Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)
Packing
Laser print brand name on cutter shank, 1 PCS in a plastic tube, 10 PCS per group
Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days
Company Information
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
Waiting for your contact!
Standard Sizes:
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
| 25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |
